Adhesive Joint Principles

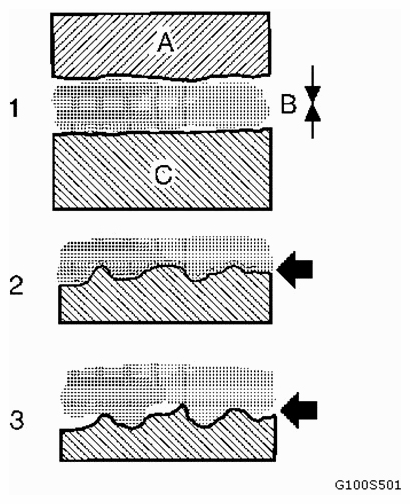

| Callout | Description | |
|---|---|---|
| 1 | Depiction of adhesive forces | |
| A chain is formed from: | ||
| A | Adhesion of the adhesive to the top plate | |
| B | Cohesion within the adhesive layer | |
| C | Adhesion of the adhesive to the bottom plate | |
| 2 | Depiction of good bonding | |
| Good coating of assembly components with adhesive | ||
| 3 | Depiction of poor bonding | |
| Poor adhesive coating on assembly component surfaces (for example, due to poor preparation or contamination) | ||
