Home › Saturn › 1992 › SC Automatic › Repair and Diagnosis (Single Page) › Transmission › Automatic Trans › Diagnosis › Code Charts › Code 46 - Selector Switch Incorrect Data › Notes

Code 46 - Selector Switch Incorrect Data: Notes

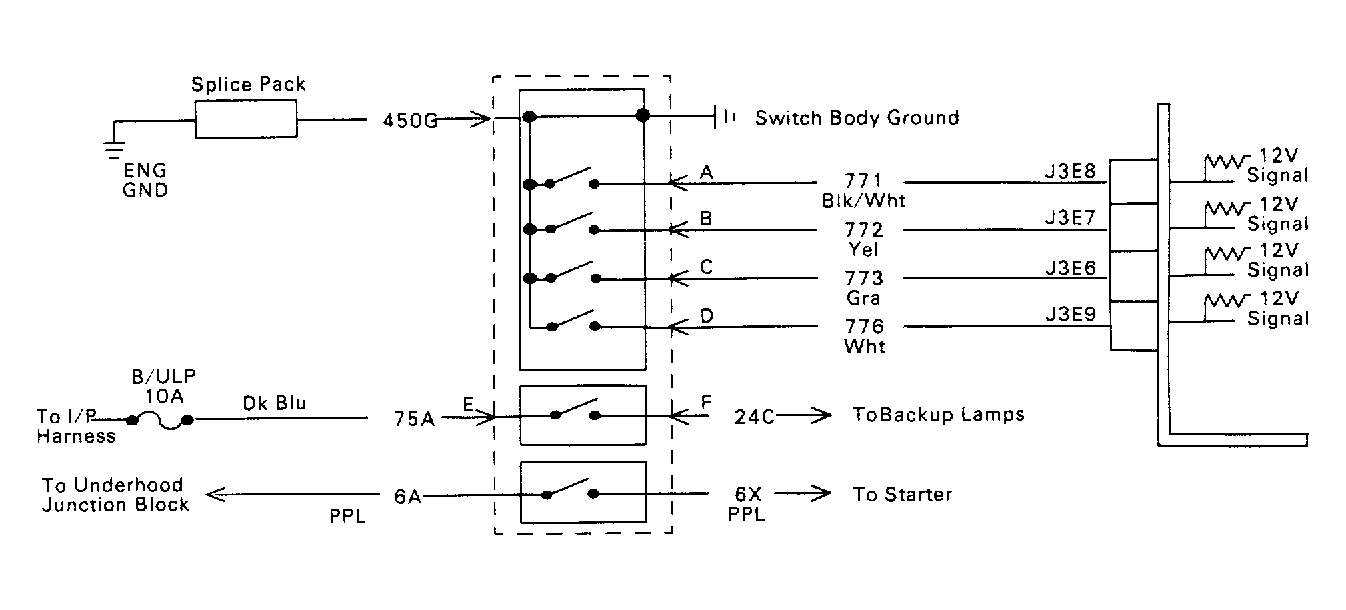

Fig 1: Code 46 Circuit Diagram
G92I14751Courtesy of GENERAL MOTORS CORP.
