Diagnostic Aids

Problem is intermittent at this time. Check all terminals, connections and harness for possible loose or corroded condition.

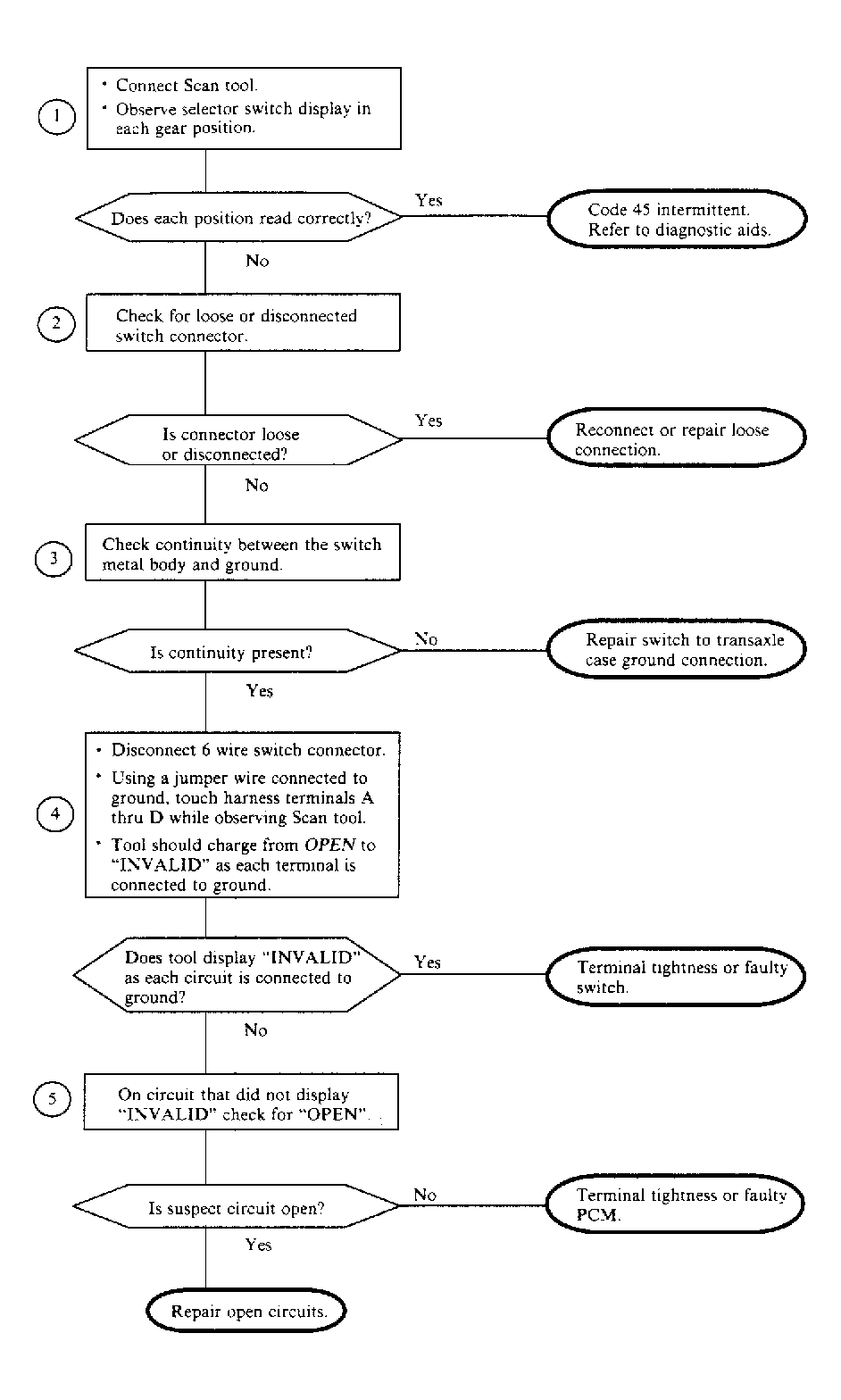

Fig 1: Code 45 Troubleshooting Diagnostic Diagram
G92J14752Courtesy of GENERAL MOTORS CORP.
