Diagnostic Aids

Problem is intermittent at this time. Check all terminals, connections and harness for possible loose or corroded condition. PCM will set code 36 if sensor or related circuits are open, shorted or grounded.

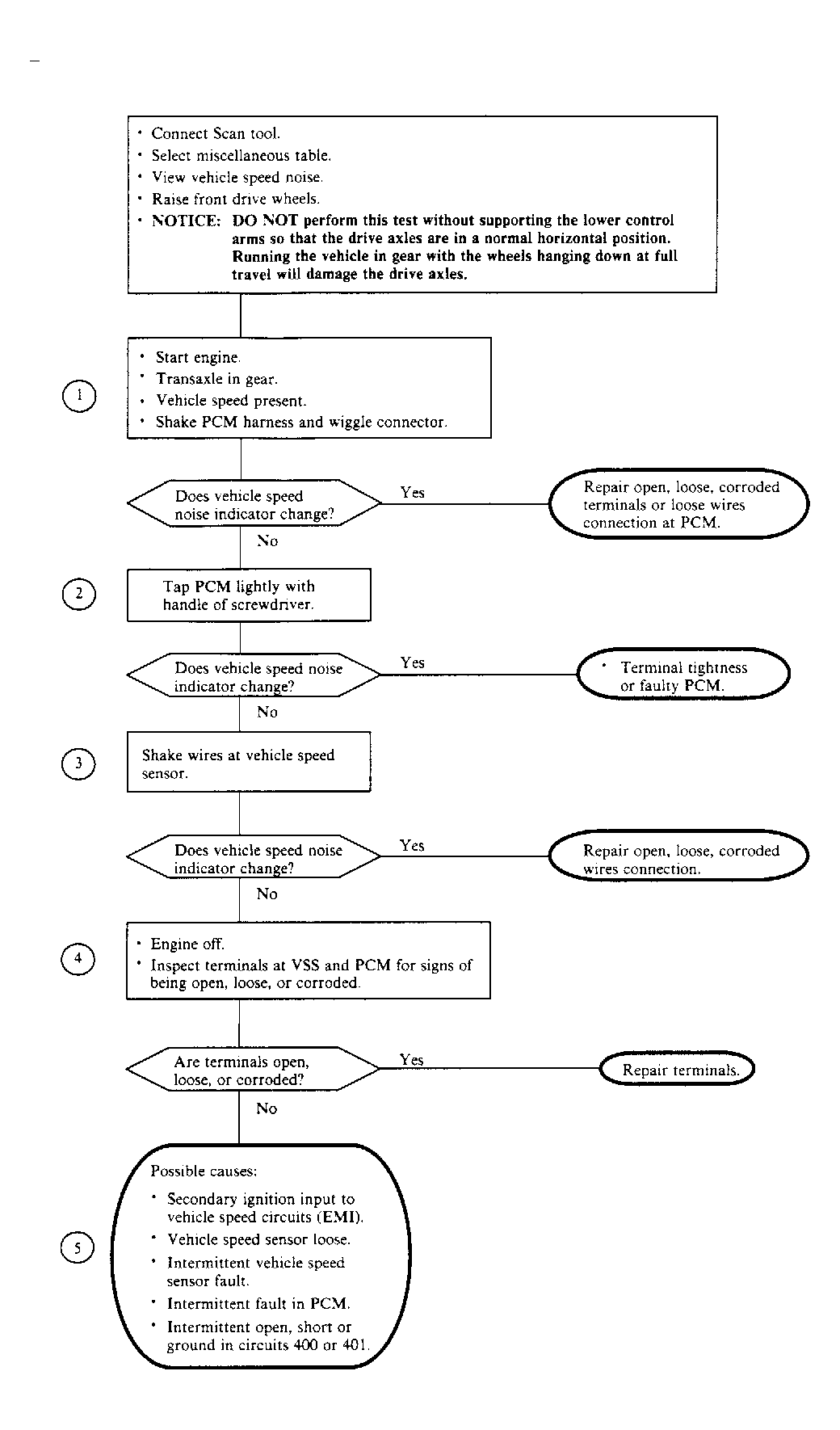

Fig 1: Code 42 Troubleshooting Diagnostic Diagram
G92H14750Courtesy of GENERAL MOTORS CORP.
