Home › Saturn › 1992 › SC Standard › Repair and Diagnosis › Transmission › Automatic Trans › Diagnosis › Wiring Diagram

Automatic Trans: Diagnosis: Wiring Diagram

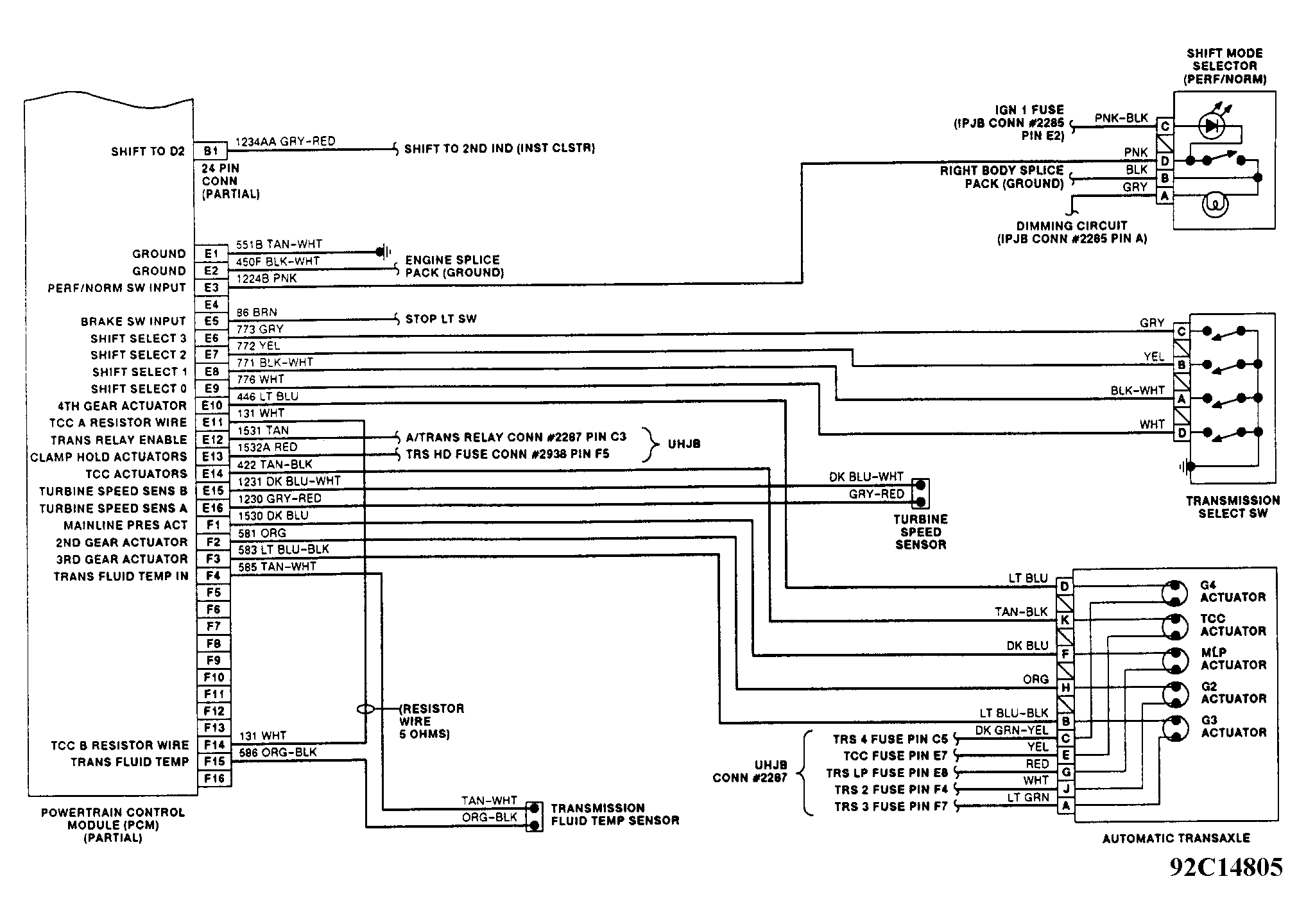

Fig 1: Transaxle Wiring Diagram (1991-92)
G92C14805
