Removal & Installation

Remove outer door panel. See OUTER DOOR PANEL .
Lower door glass. Remove glass nuts with tool SA9148B. Push glass up and rotate slightly. Remove door glass. See Fig 1 .
To install, reverse removal procedure.

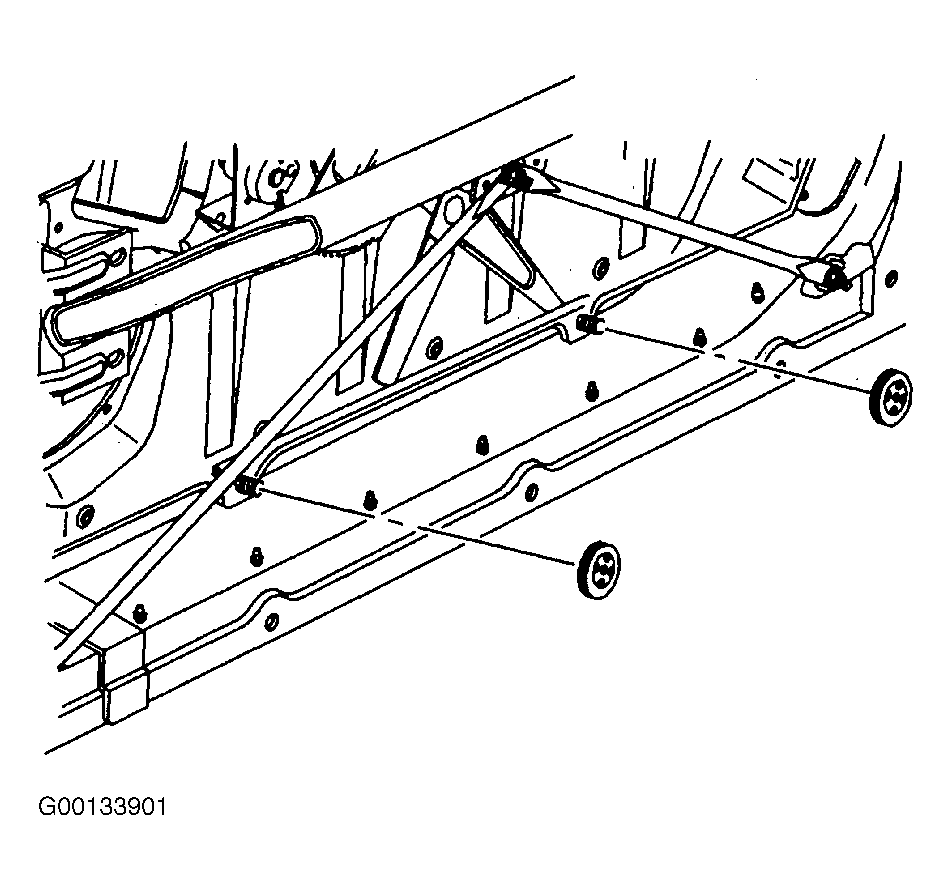

Fig 1: Removing Door Glass

Courtesy of GENERAL MOTORS CORP.
