Chime Module: Installation

Carefully plug the chime module into the instrument panel junction block until it locks into place.
Install drivers side close out panel.

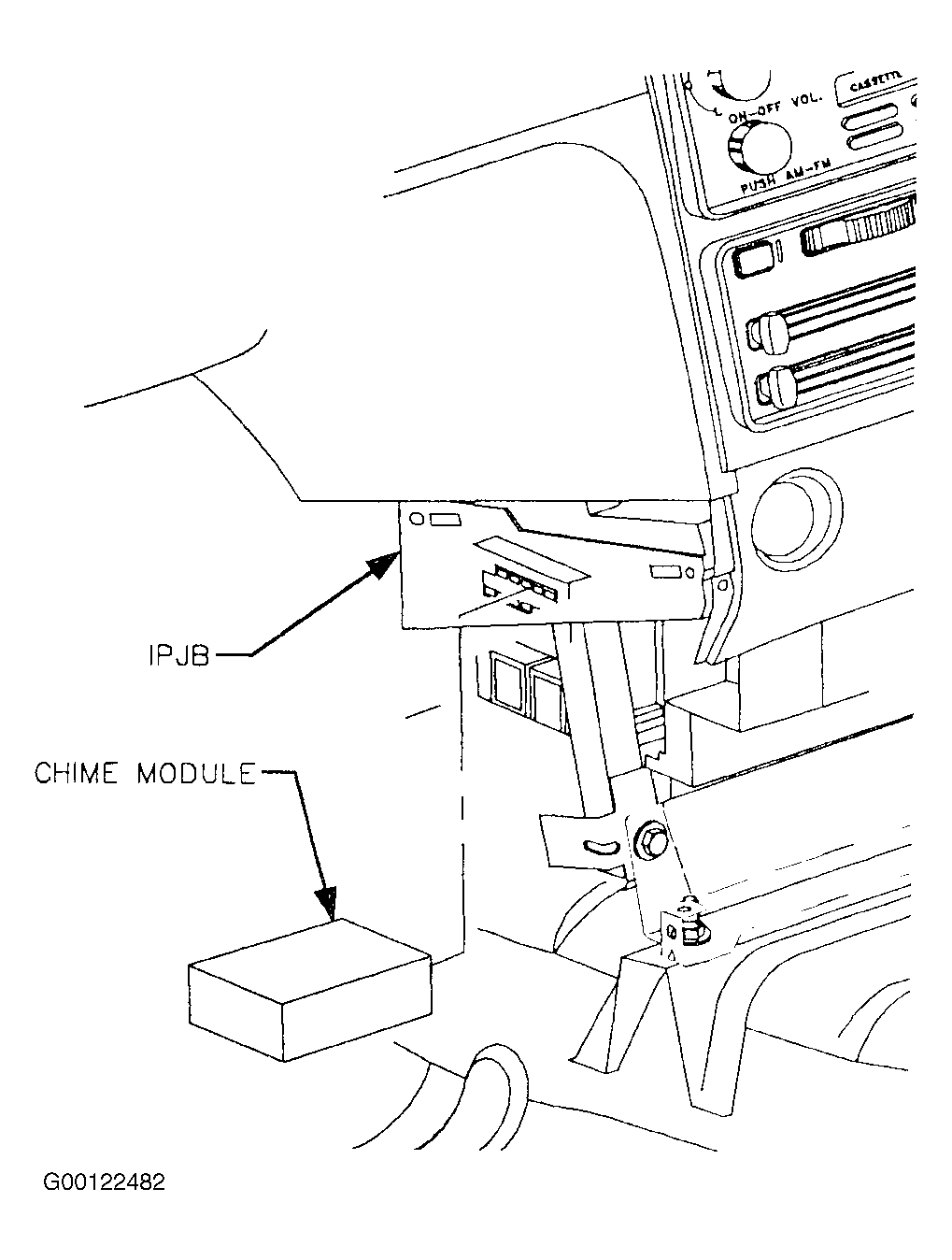

Fig 1: Locating Chime Module

Courtesy of GENERAL MOTORS CORP.
