Codes 41/42 Simultaneous: By-Pass Open Or Grounded

Fig 1: Codes 41/42, Schematic, Simultaneous, By-pass Open Or Grounded

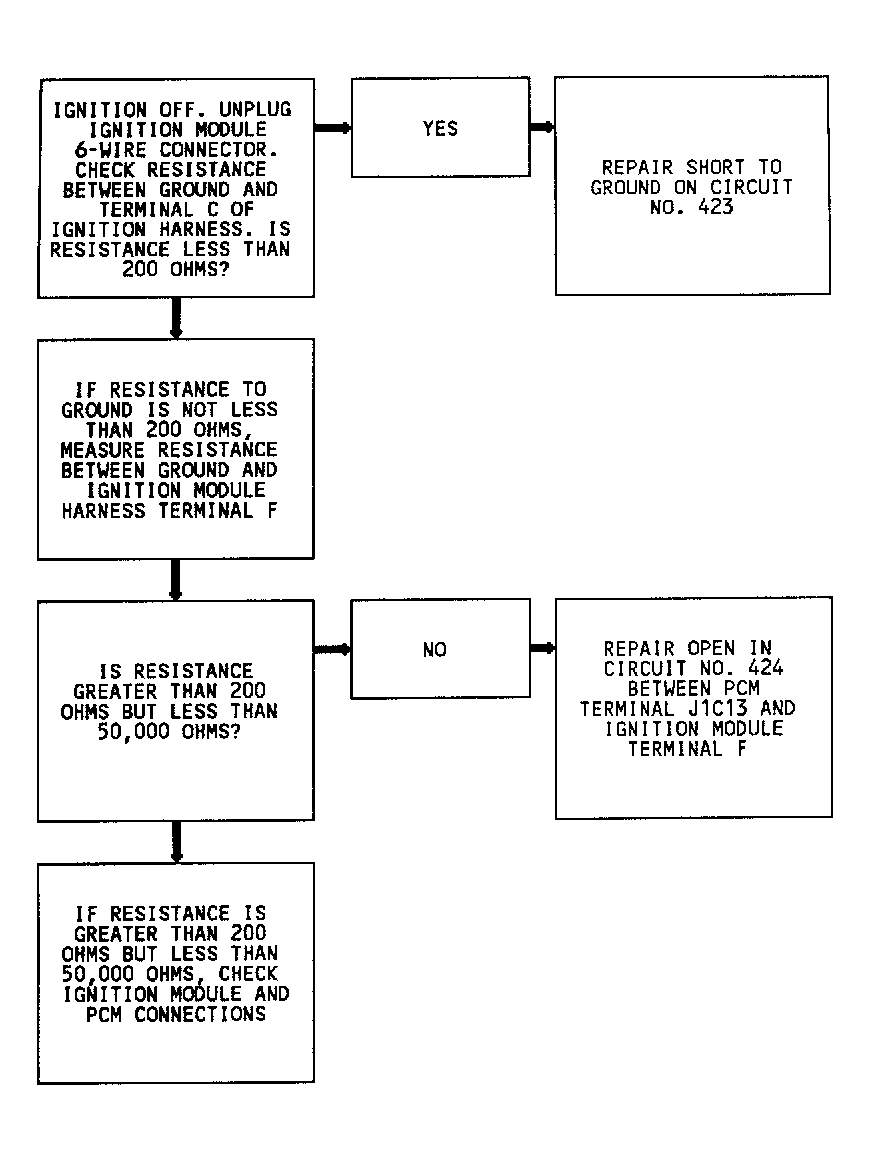

Fig 2: Codes 41/42, Flow Chart, Simultaneous, By-pass Open Or Grounded

Fig 3: Codes 41 - 42
