Passenger Inflator Module: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Saturn SW2, 1995 Saturn SW1, 1995 Saturn SL2, 1995 Saturn SL1, and 1995 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable SIR system. See DISABLING & ACTIVATING AIR BAG  SYSTEM. Remove passenger air bag harness from cross car beam and energy absorber. See Fig 1.

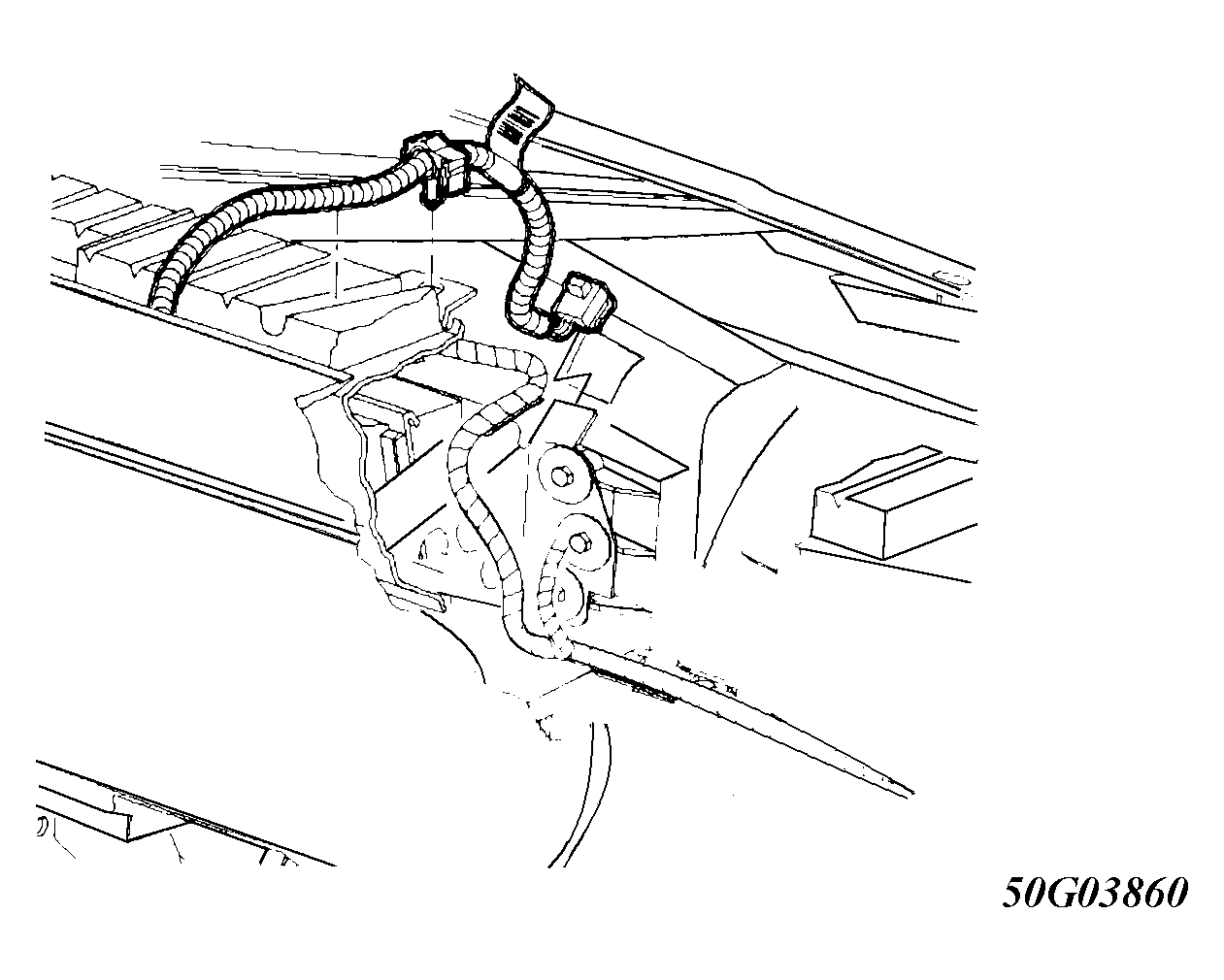

    Fig 1: Remove Passenger Air Bag Harness
    G50G03860Courtesy of GENERAL MOTORS CORP.
  2. Remove glove box door stops and let glove box door hang down. Remove screws from glove box compartment and striker. Remove glove box assembly by pulling rearward at clip locations. Remove screws and passenger side air bag. See Fig 2.

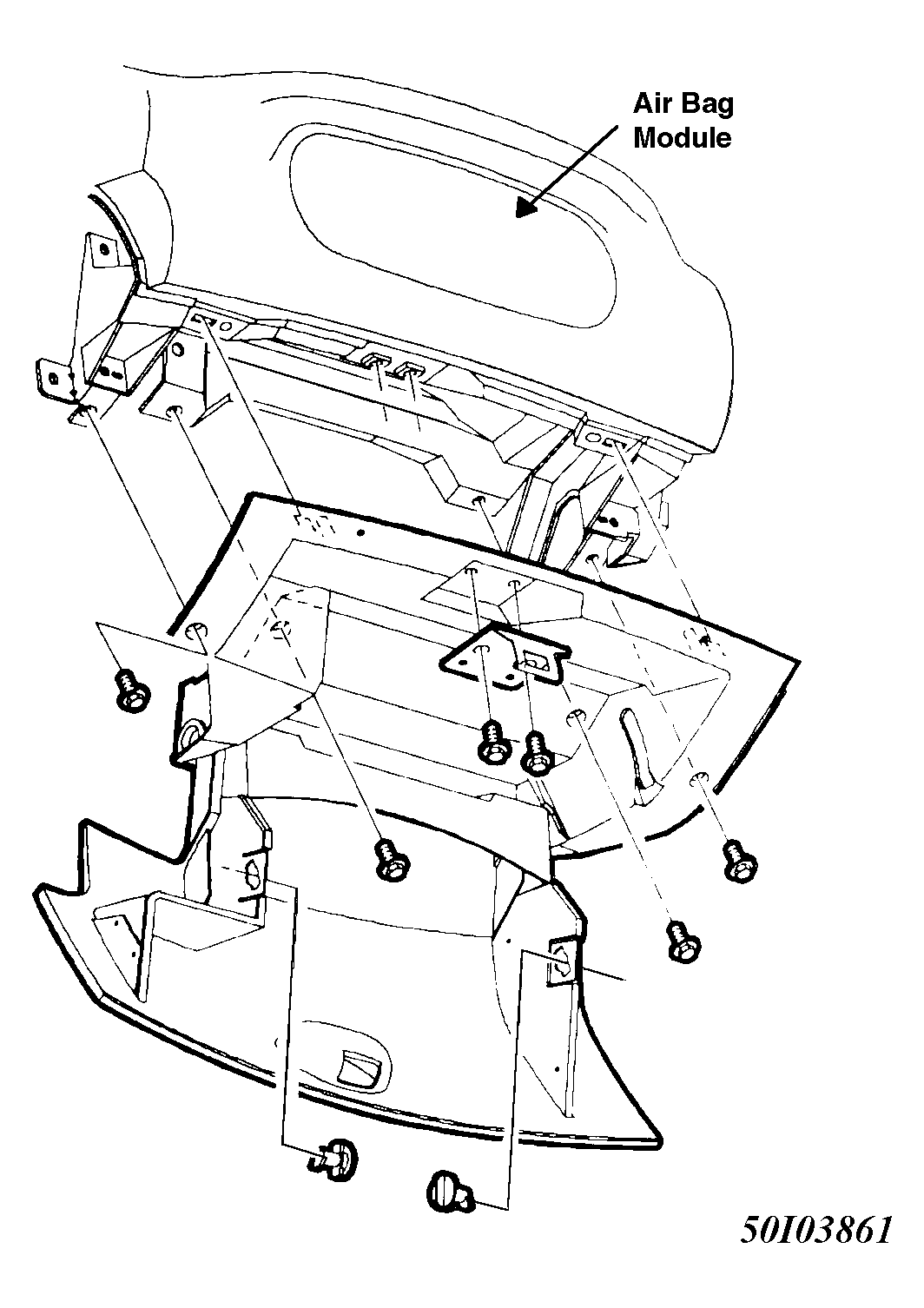

Fig 2: Removing Glove Box Assembly And Passenger Side Air Bag
G50I03861Courtesy of GENERAL MOTORS CORP.
