Home › Saturn › 1994 › SW1 Standard › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belts - Automatic › Wiring Diagrams

Wiring Diagrams

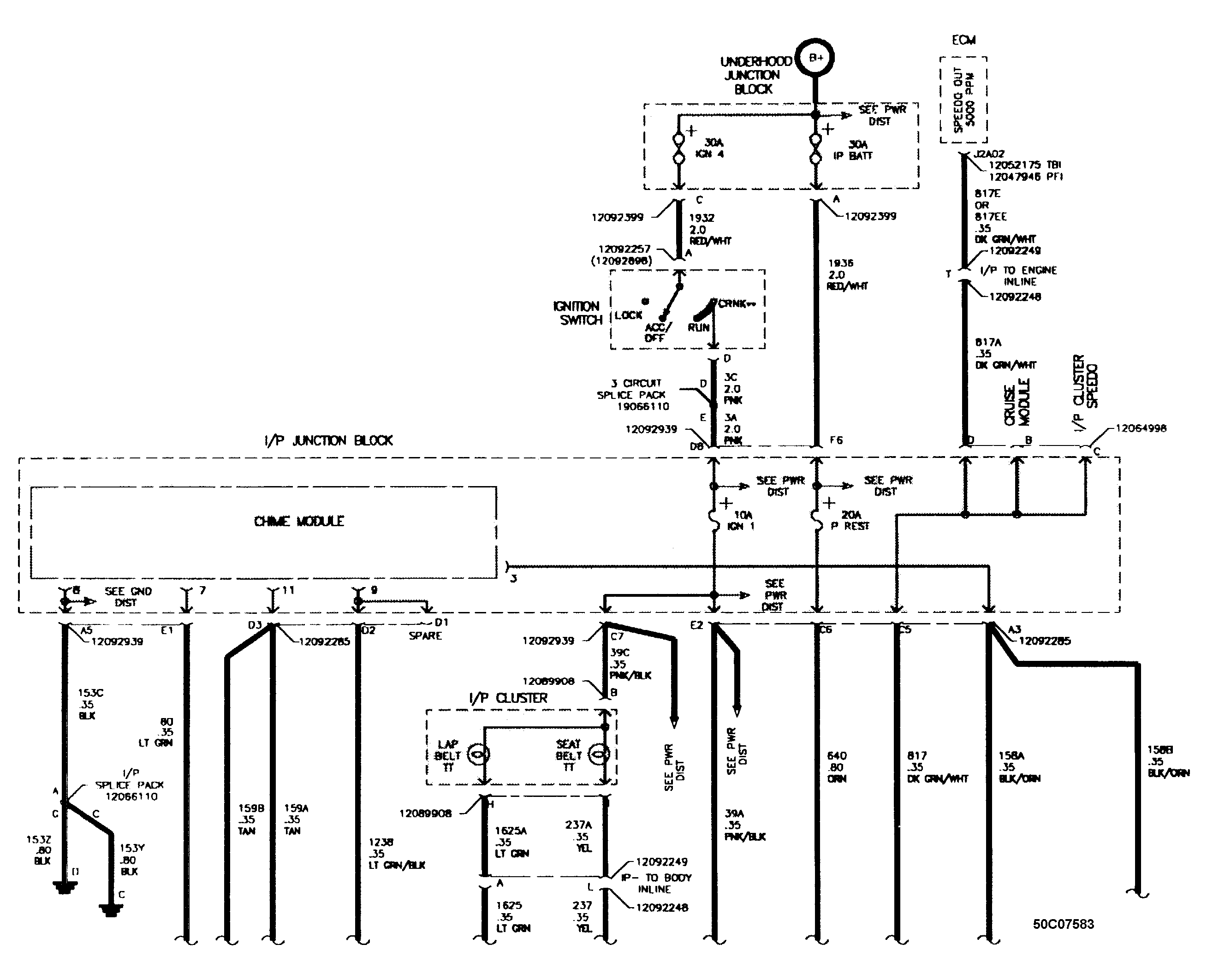

Fig 1: Wiring Diagram (1 of 2) Print For Best Results
G50C07583

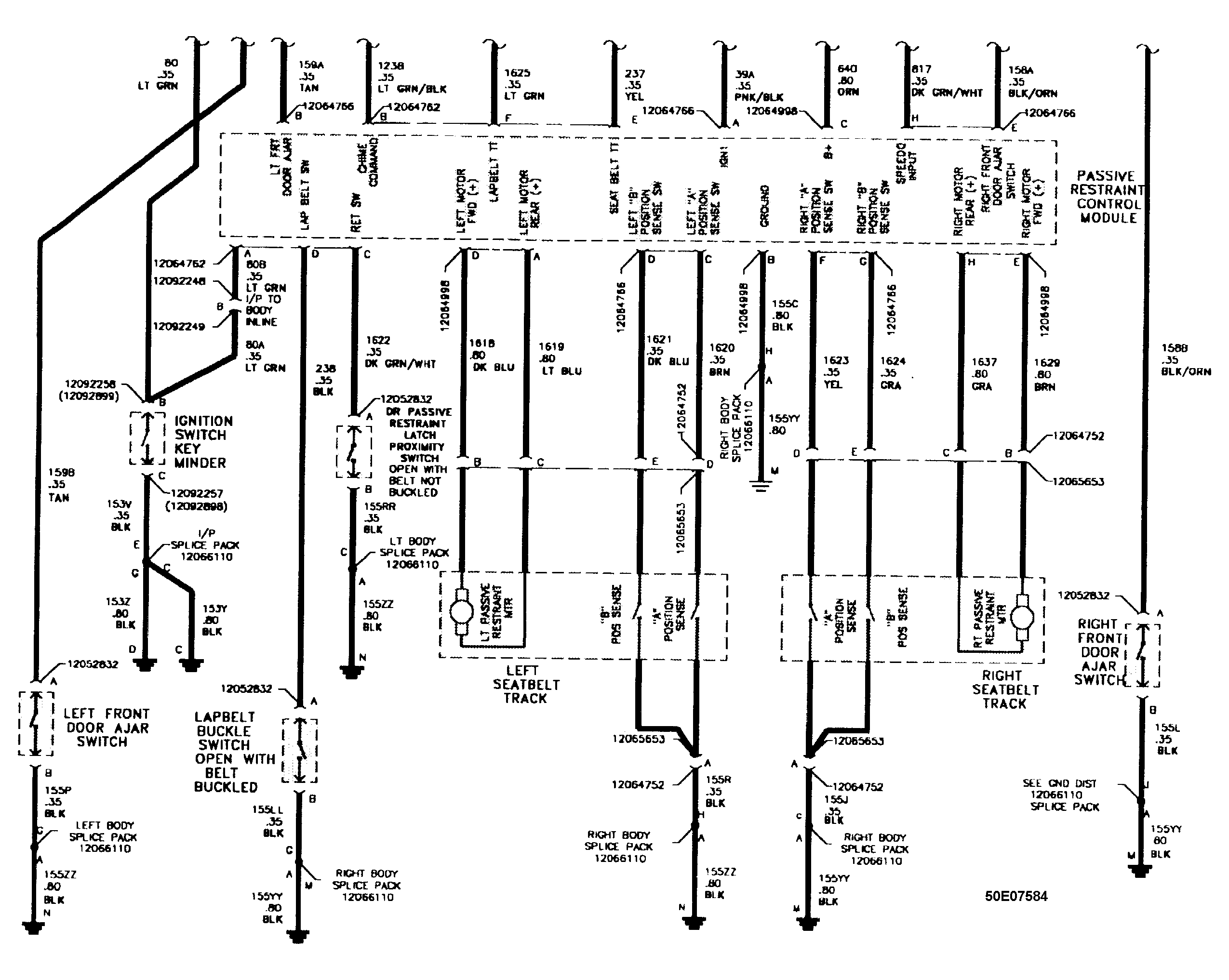

Fig 2: Wiring Diagram (2 of 2) Print For Best Results
G50E07584
