Conditions To Clear
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1993 Saturn SW2, 1993 Saturn SW1, 1993 Saturn SL2, 1993 Saturn SL1, and 1993 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.
Cycle Code 35 will be cleared if the voltage at the SENSE LOW input, DERM terminal A6, is within a specific range of 36-VLR output voltage for 500 milliseconds.
NOTE:

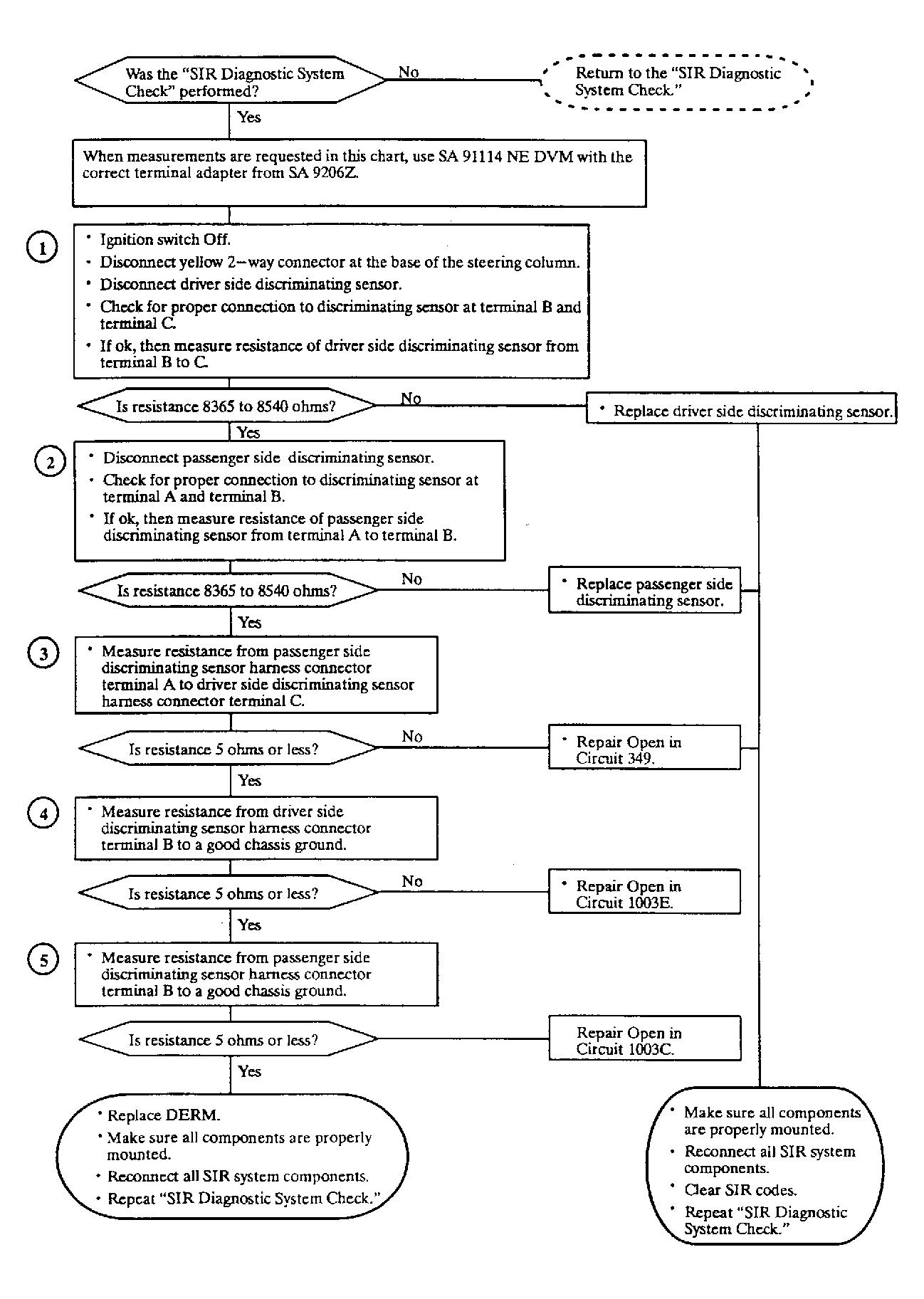

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAM
S.
- Checks for proper resistance of driver side discriminating sensor.
- Checks for proper resistance of passenger side discriminating sensor.
- Checks for open in circuit No. 349.
- Checks for open in driver side discriminating sensor ground circuit.
- Checks for open in passenger side discriminating sensor ground circuit.
