Wheel Speed Sensors: Installation

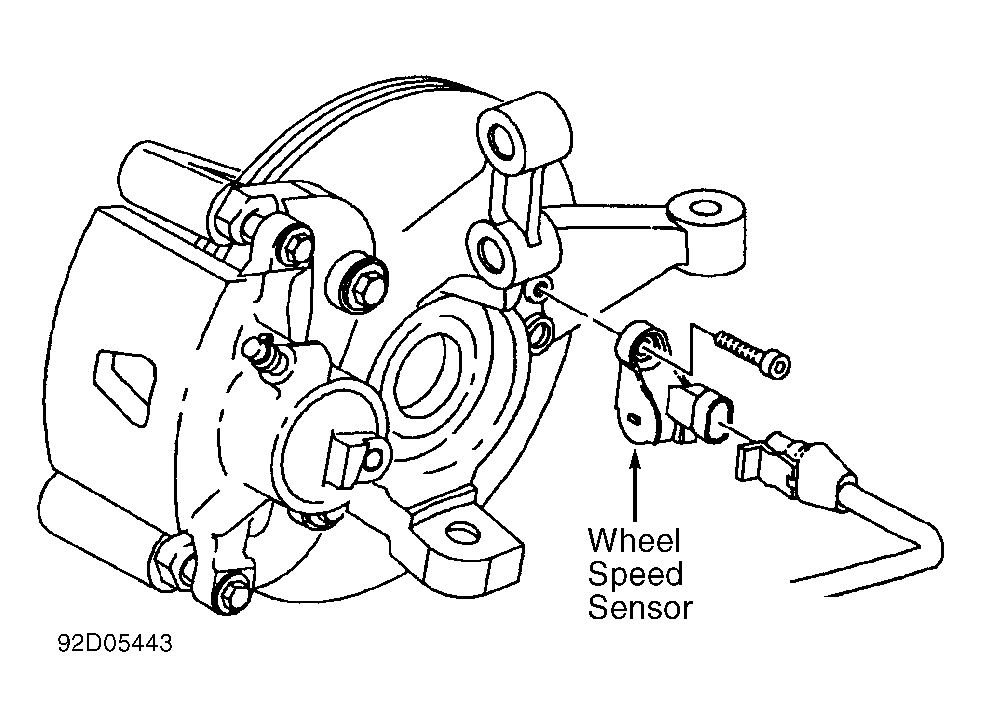

Clean locating hole with coarse sandpaper wrapped around dowel. To complete installation, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . Ensure sensor is fully seated against knuckle.

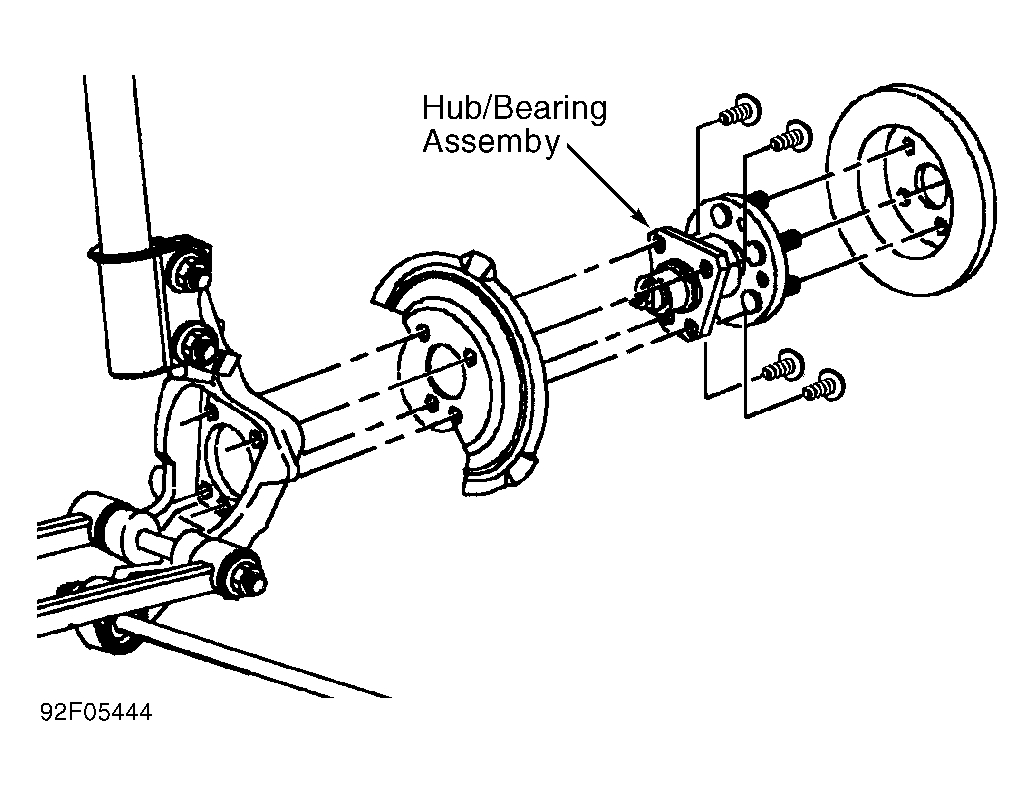

Install NEW hub. Clean rust and corrosion from wheel mounting surfaces. To complete installation, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .
