Connector Identification

WARNING: This page is about a different car, the 1995 Pontiac Sunfire and 1995 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To identify SIR wiring connector terminals, see Fig 1 -13.

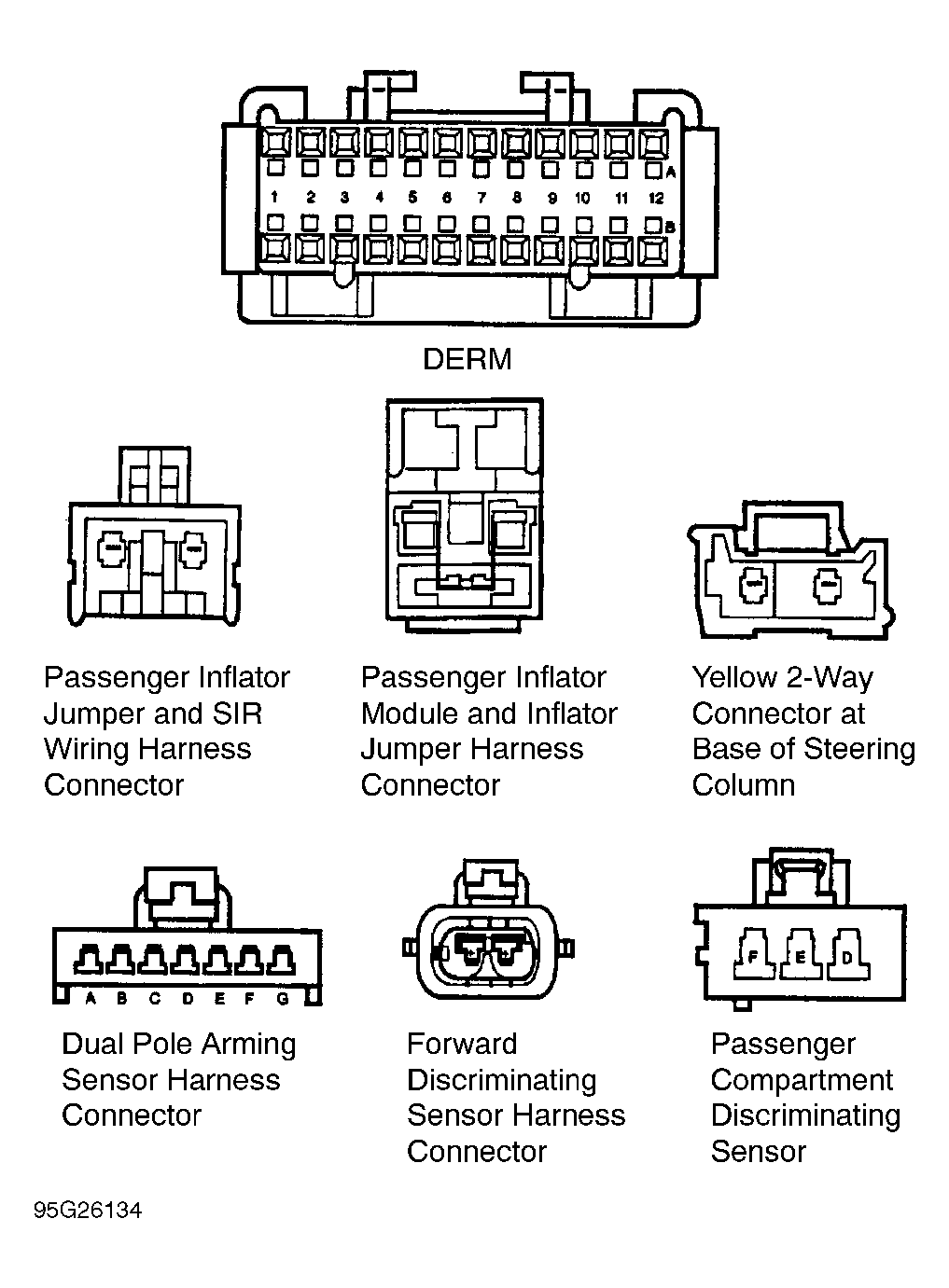

Fig 1: DERM Connector

G95G26134

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger Inflator Jumper & SIR Wiring Harness Connector

G50G03775

Courtesy of GENERAL MOTORS CORP.

Fig 3: Passenger Inflator Module & Inflator Jumper Harness Connector

G50I03776

Courtesy of GENERAL MOTORS CORP.

Fig 4: Yellow 2-Way Connector At Base Of Steering Column

G50A03777

Courtesy of GENERAL MOTORS CORP.

Fig 5: Dual Pole Arming Sensor Harness Connector

G50C03778

Courtesy of GENERAL MOTORS CORP.

Fig 6: Forward Discriminating Sensor Harness Connector

G50E03779

Courtesy of GENERAL MOTORS CORP.

Fig 7: Passenger Compartment Discriminating Sensor

G50G03780

Courtesy of GENERAL MOTORS CORP.
