Diagnostic Aids

When diagnosing intermittent problems, select MALF HISTORY from scan tool ABS menu. Supplemental data can be used to duplicate problem. Ensure terminals make good connection. Measure motor resistance. Resistance should be less than 2 ohms.

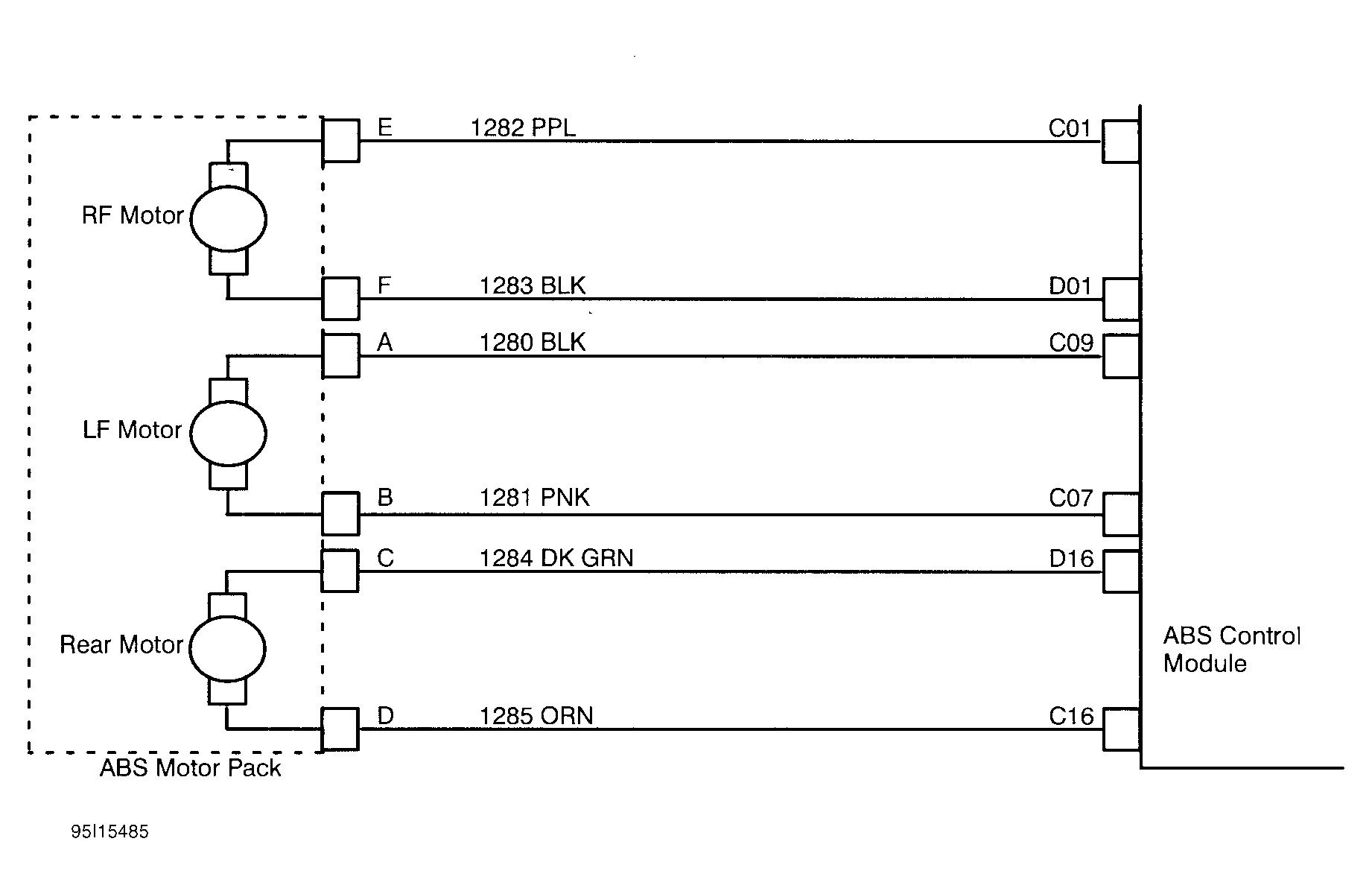

Fig 1: Code 56 Schematic

Courtesy of GENERAL MOTORS CORP.

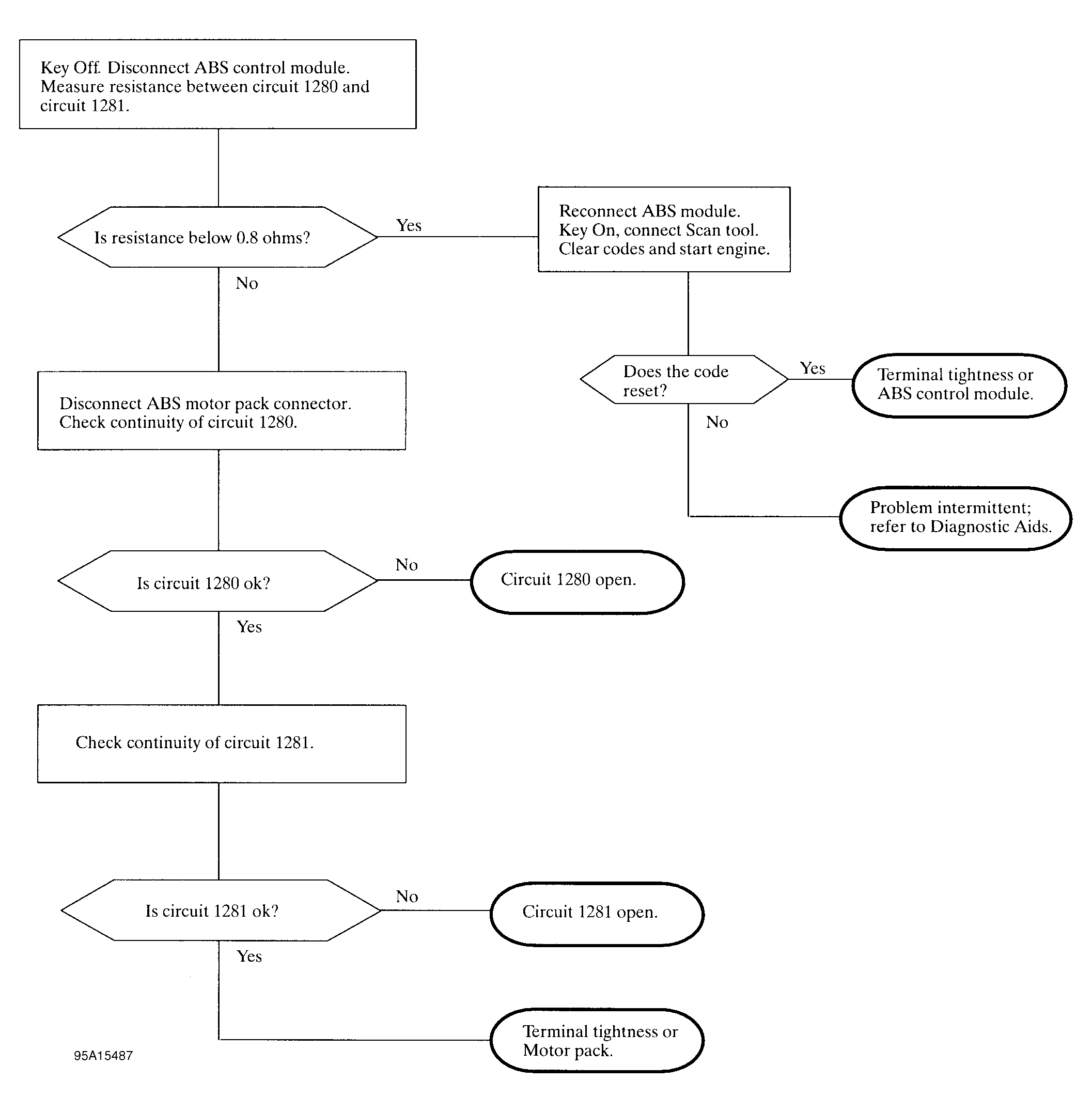

Fig 2: Code 56 Flow Chart

Courtesy of GENERAL MOTORS CORP.
