Diagnostic Aids

DTC will set if either MAP or TP sensor is out of range. To distinguish which one failed, review malfunction history information on scan tool and attempt to duplicate conditions.

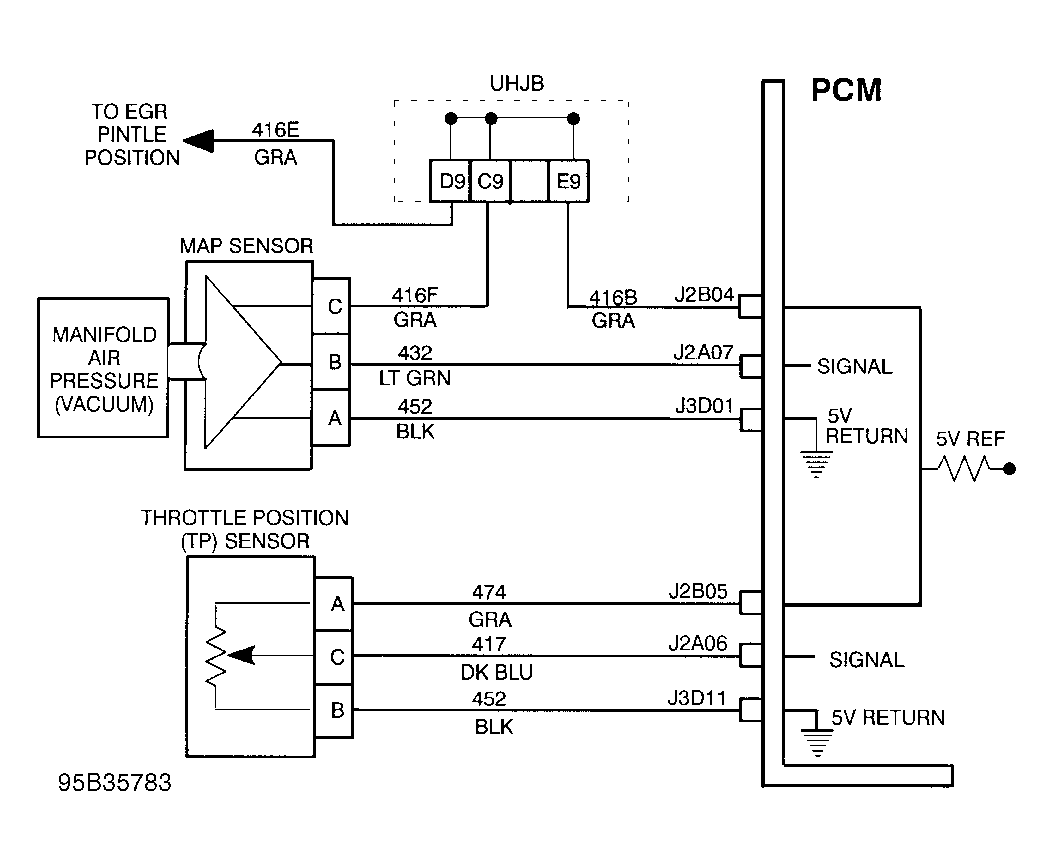

Fig 1: DTC P0105 Schematic
G95B35783
