ACP Trouble Code Charts

WARNING: This page is about a different car, the 1995 Cadillac Seville, 1995 Cadillac Eldorado, and 1995 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: ACP Trouble Code Chart Code A010 (1 of 2)

G94C37285

Courtesy of GENERAL MOTORS CORP.

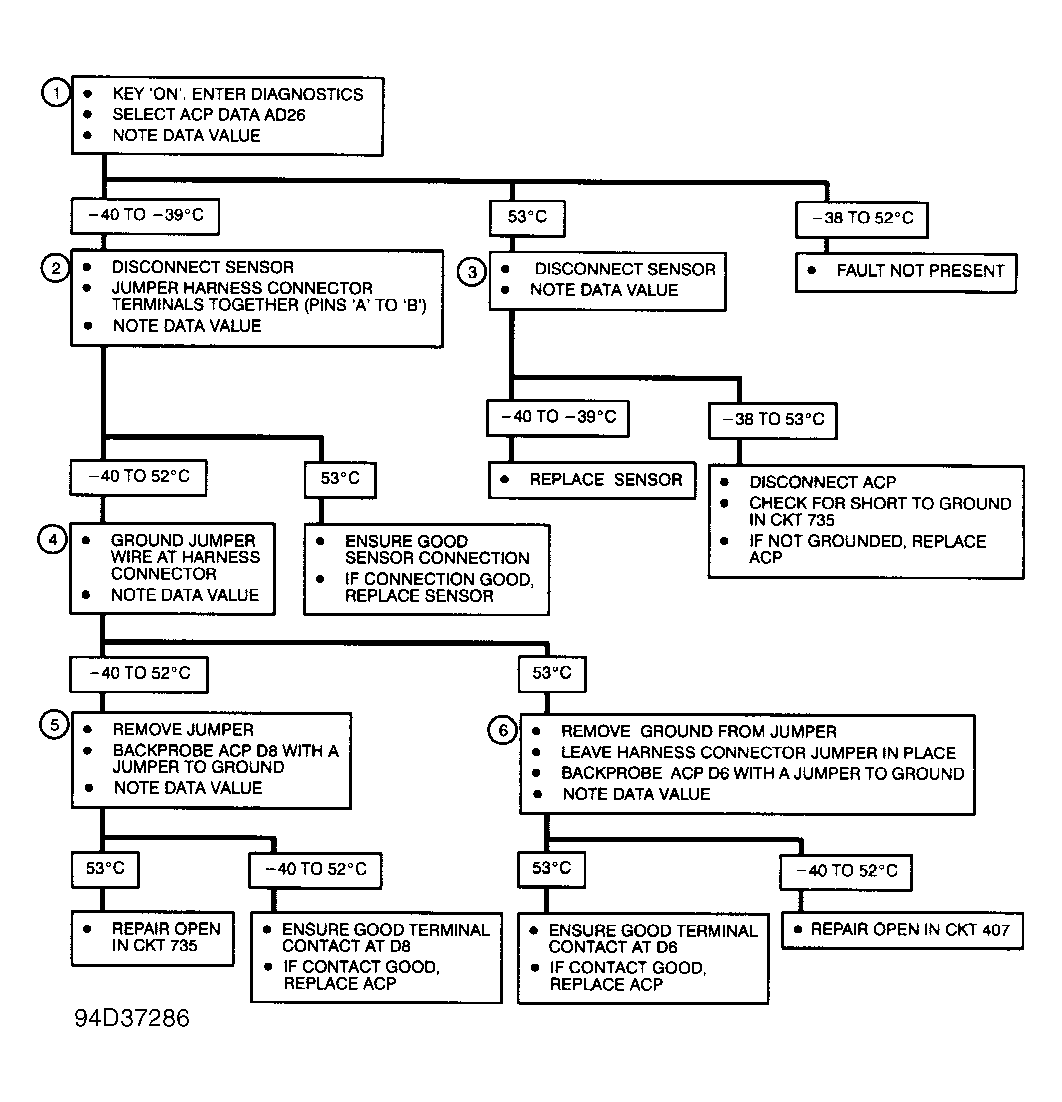

Fig 2: ACP Trouble Code Chart Code A010 (2 of 2)

G94D37286

Courtesy of GENERAL MOTORS CORP.

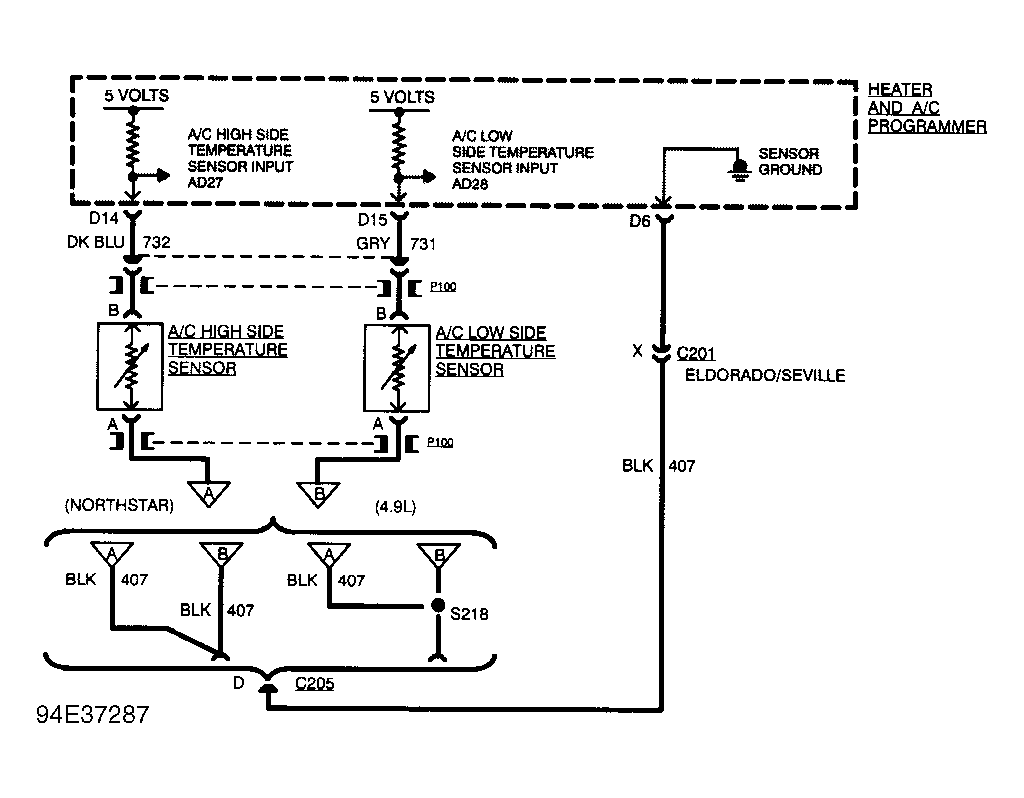

Fig 3: ACP Trouble Code Chart Code A011 (1 of 2)

G94E37287

Courtesy of GENERAL MOTORS CORP.

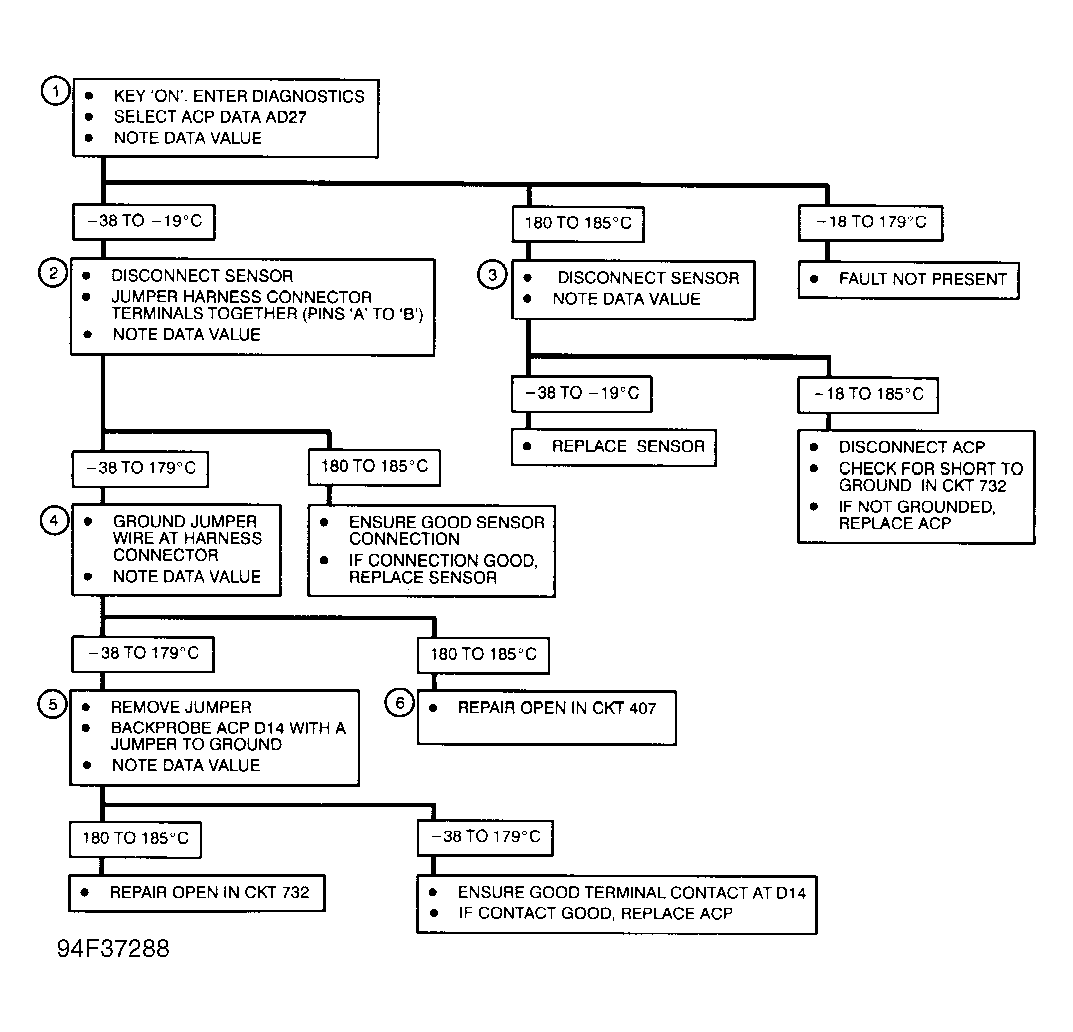

Fig 4: ACP Trouble Code Chart Code A011 (2 of 2)

G94F37288

Courtesy of GENERAL MOTORS CORP.

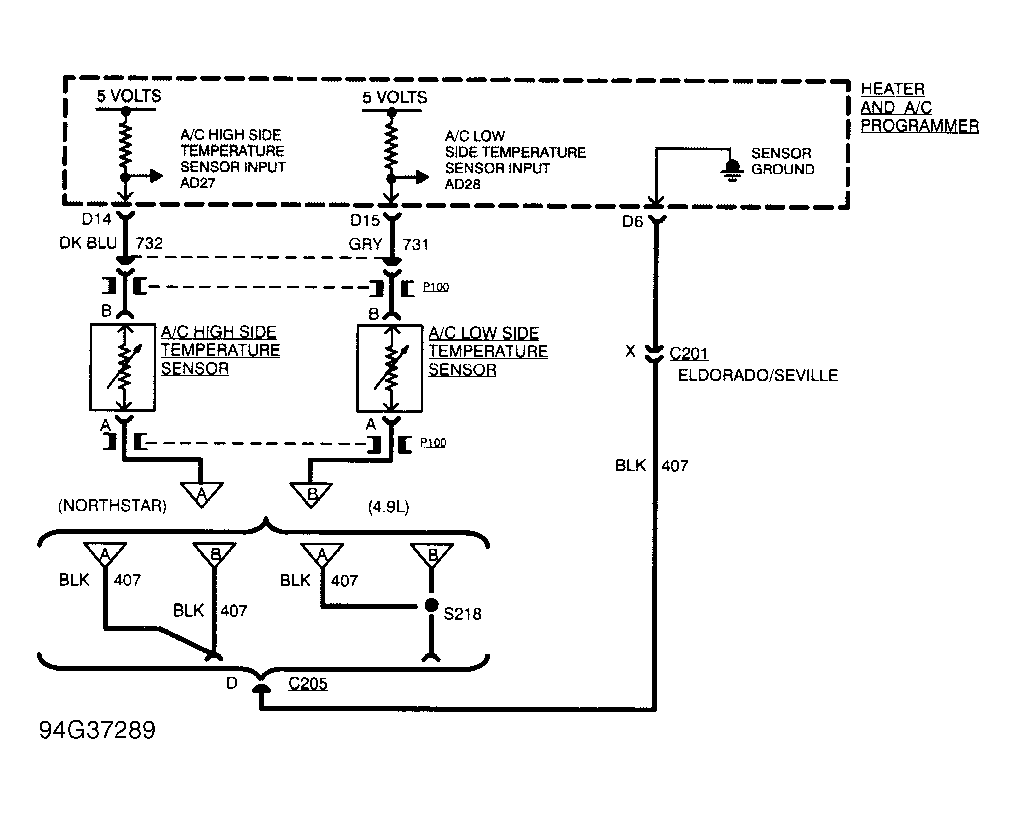

Fig 5: ACP Trouble Code Chart Code A012 (1 of 2)

G94G37289

Courtesy of GENERAL MOTORS CORP.

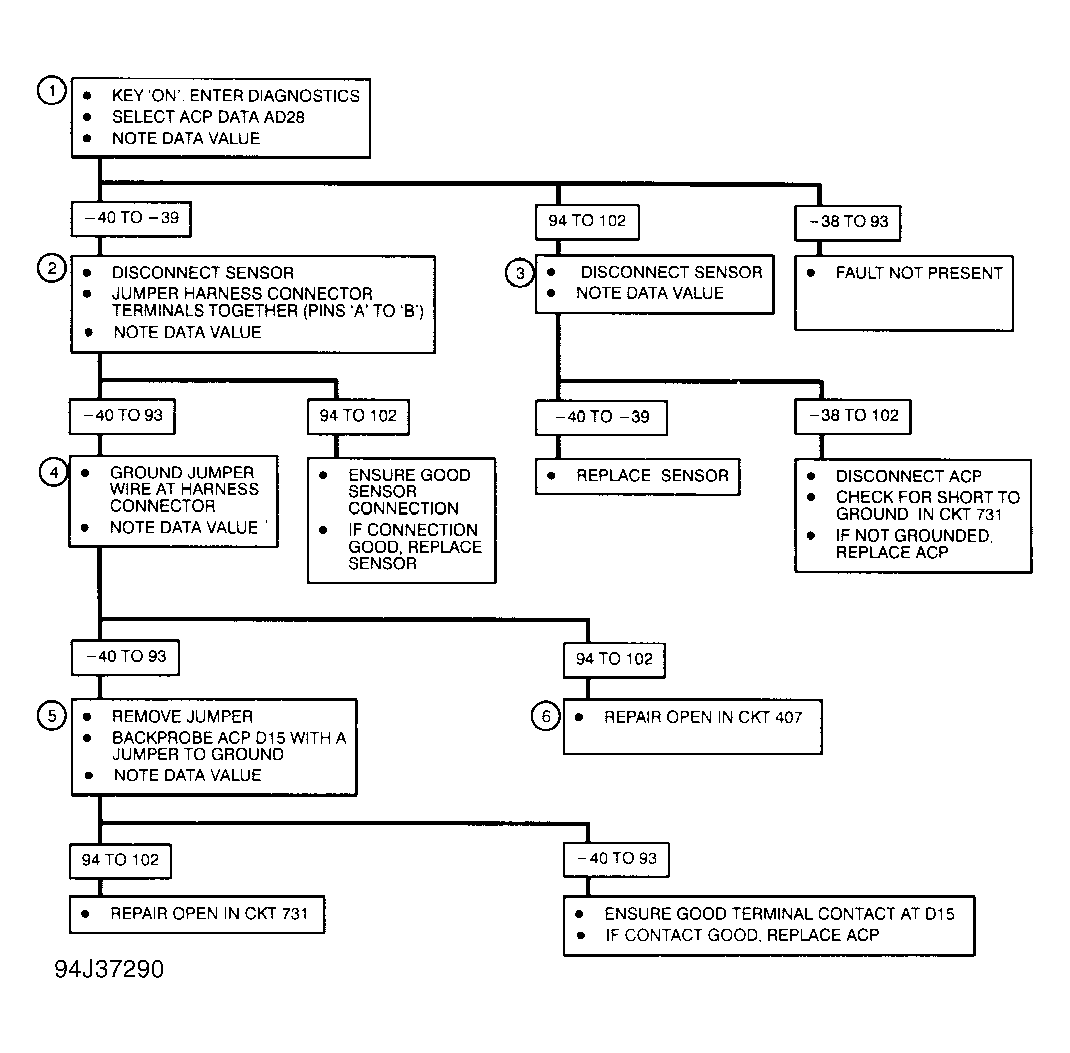

Fig 6: ACP Trouble Code Chart Code A012 (2 of 2)

G94J37290

Courtesy of GENERAL MOTORS CORP.

Fig 7: ACP Trouble Code Chart Code A013 (1 of 2)

G94A37291

Courtesy of GENERAL MOTORS CORP.

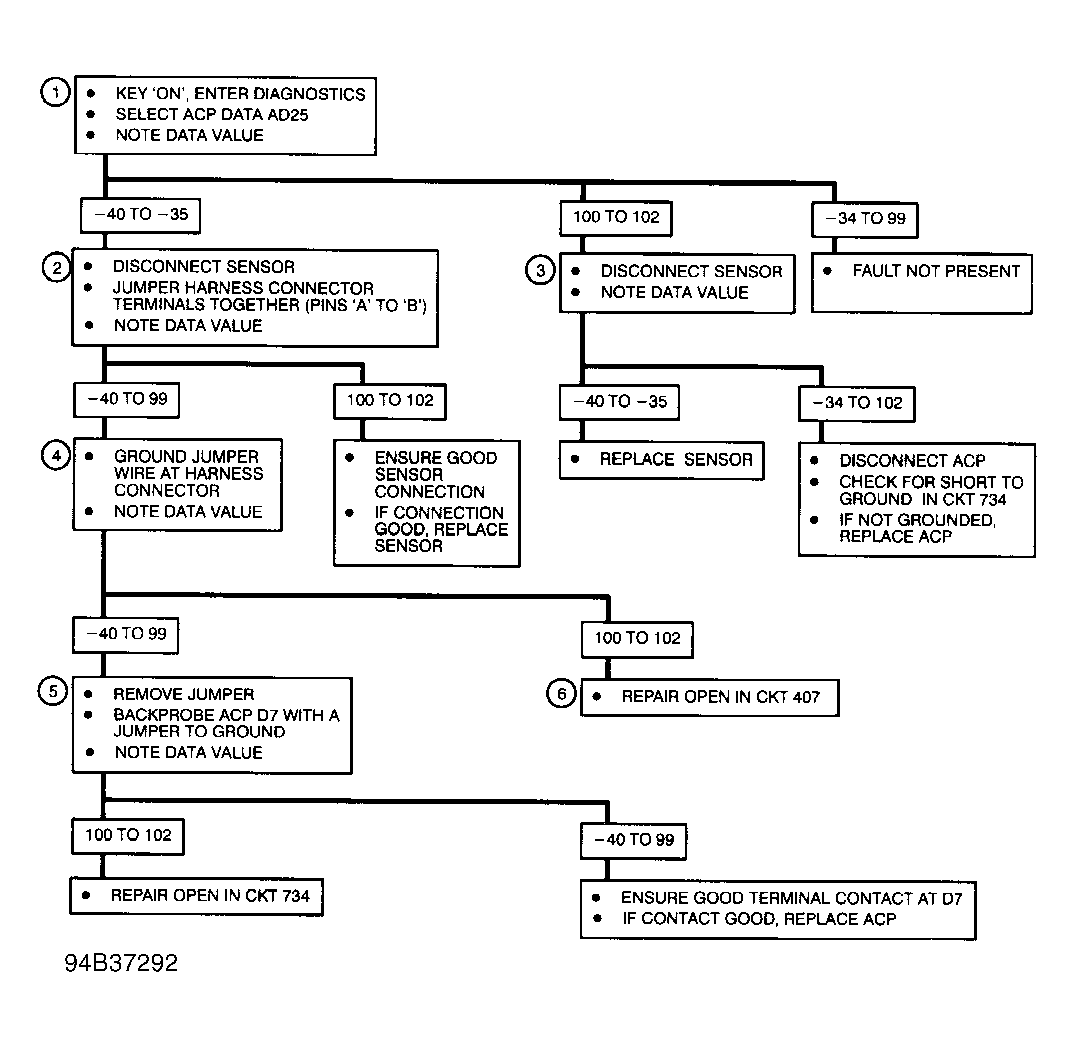

Fig 8: ACP Trouble Code Chart Code A013 (2 of 2)

G94B37292

Courtesy of GENERAL MOTORS CORP.

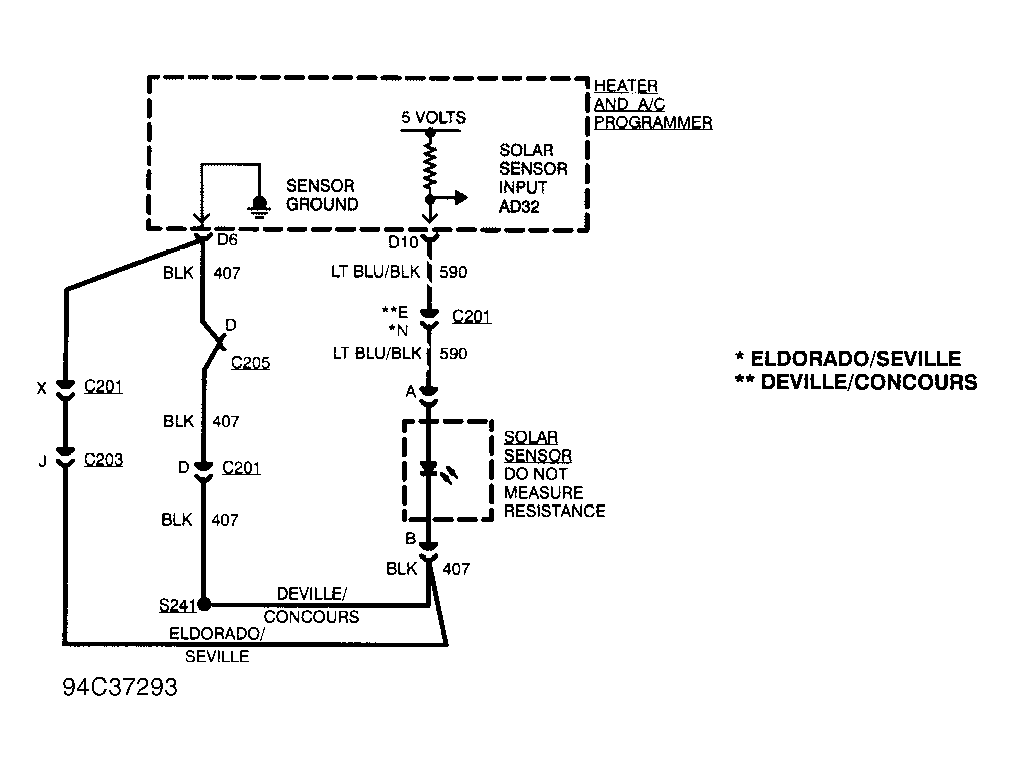

Fig 9: ACP Trouble Code Chart Code A015 (1 of 2)

G94C37293

Courtesy of GENERAL MOTORS CORP.

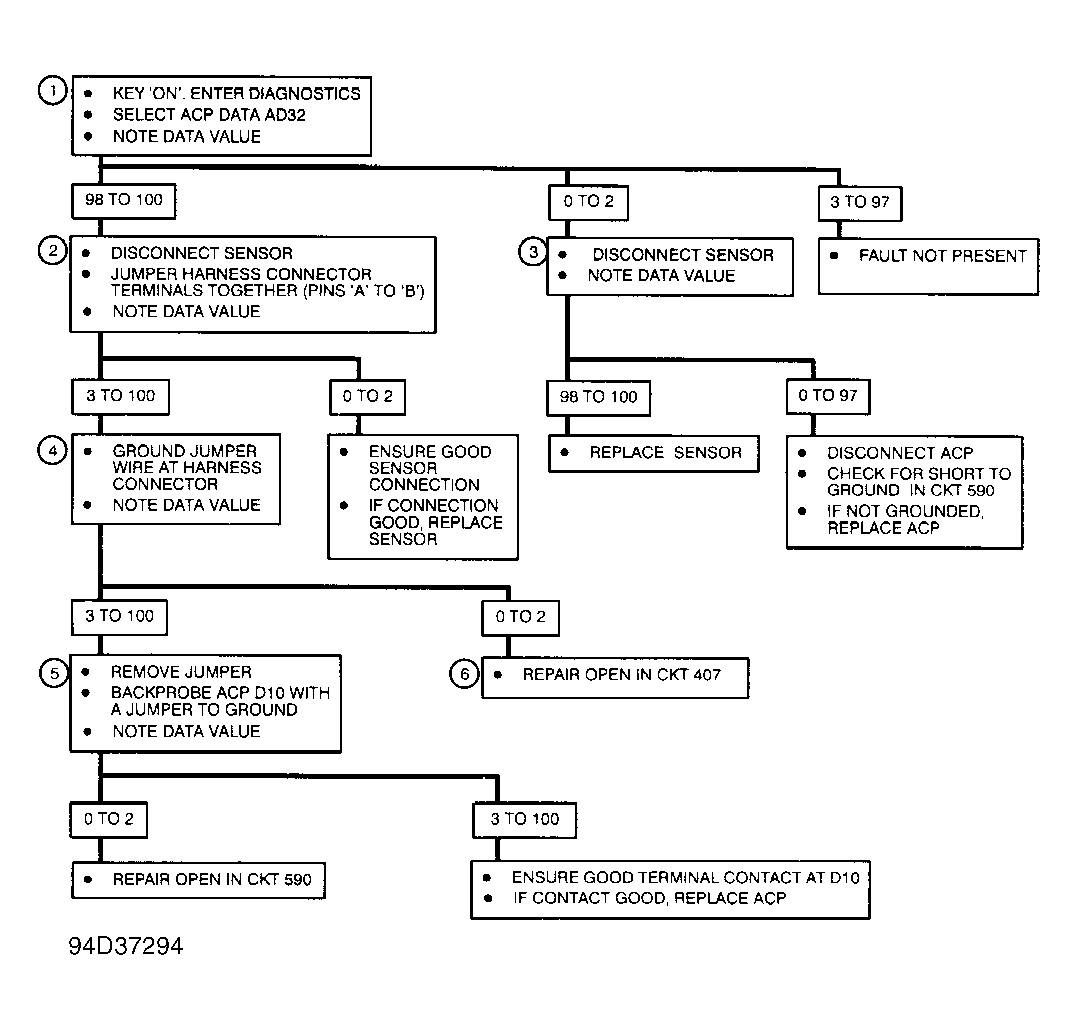

Fig 10: ACP Trouble Code Chart Code A015 (2 of 2)

G94D37294

Courtesy of GENERAL MOTORS CORP.

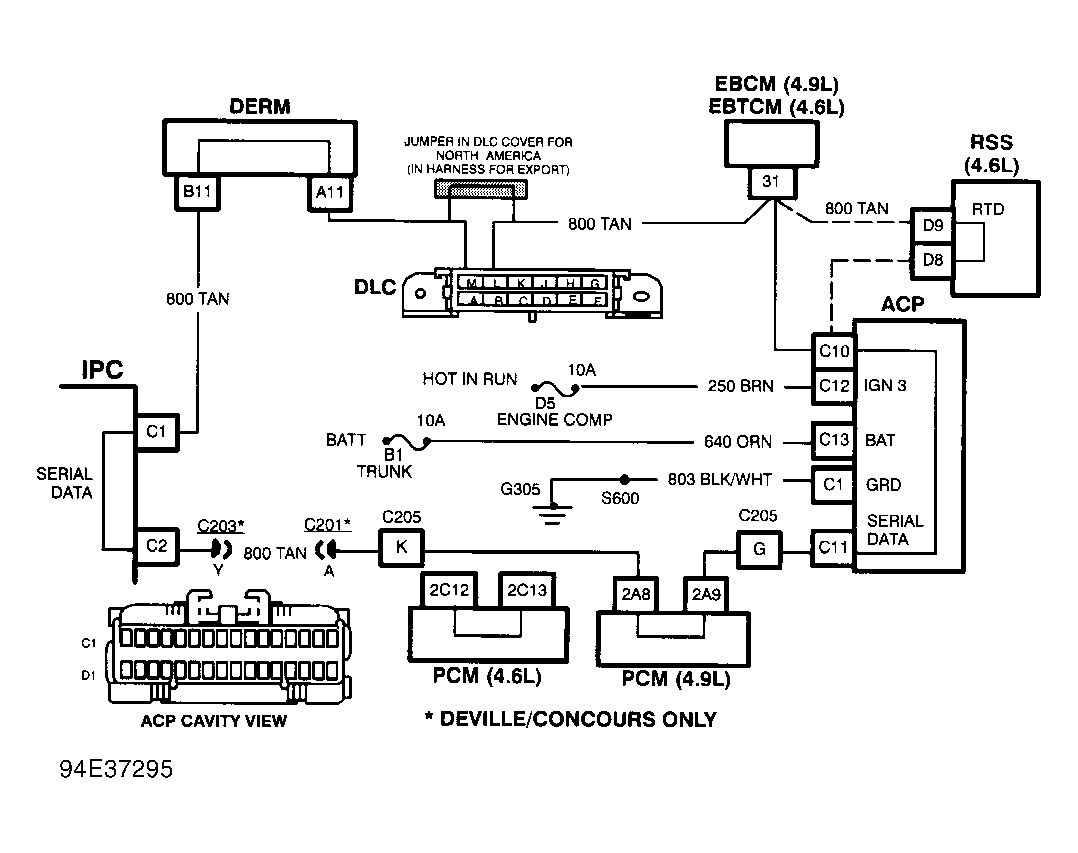

Fig 11: ACP Trouble Code Chart Code A037

G94E37295

Courtesy of GENERAL MOTORS CORP.

Fig 12: ACP Trouble Code Chart Code A040 (1 of 2)

G94F37296

Courtesy of GENERAL MOTORS CORP.

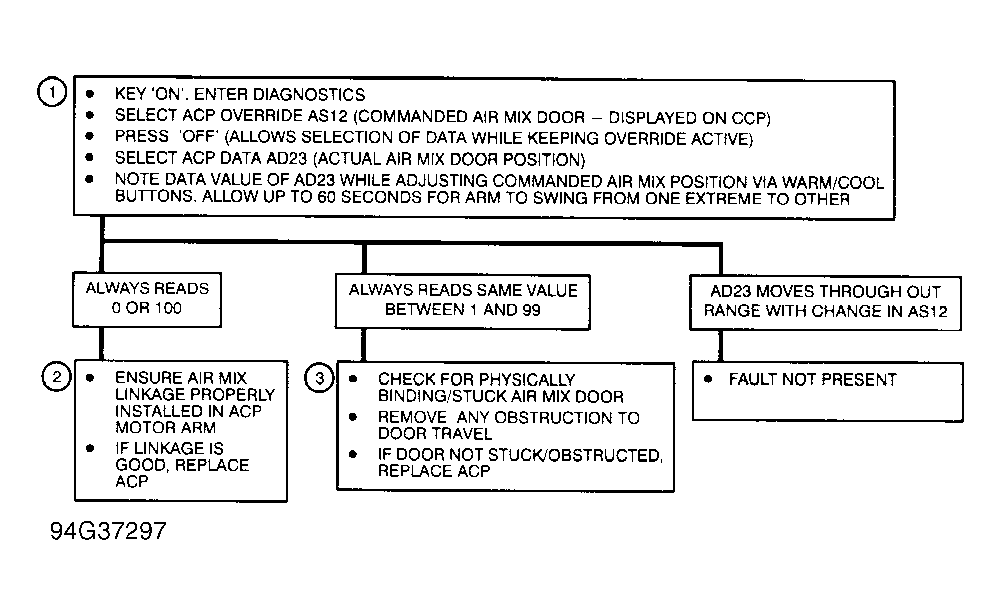

Fig 13: ACP Trouble Code Chart Code A040 (2 of 2)

G94G37297

Courtesy of GENERAL MOTORS CORP.

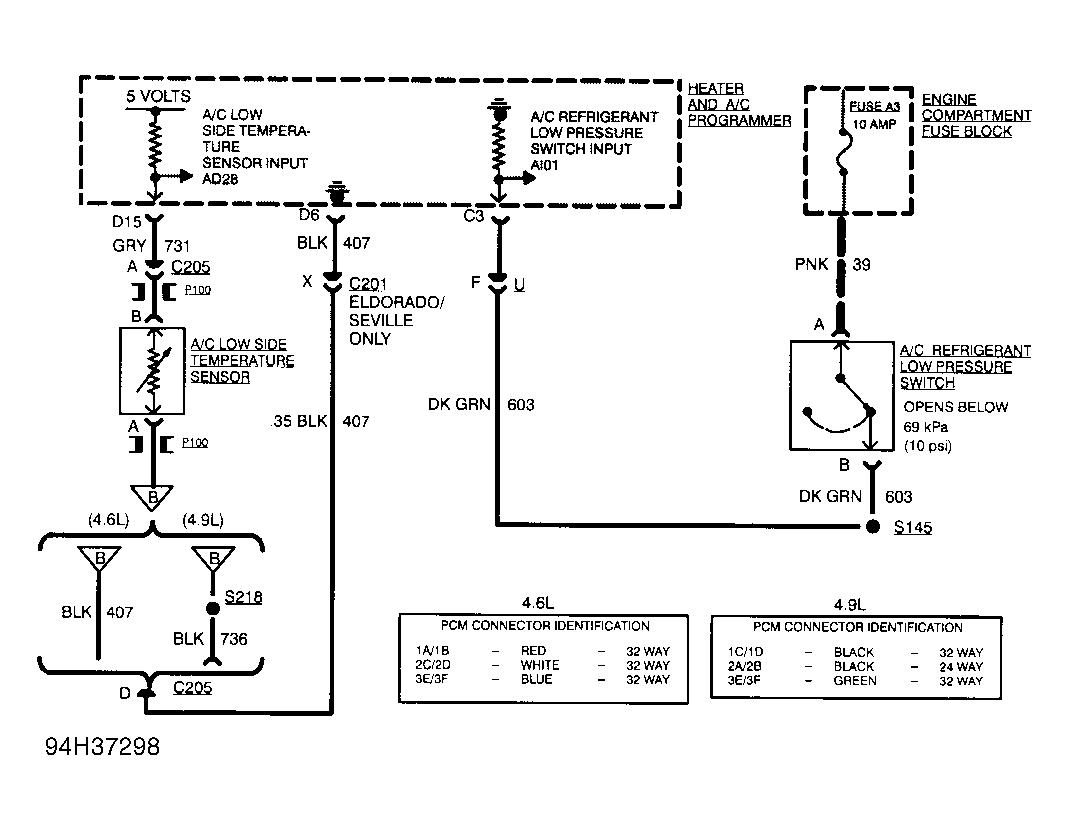

Fig 14: ACP Trouble Code Chart Code A047 (1 of 2)

G94H37298

Courtesy of GENERAL MOTORS CORP.

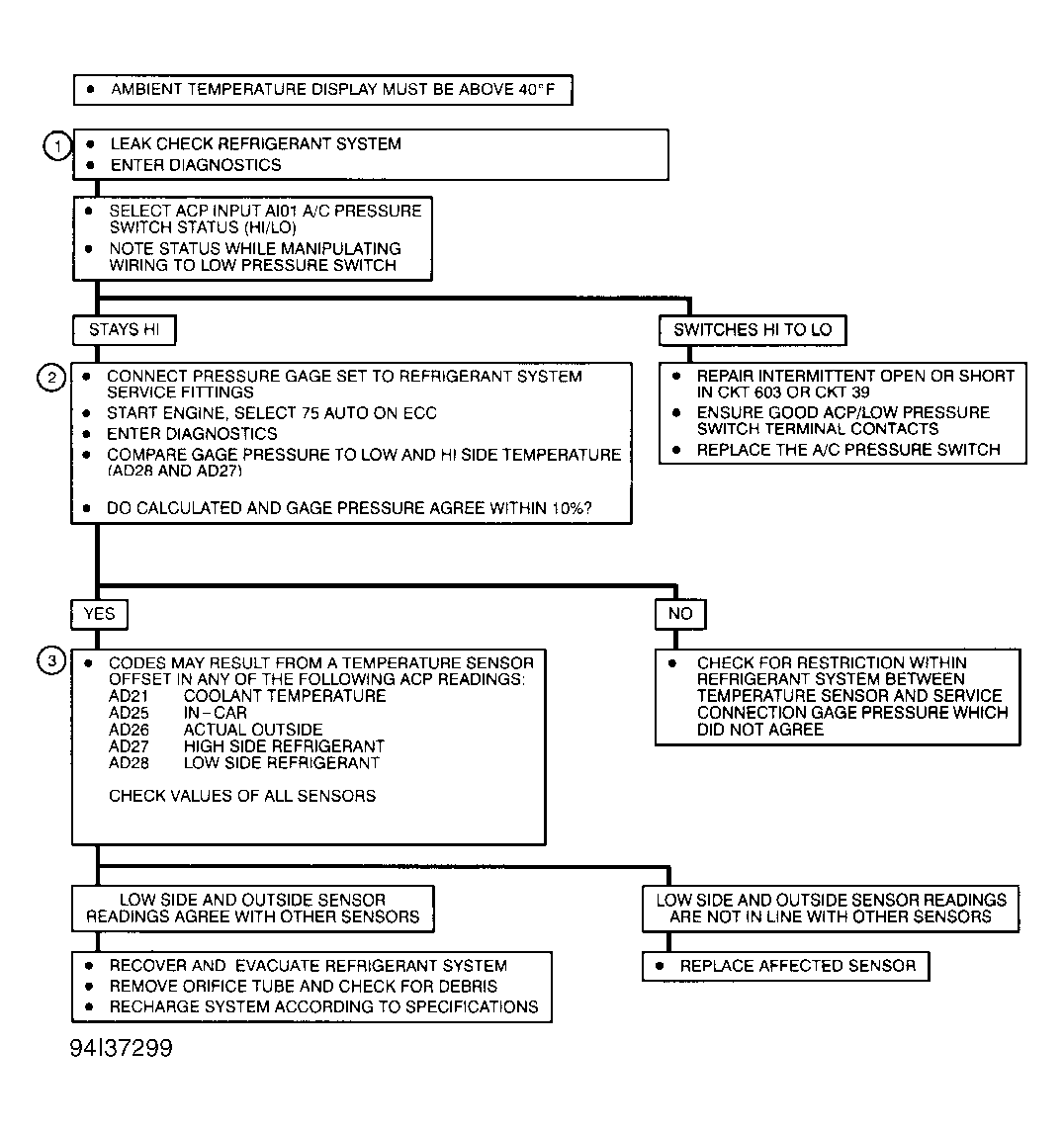

Fig 15: ACP Trouble Code Chart Code A047 (2 of 2)

G94I37299

Courtesy of GENERAL MOTORS CORP.

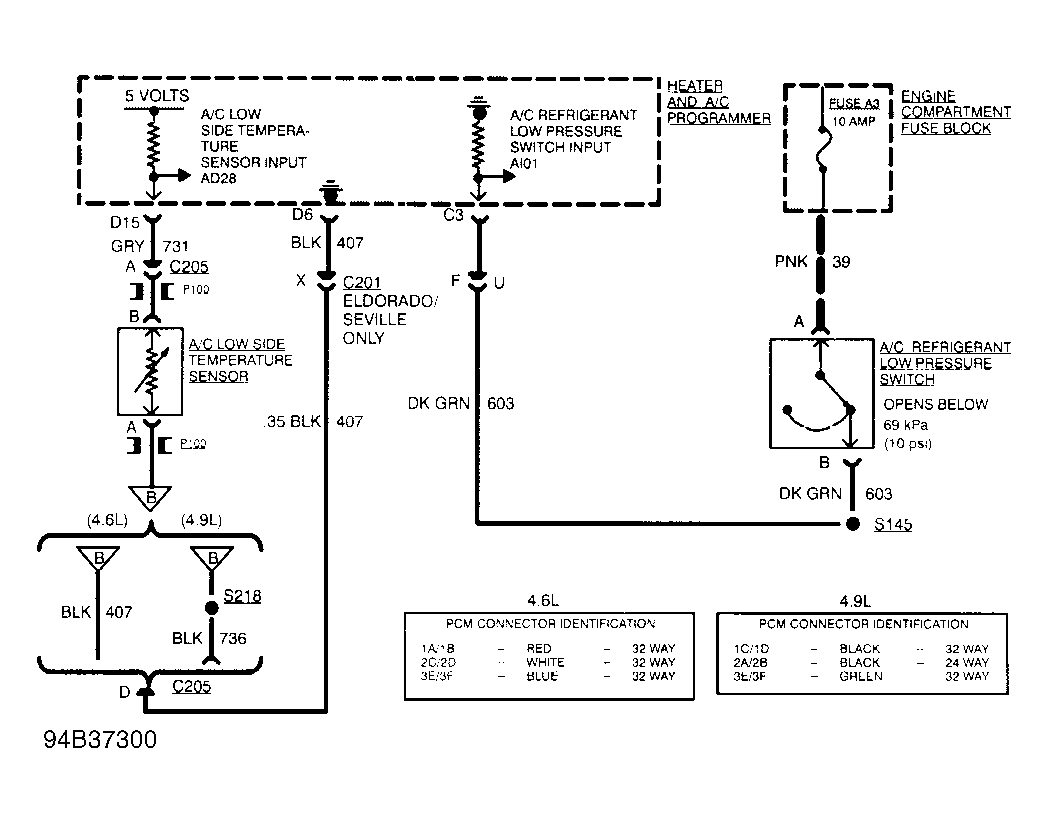

Fig 16: ACP Trouble Code Chart Code A048 (1 of 2)

G94B37300

Courtesy of GENERAL MOTORS CORP.

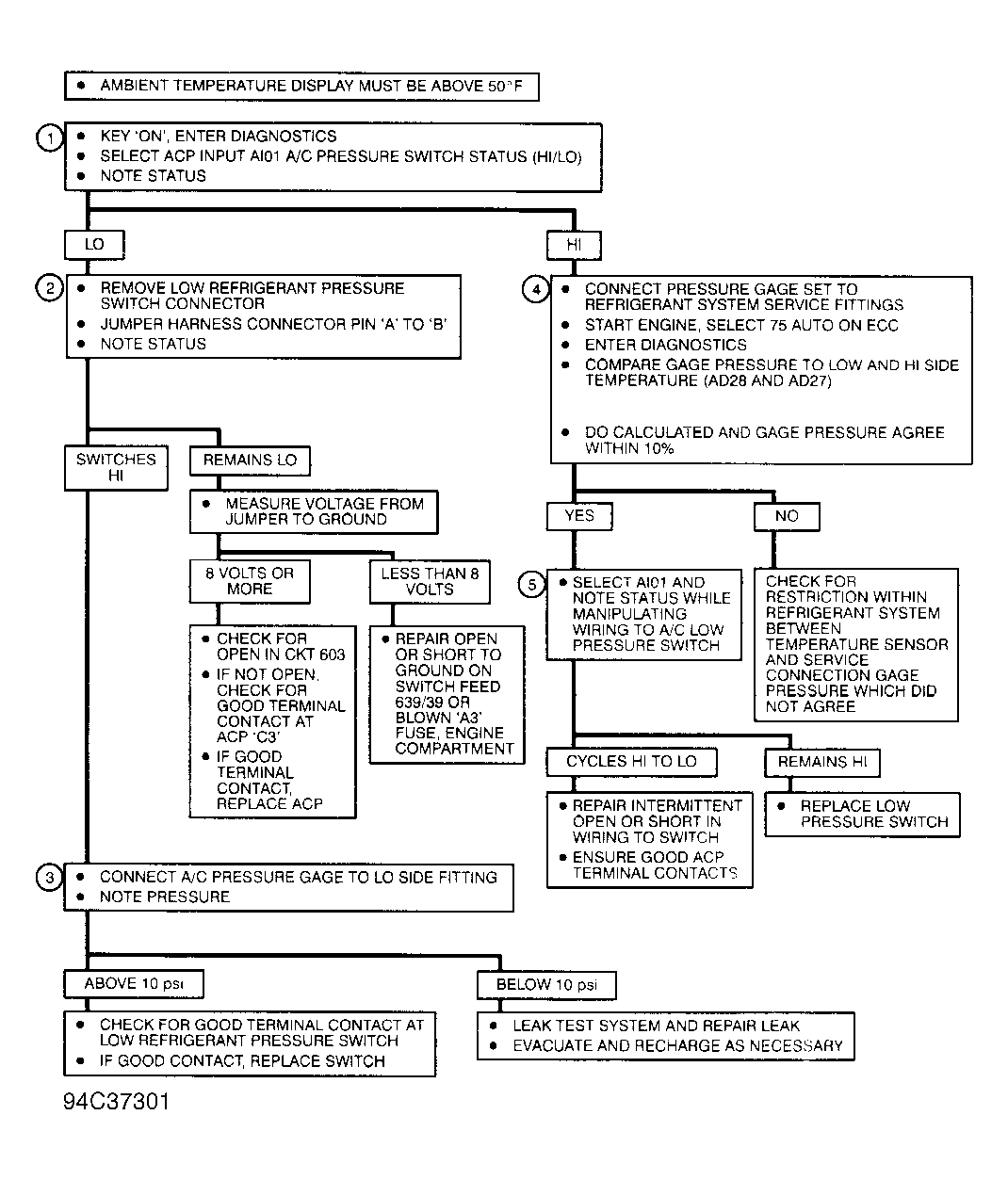

Fig 17: ACP Trouble Code Chart Code A048 (2 of 2)

G94C37301

Courtesy of GENERAL MOTORS CORP.

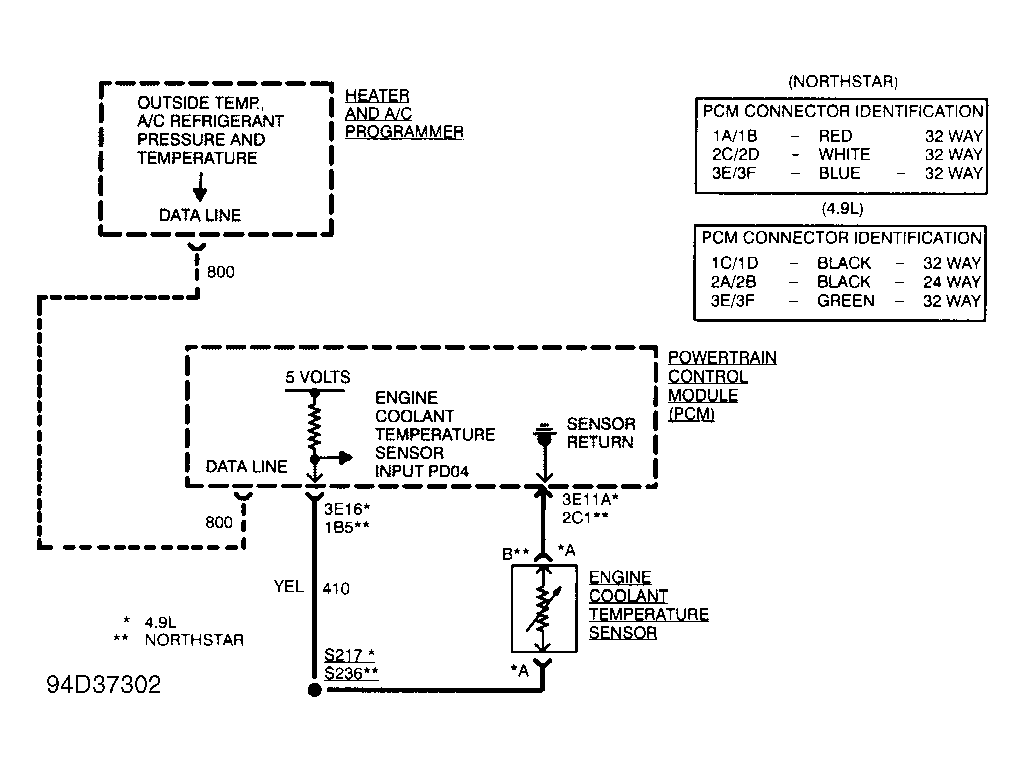

Fig 18: ACP Trouble Code Chart Code A050

G94D37302

Courtesy of GENERAL MOTORS CORP.
