Instrument Panel Junction Block (IPJB)

Instrument panel junction block is located under the center of the instrument panel directly in front of the console. See Fig 1 .

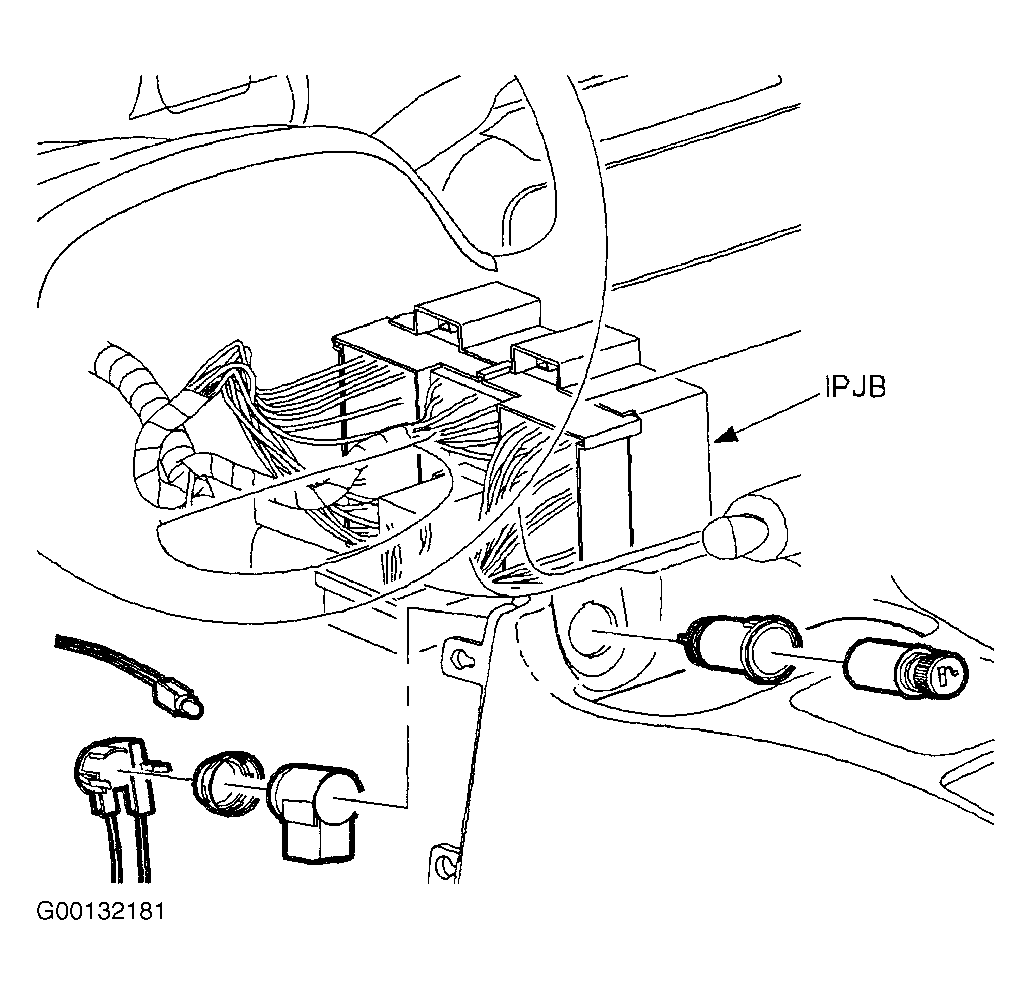

Fig 1: Instrument Panel Junction Block (IPJB) Location

Courtesy of GENERAL MOTORS CORP.

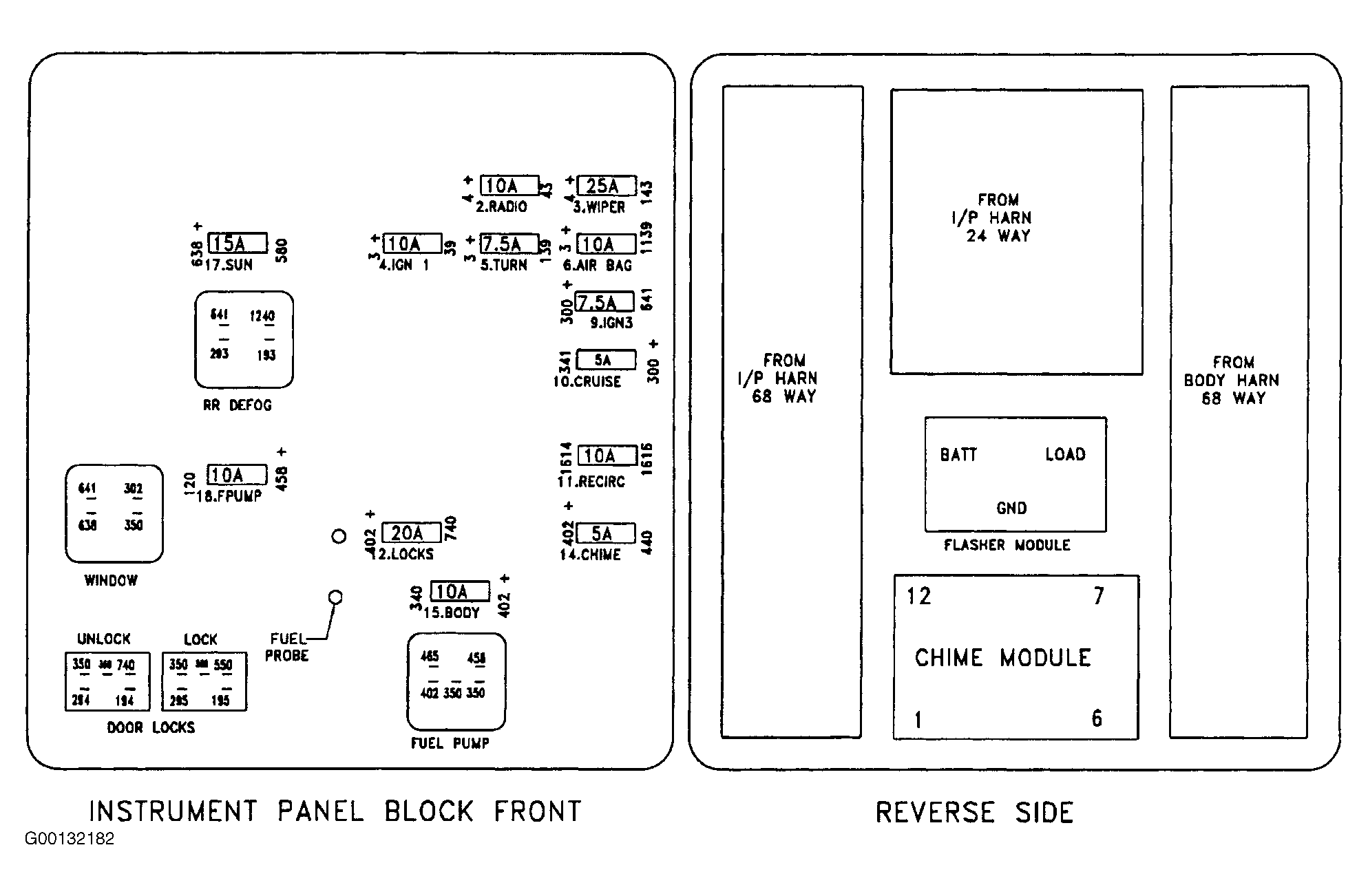

Fig 2: Instrument Panel Junction Block - Identifying Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

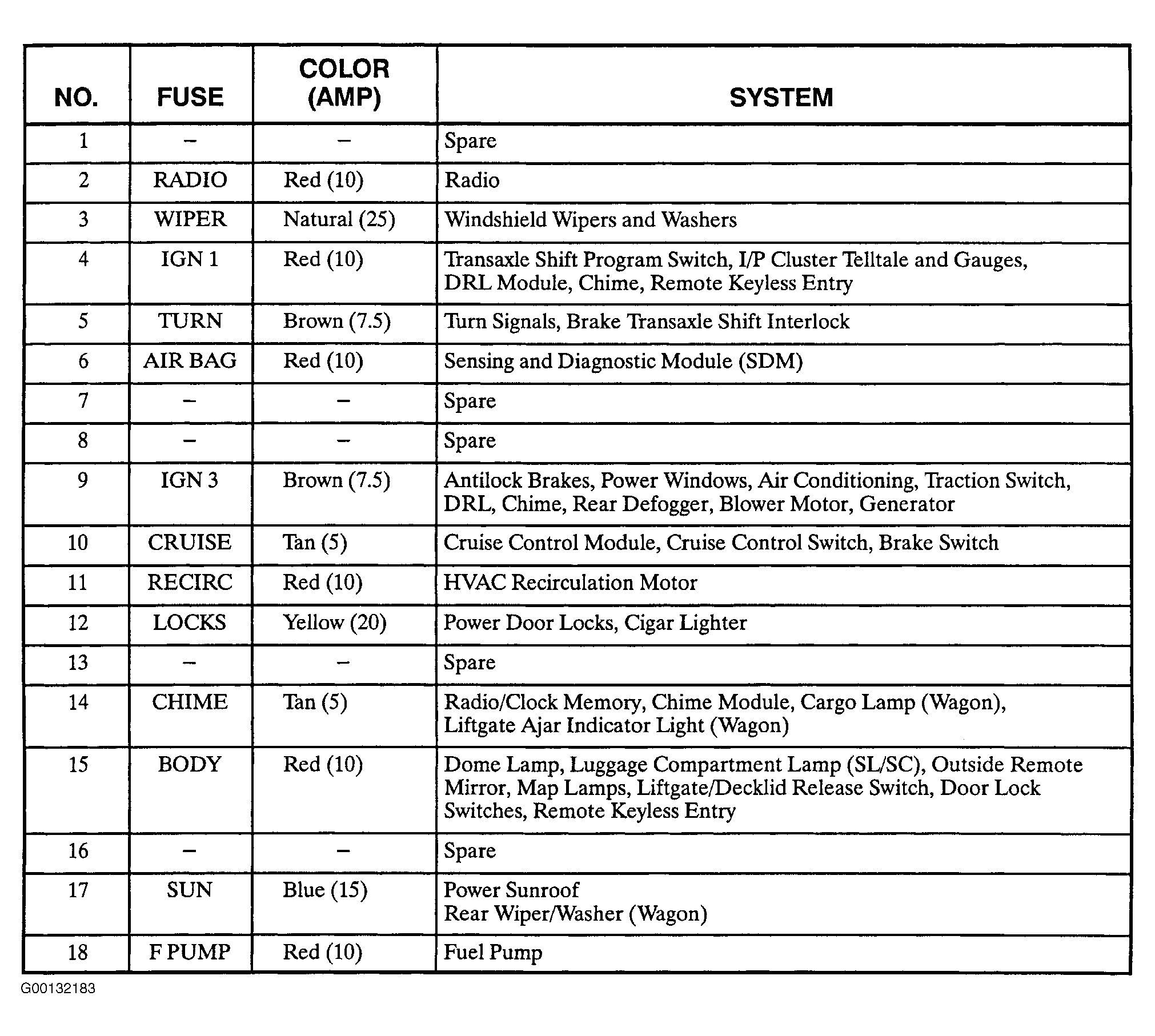

Fig 3: Instrument Panel Junction Block - Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
