Connector Identification
›
Fuel Tank Connectors
›
Fuel Tank Inline (F)
Fuel Tank Inline (F)

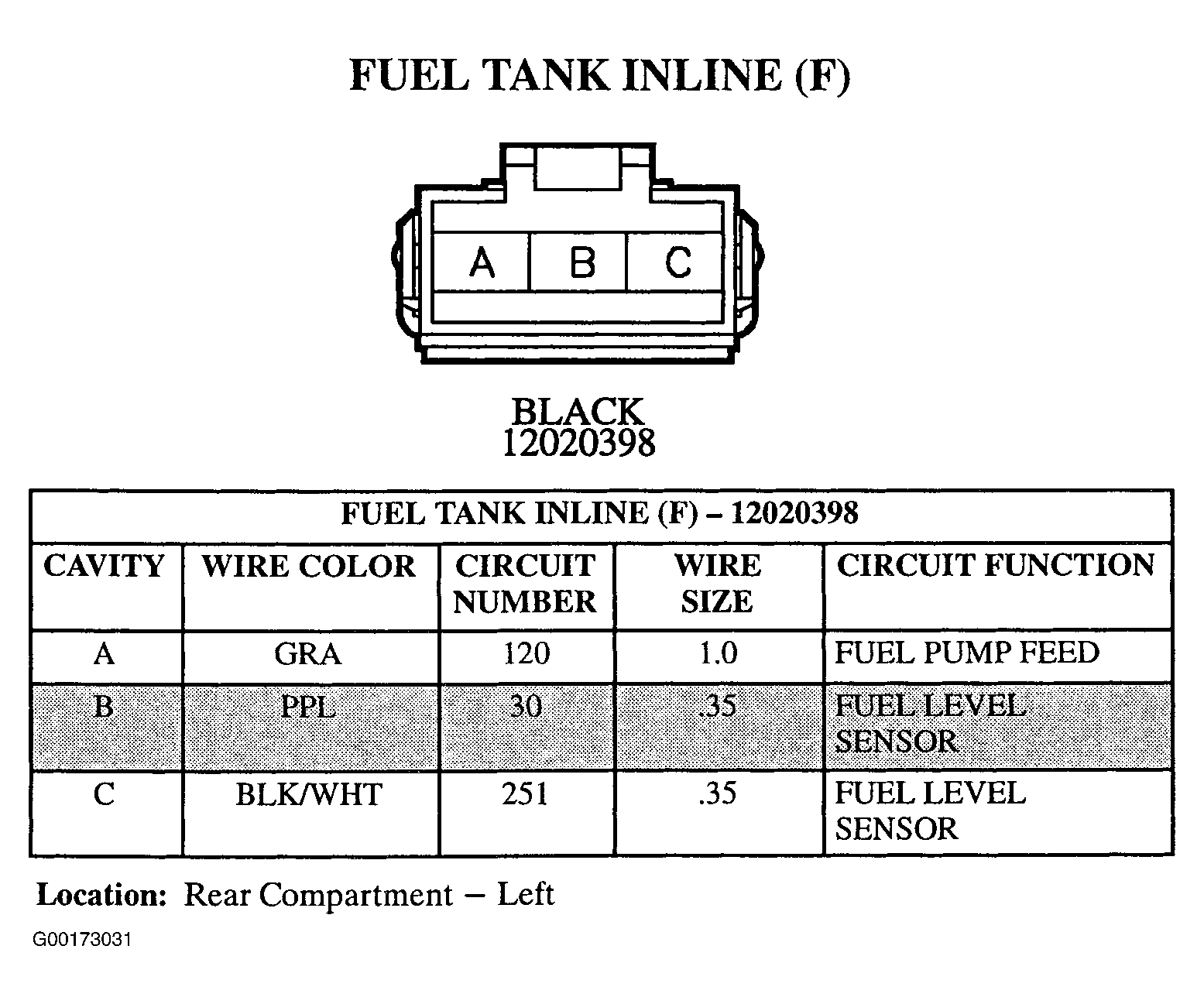

Fig 1: Fuel Tank Inline (F) - 3-Pin Connector (12020398) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
