HVAC Control Head (Mode Lever & Fan Switch Dim ILLUM)

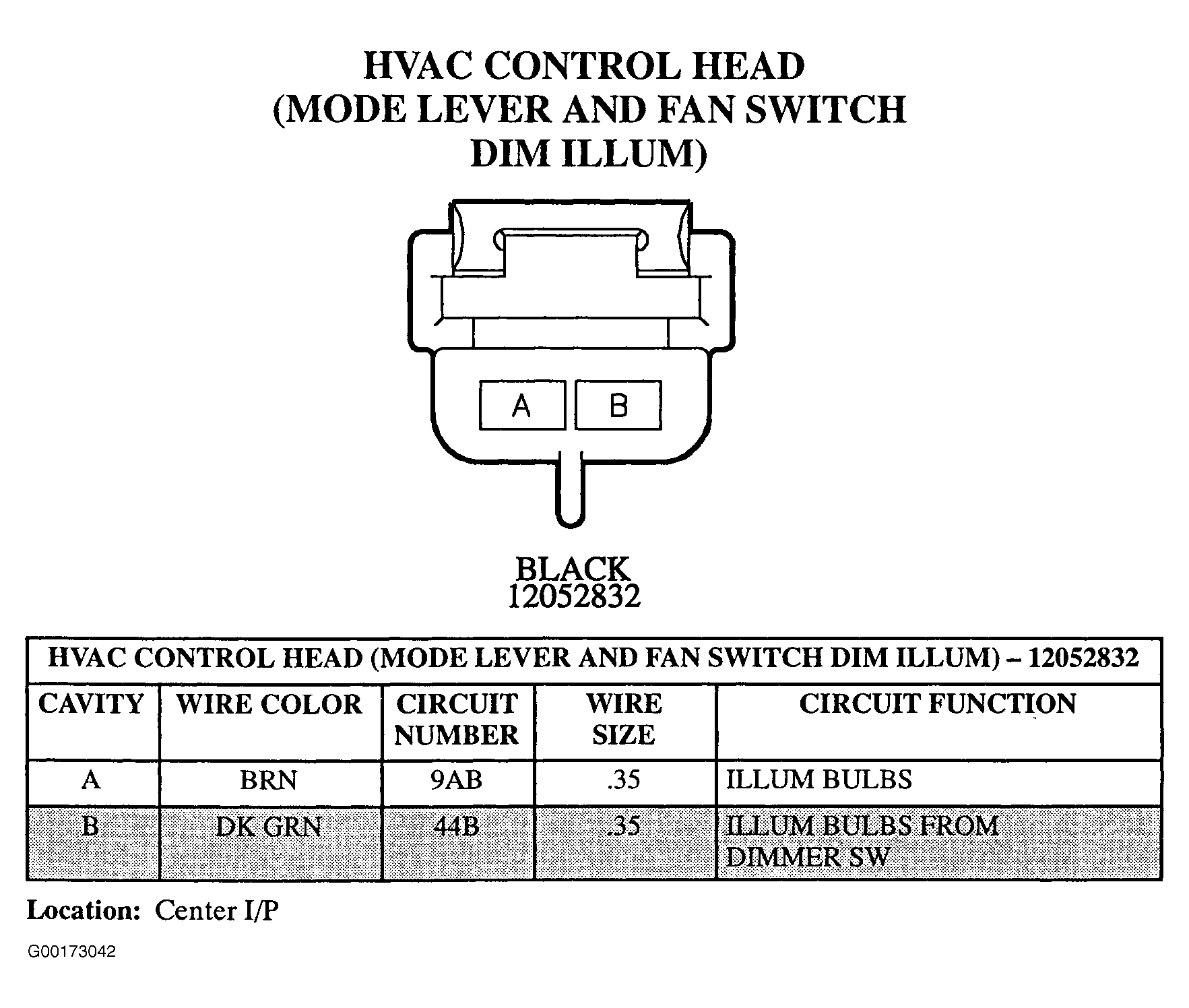

Fig 1: HVAC Control Head (Mode Lever & Fan Switch Dim Illum) - 2-Pin Connector (12052832) - Black
G00173042Courtesy of GENERAL MOTORS CORP.
