Liftgate Release Motor - Wagon

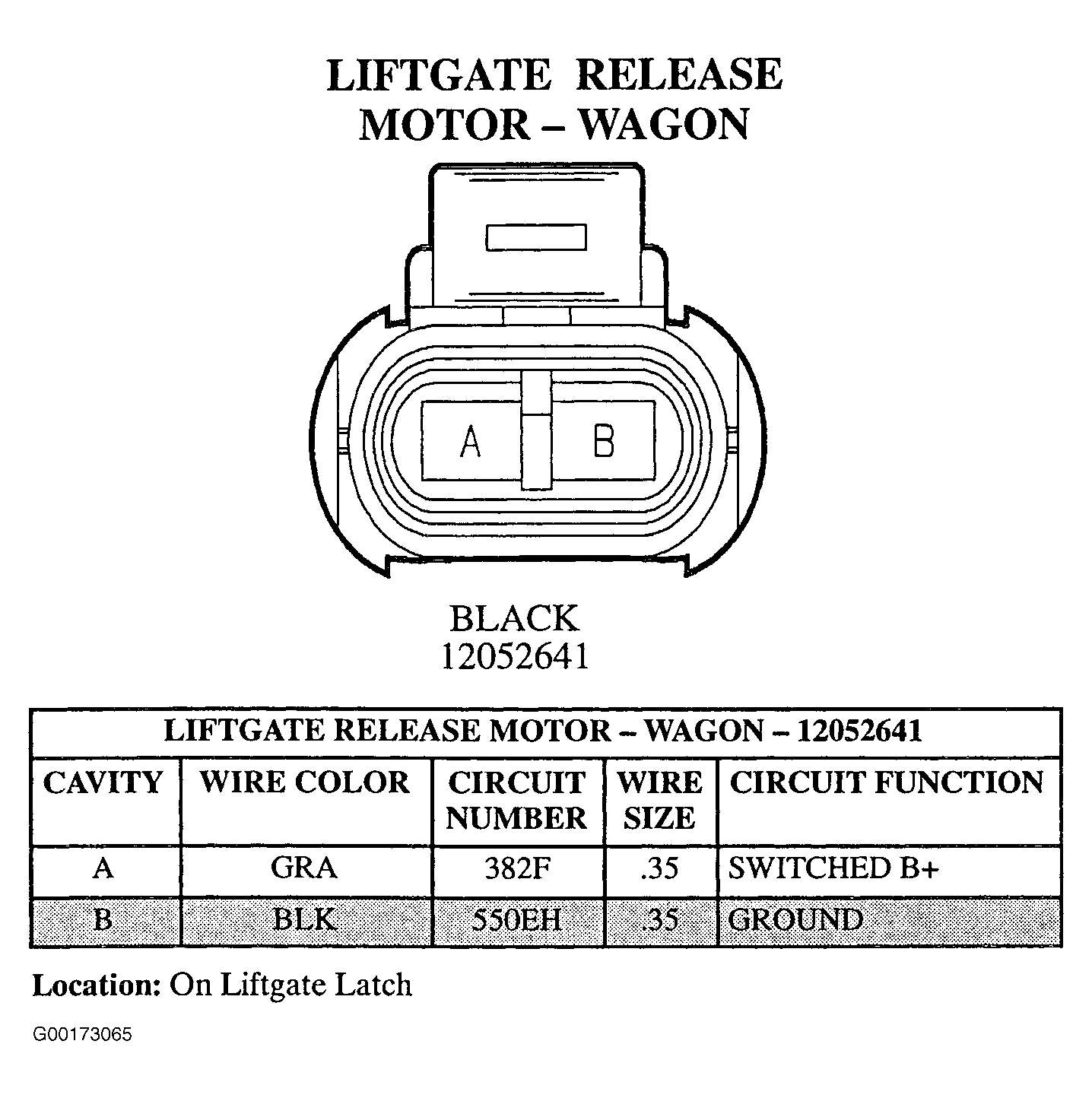

Fig 1: Liftgate Release Motor (Wagon) - 2-Pin Connector (12052641) - Black

G00173065

Courtesy of GENERAL MOTORS CORP.
