Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
Electronic Ignition Module
Electronic Ignition Module

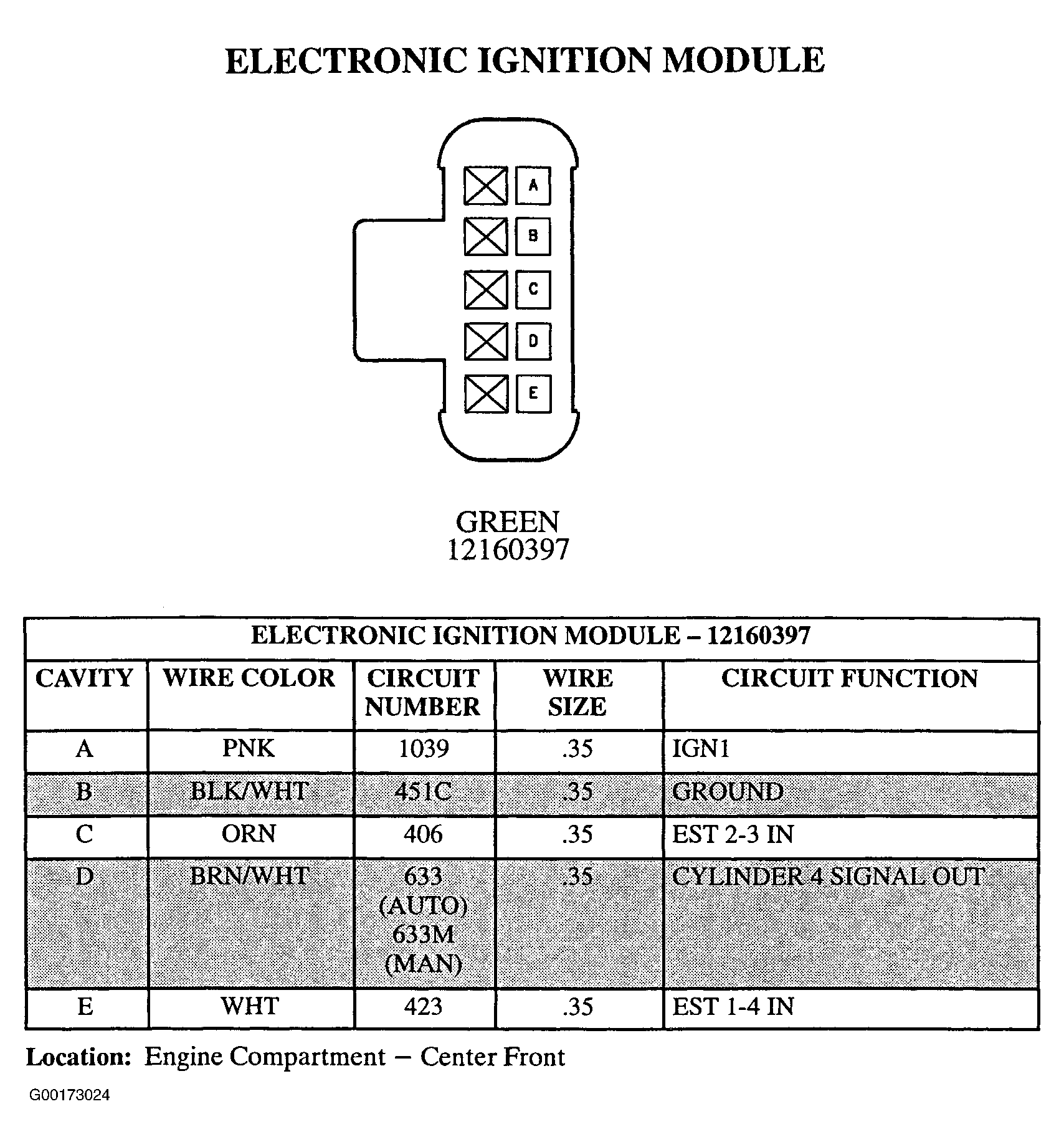

Fig 1: Electronic Ignition Module - 5-Pin Connector (12160397) - Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
