Connector Identification: Generator

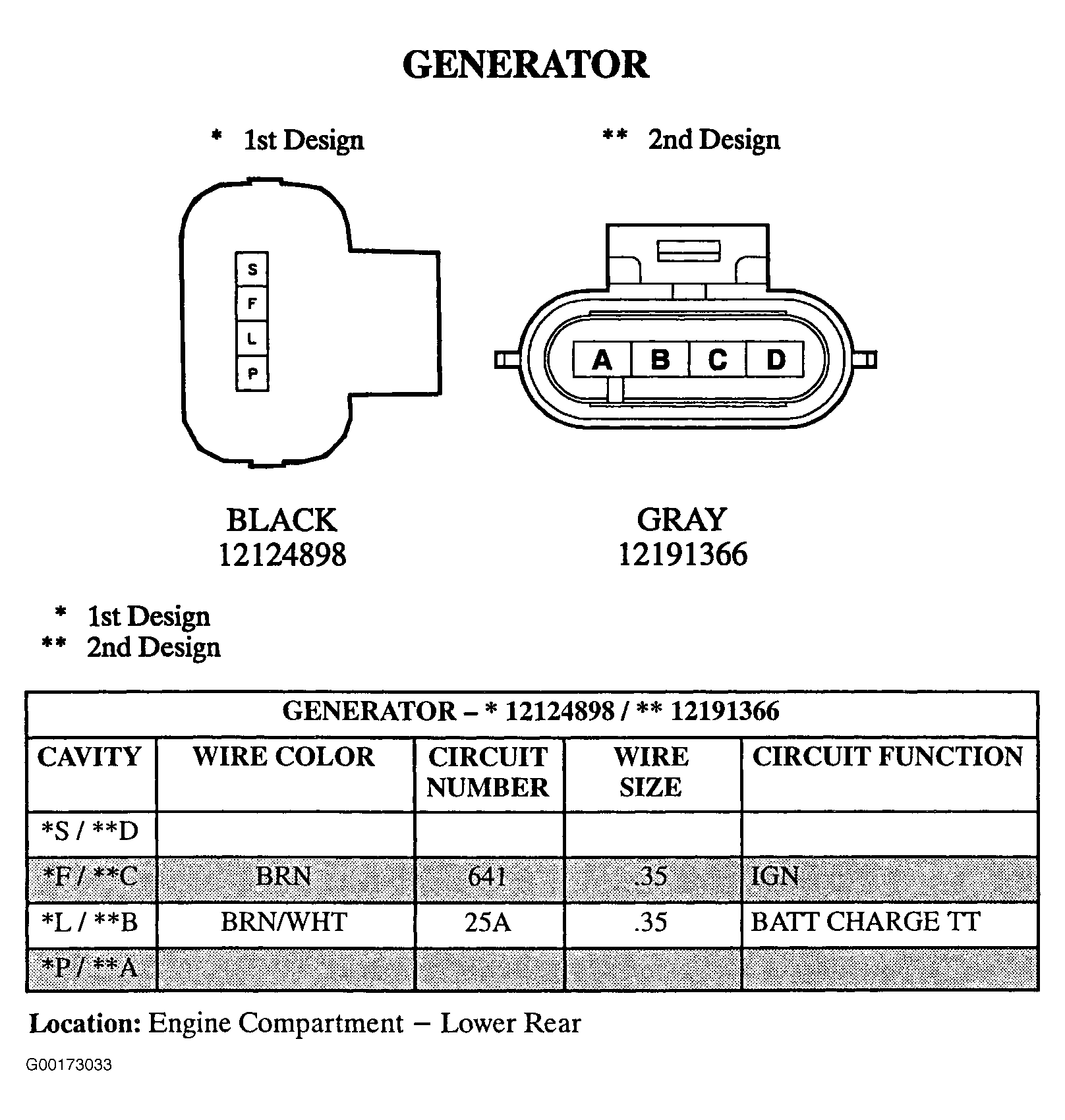

Fig 1: Generator - (1st Design) 4-Pin Connector (12124898) - Black, (2nd Design) 4-Pin Connector (12191366) - Gray
G00173033Courtesy of GENERAL MOTORS CORP.
