Ignition Switch

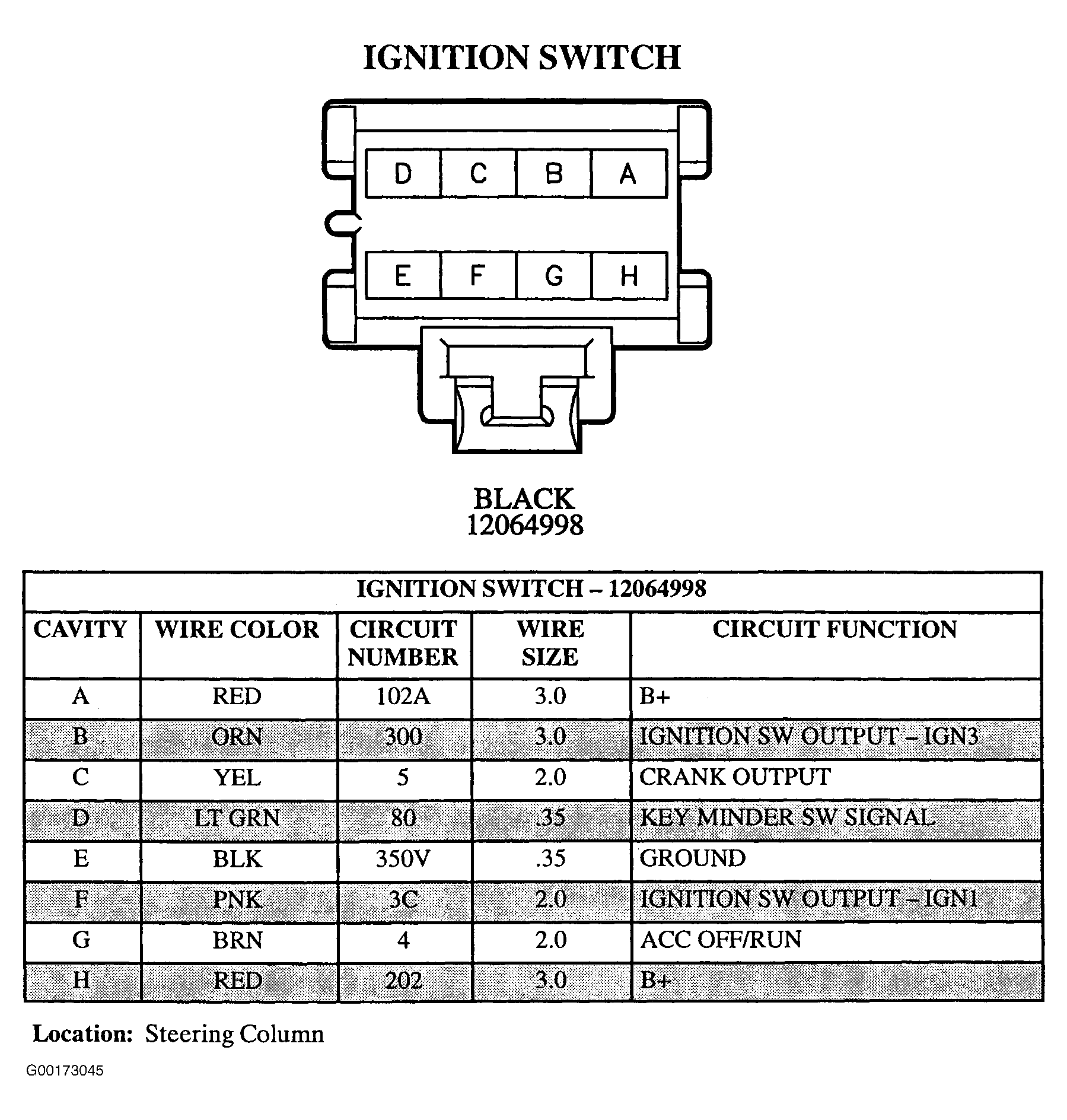

Fig 1: Ignition Switch - 8-Pin Connector (12064998) - Black
G00173045Courtesy of GENERAL MOTORS CORP.
