Home › Saturn › 1997 › SC2 Standard, MP3 › Repair and Diagnosis › Engine Performance › System › Connector Identification › Remote Keyless Entry (RKE) Module

Remote Keyless Entry (RKE) Module

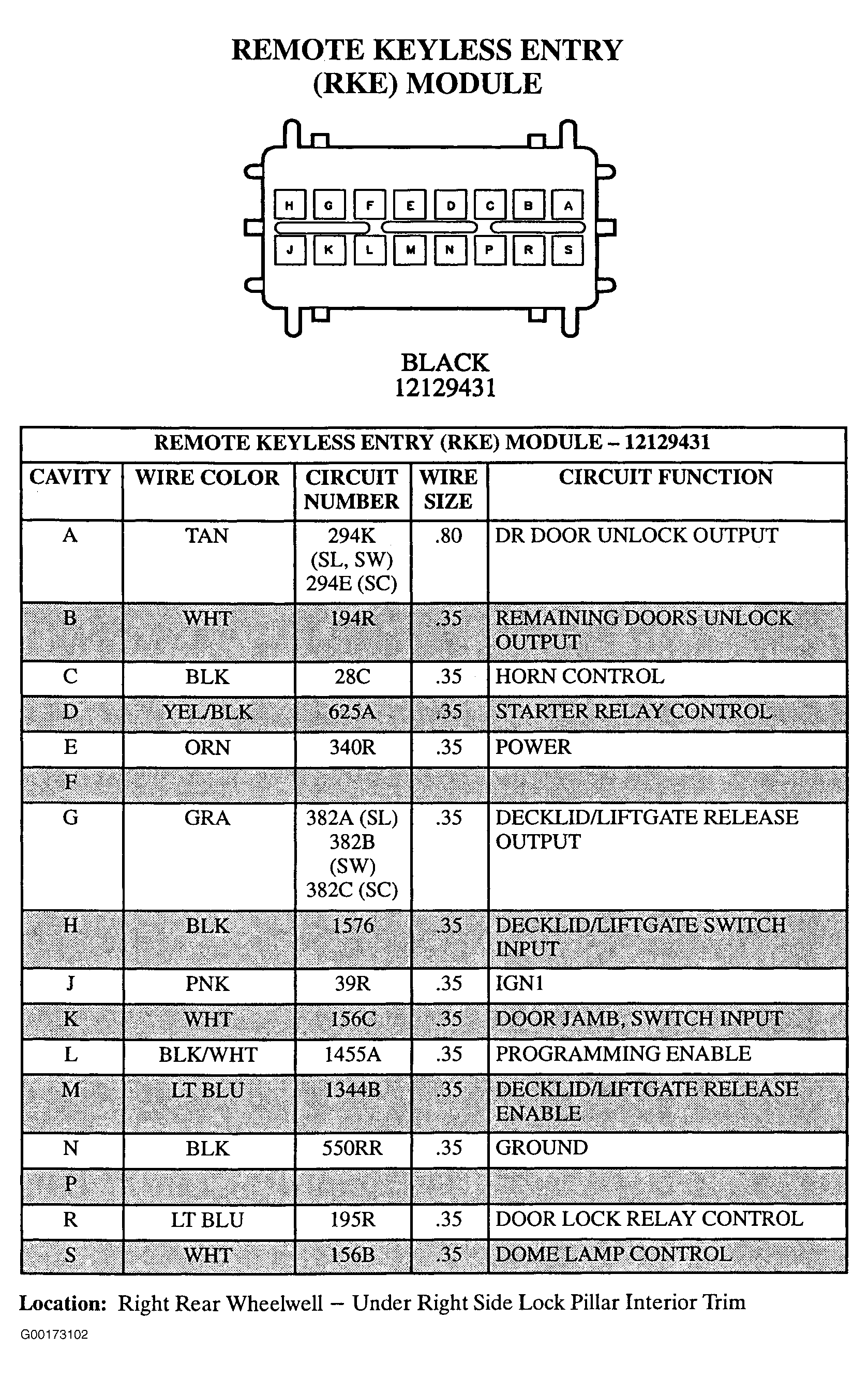

Fig 1: Remote Keyless Entry (RKE) Module - 16-Pin Connector (12129431) - Black
G00173102Courtesy of GENERAL MOTORS CORP.
