Saturn
›
1997
›
SC2 Standard, MP3
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
Sunroof
›
Sunroof Module
Sunroof Module

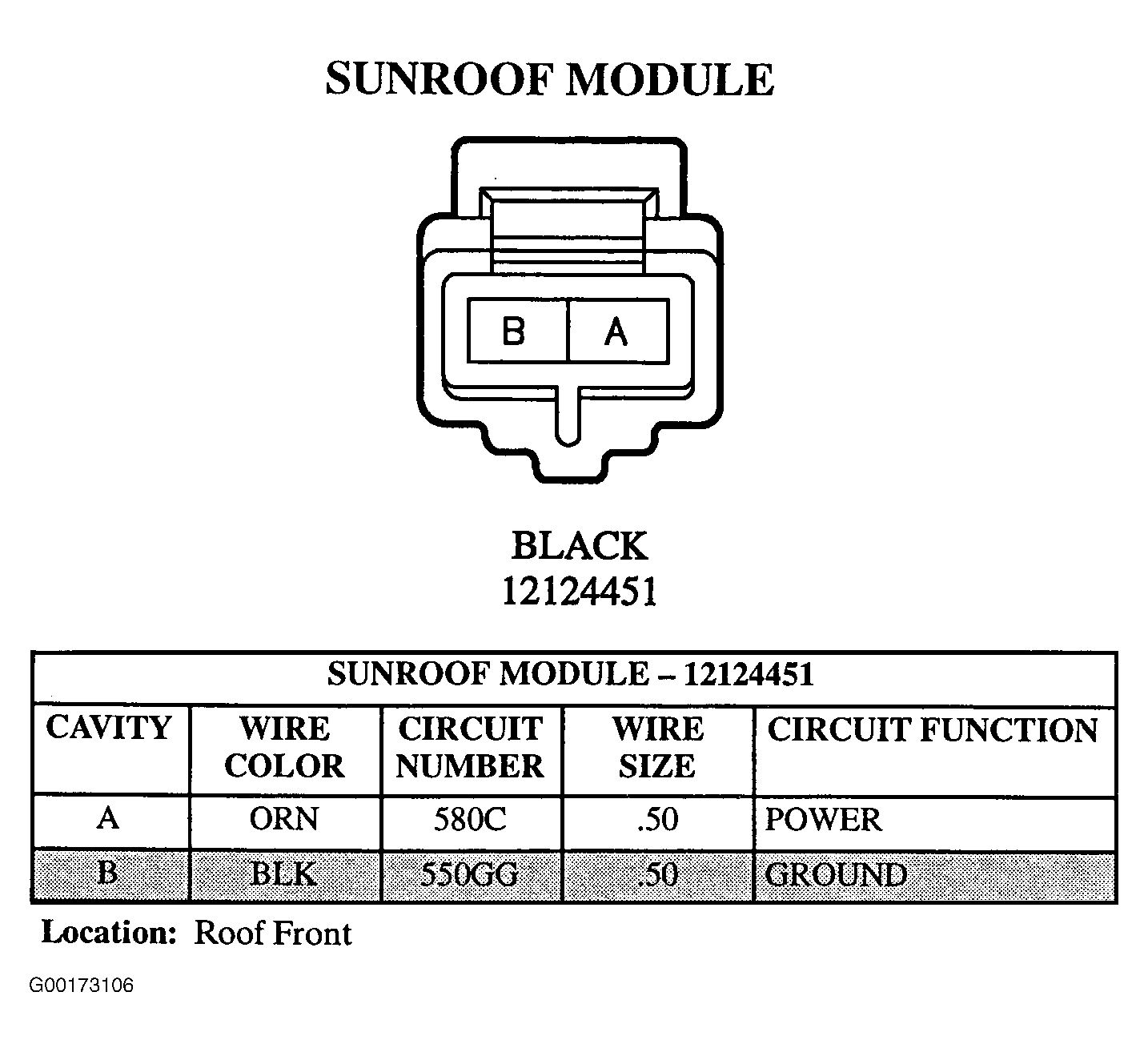

Fig 1: Sunroof Module - 2-Pin Connector (12124451) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
