Connector Identification
›
Transaxle
›
Transaxle Shift Program Switch
Transaxle Shift Program Switch

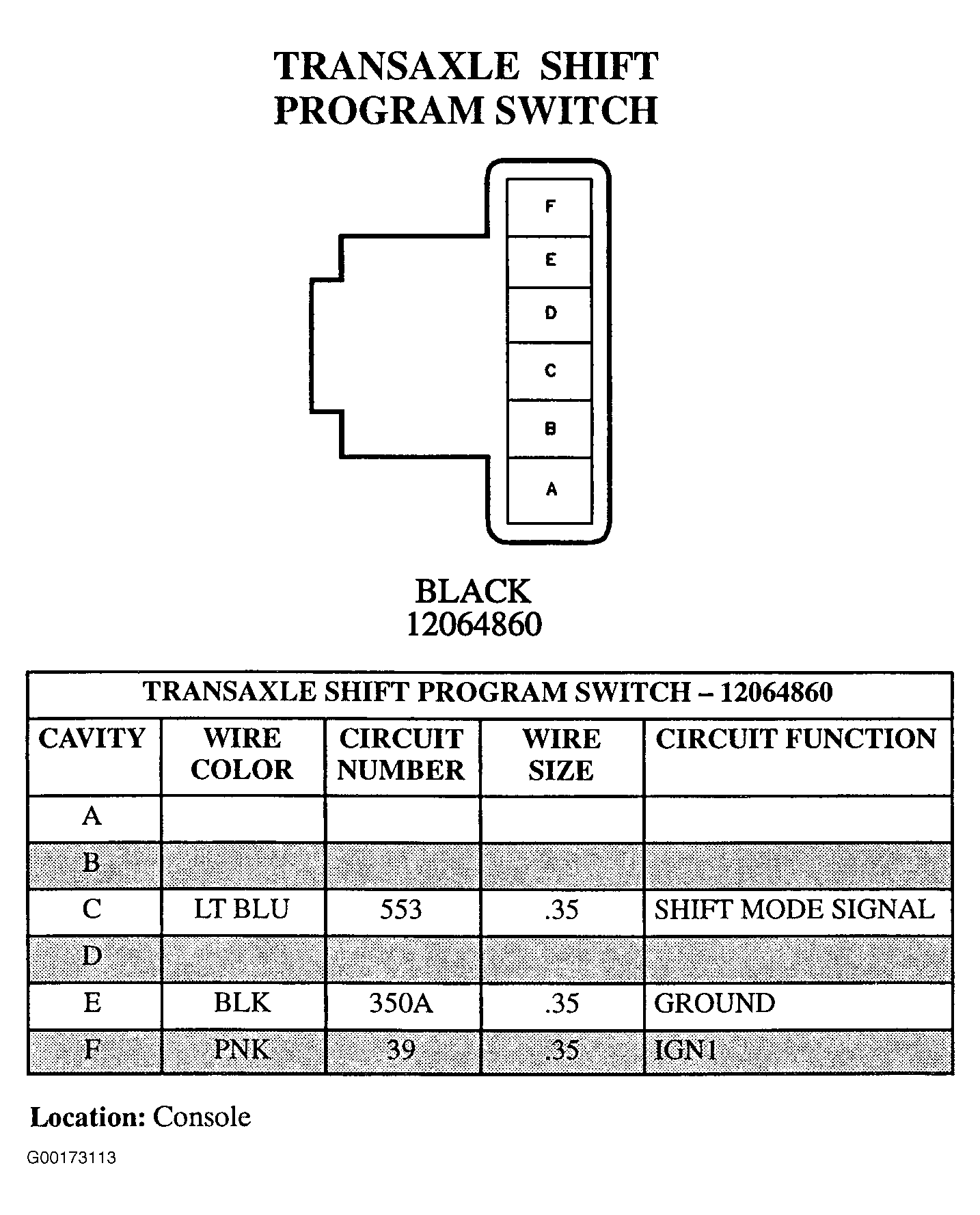

Fig 1: Transaxle Shift Program Switch - 6-Pin Connector (12064860) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
