Connector Identification
›
Fuel Injectors
Fuel Injectors

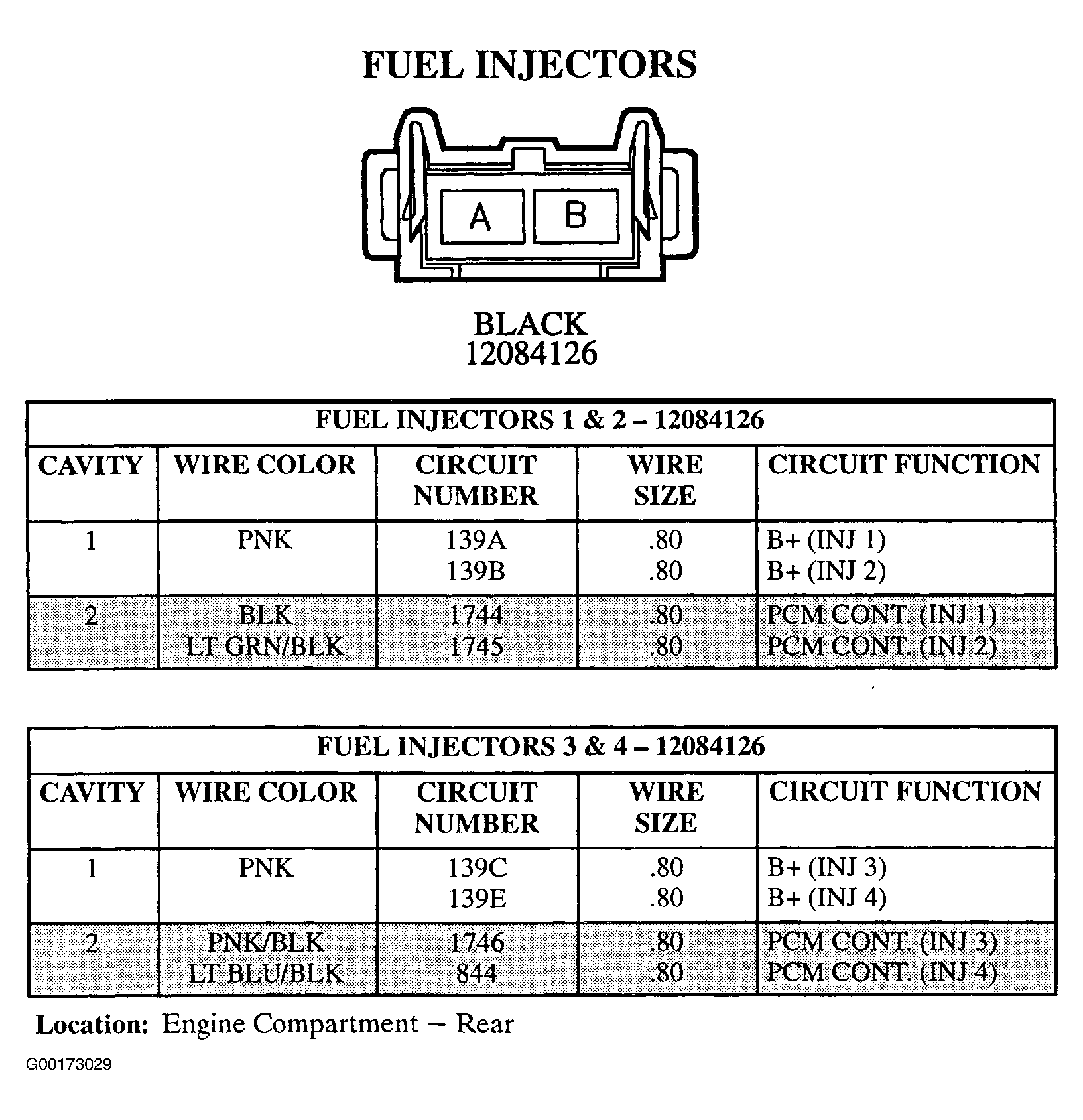

Fig 1: Fuel Injectors - 2-Pin Connector (12084126) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
