Intake Air Temperature Sensor
Intake Air Temperature Sensor

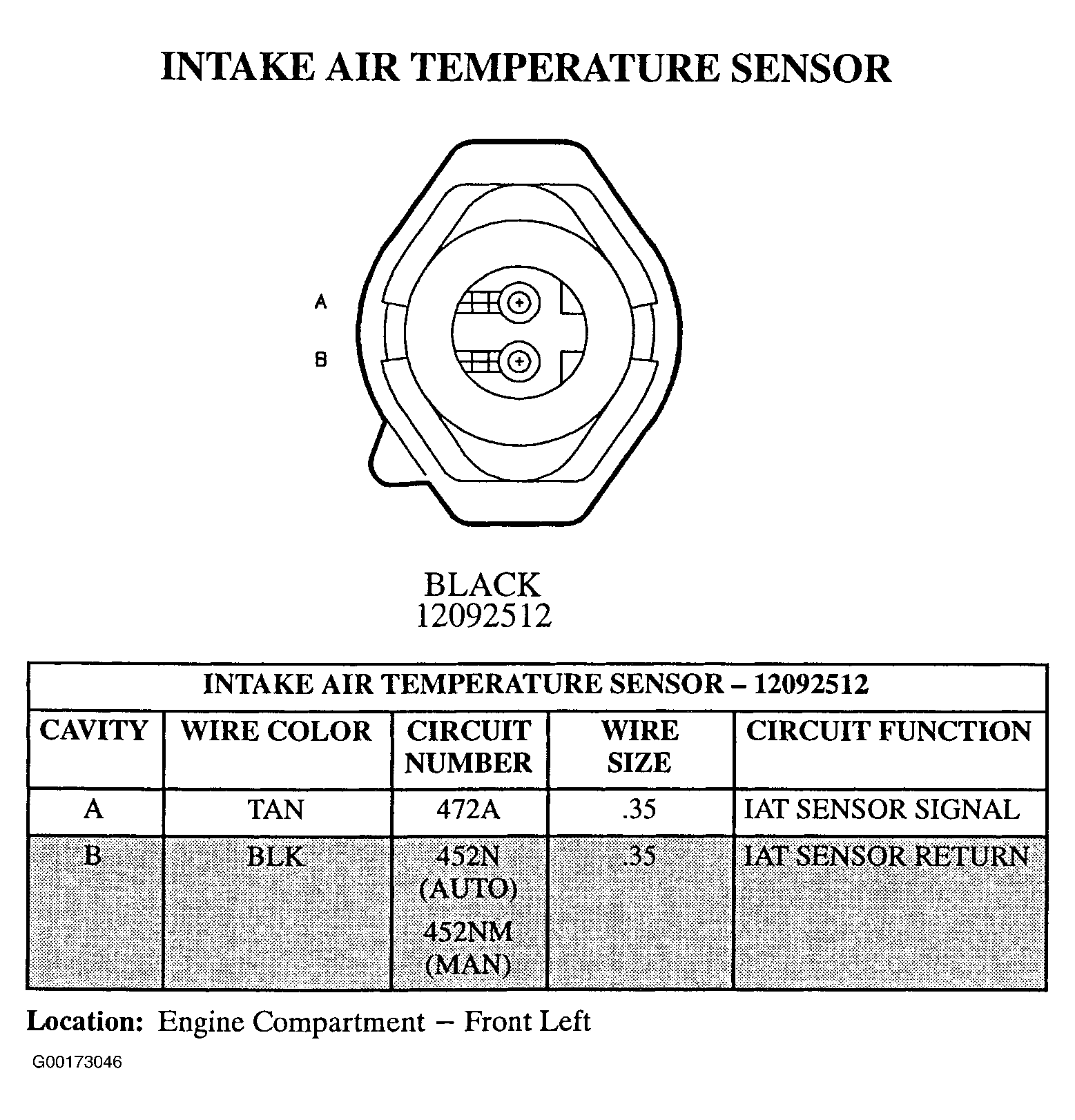

Fig 1: Intake Air Temperature Sensor - 2-Pin Connector (12092512) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
