Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
Sensing & Diagnostic Module
Sensing & Diagnostic Module

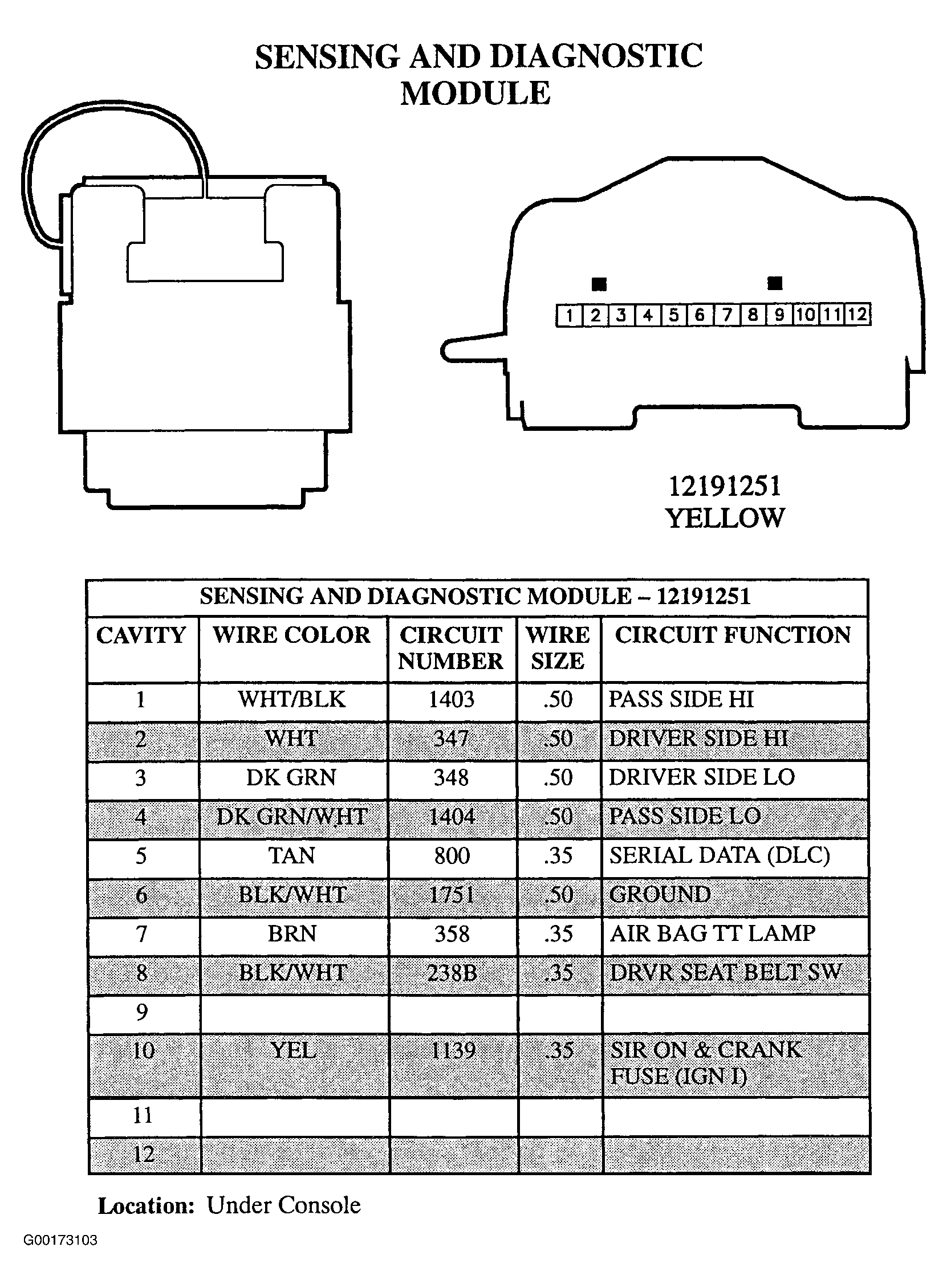

Fig 1: Sensing & Diagnostic Module - 12-Pin Connector (12191251) - Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
