Remote Keyless Entry Programming - Manual Update (97-T-32)

Publication date: 1997-08-01
Reference number: 97-T-32

REMOTE KEYLESS ENTRY PROGRAMMING - MANUAL UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 97-T-32, Date of Issue: August, 1997

SERVICE MANUAL UPDATE FOR REMOTE KEYLESS ENTRY/SATURN SECURITY SYSTEM PROGRAMMING INSTRUCTIONS

APPLICATION

Model: 1997 Saturns

Group/Seq. No.: Electrical - 07

Corporation No.: 789001

Bulletin No.: 97-T-32

Date: August, 1997

NOTE: This is a Service Manual update.

VEHICLES AFFECTED

1997 Saturns with remote keyless entry/Saturn security system (RKE/SSS) option (AU0).

PURPOSE

This bulletin is being issued to revised Step 4 of the RKE/SSS programming section in the 1997 Revised Electrical Service Manual has been changed. Please replace page "132-32 Remote Keyless Entry/Security System ELPD" with the attached new page 132-32. See Fig 1 .

NOTE: The change to step 4 is underlined and shown in bolded text. See Fig 1 .

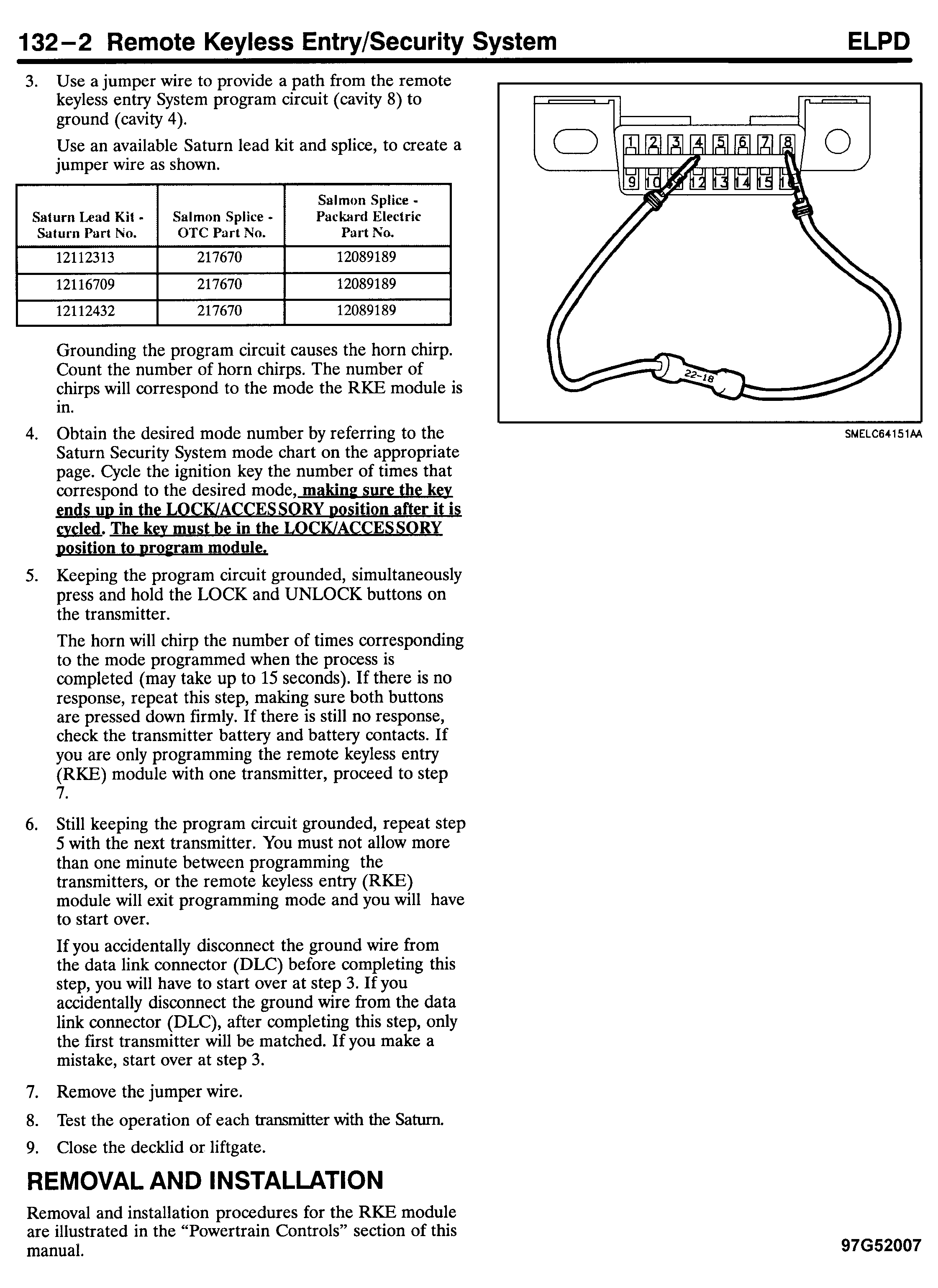

Fig 1: 1997 Revised Electrical Service Manual, Pg. 132-32
