Connector Identification
›
Driver Inflator
›
Driver Inflator
Driver Inflator

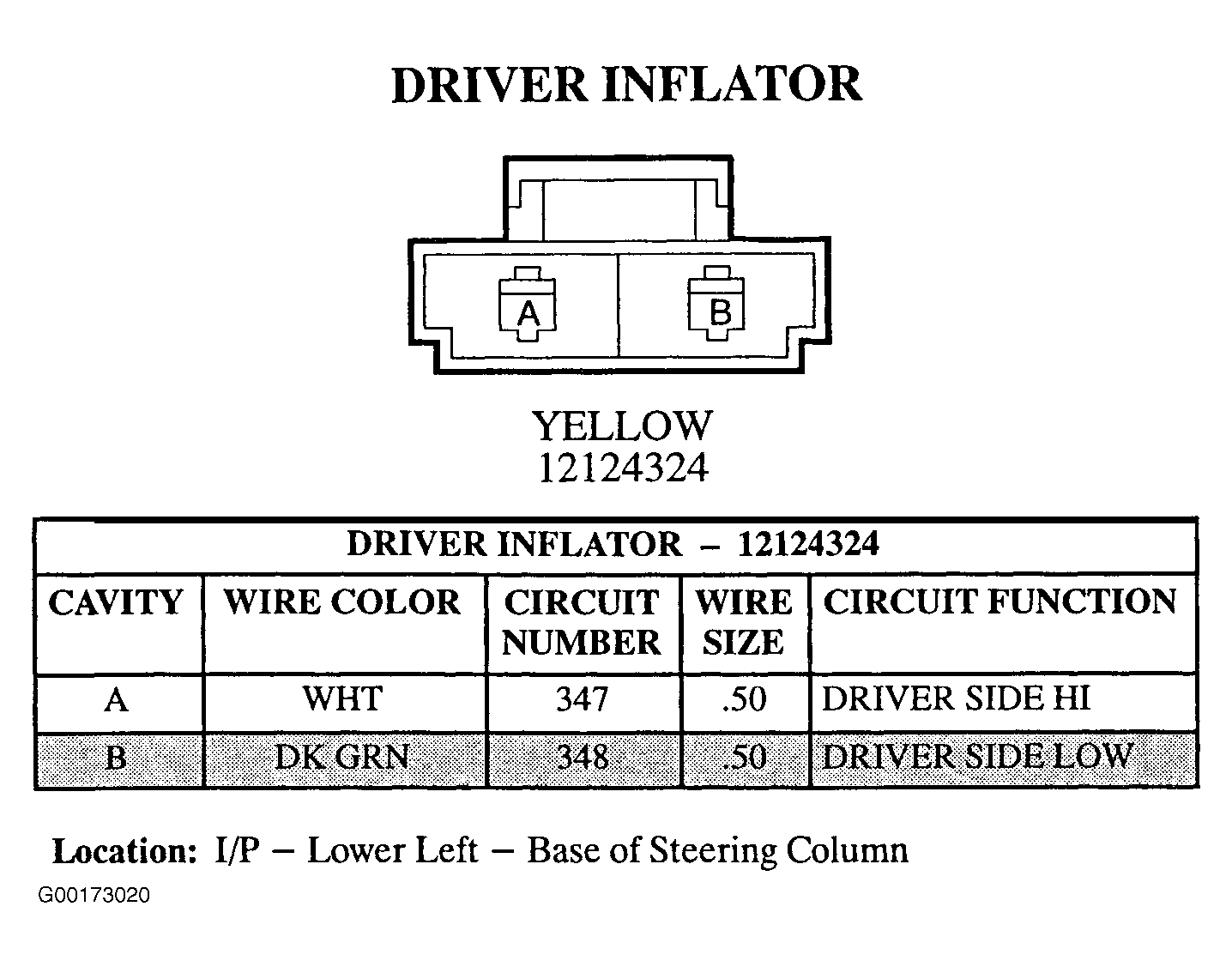

Fig 1: Driver Inflator - 2-Pin Connector (12124324) - Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
