Connector Identification
›
Abs Connectors
›
Abs Motors
Abs Motors

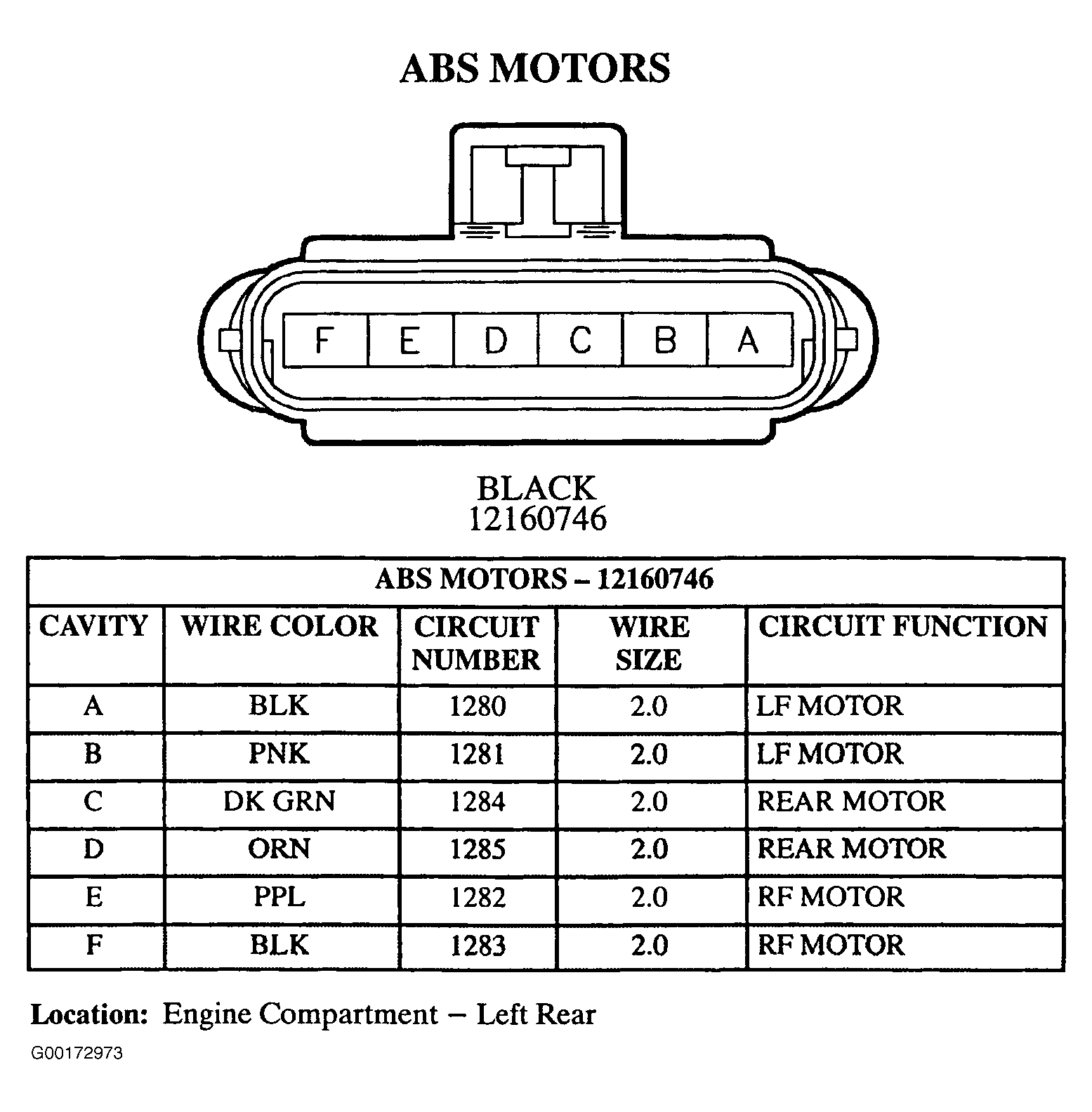

Fig 1: ABS Motors - 6-Pin Connector (12160746) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
