Connector Identification
›
Heated Oxygen Sensor
Heated Oxygen Sensor

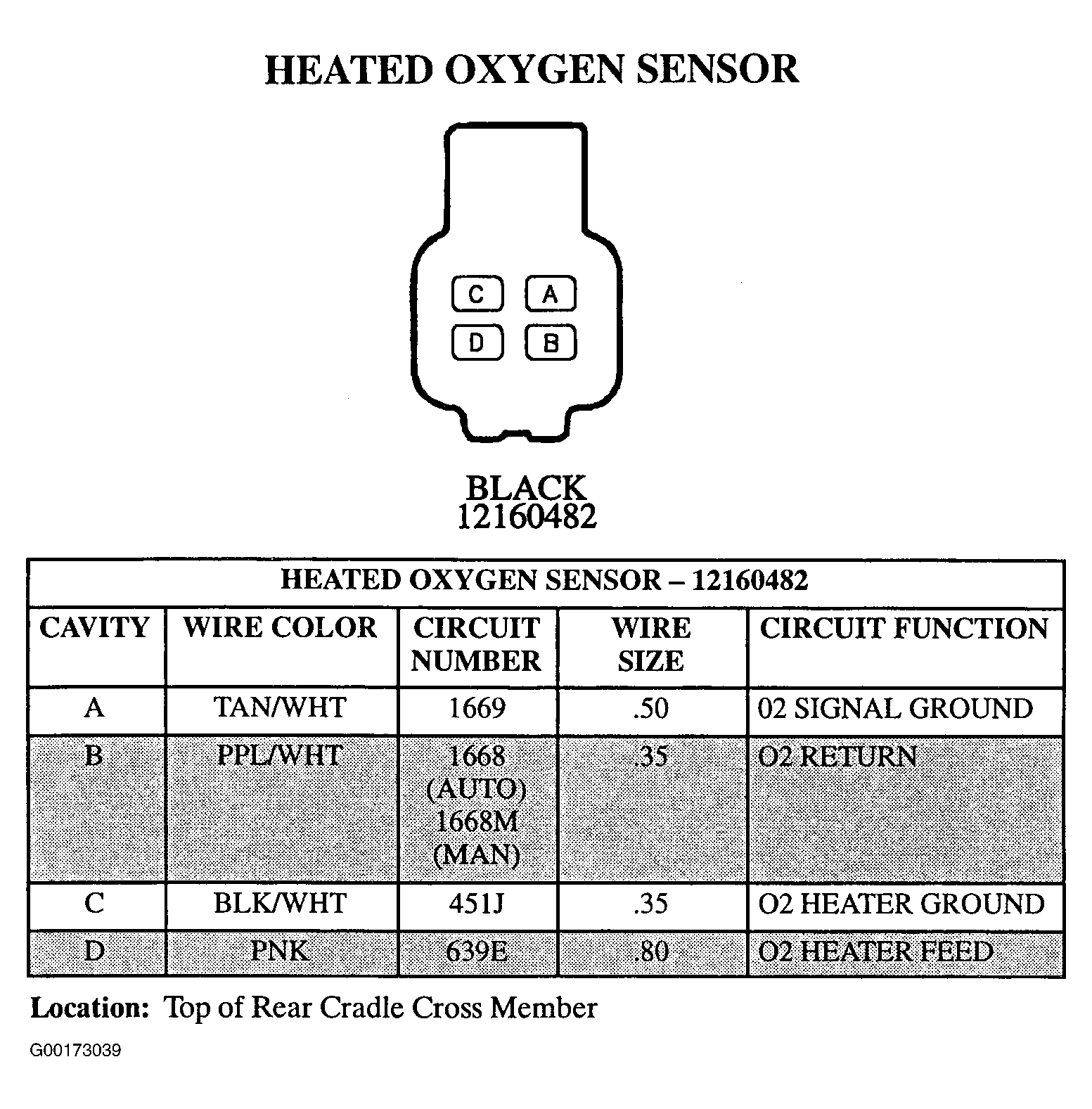

Fig 1: Heated Oxygen Sensor - 4-Pin Connector (12160482) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
