Home › Saturn › 1997 › SL2 Automatic, MP6 › Repair and Diagnosis › Engine Performance › System › Connector Identification › Idle Air Control

Idle Air Control

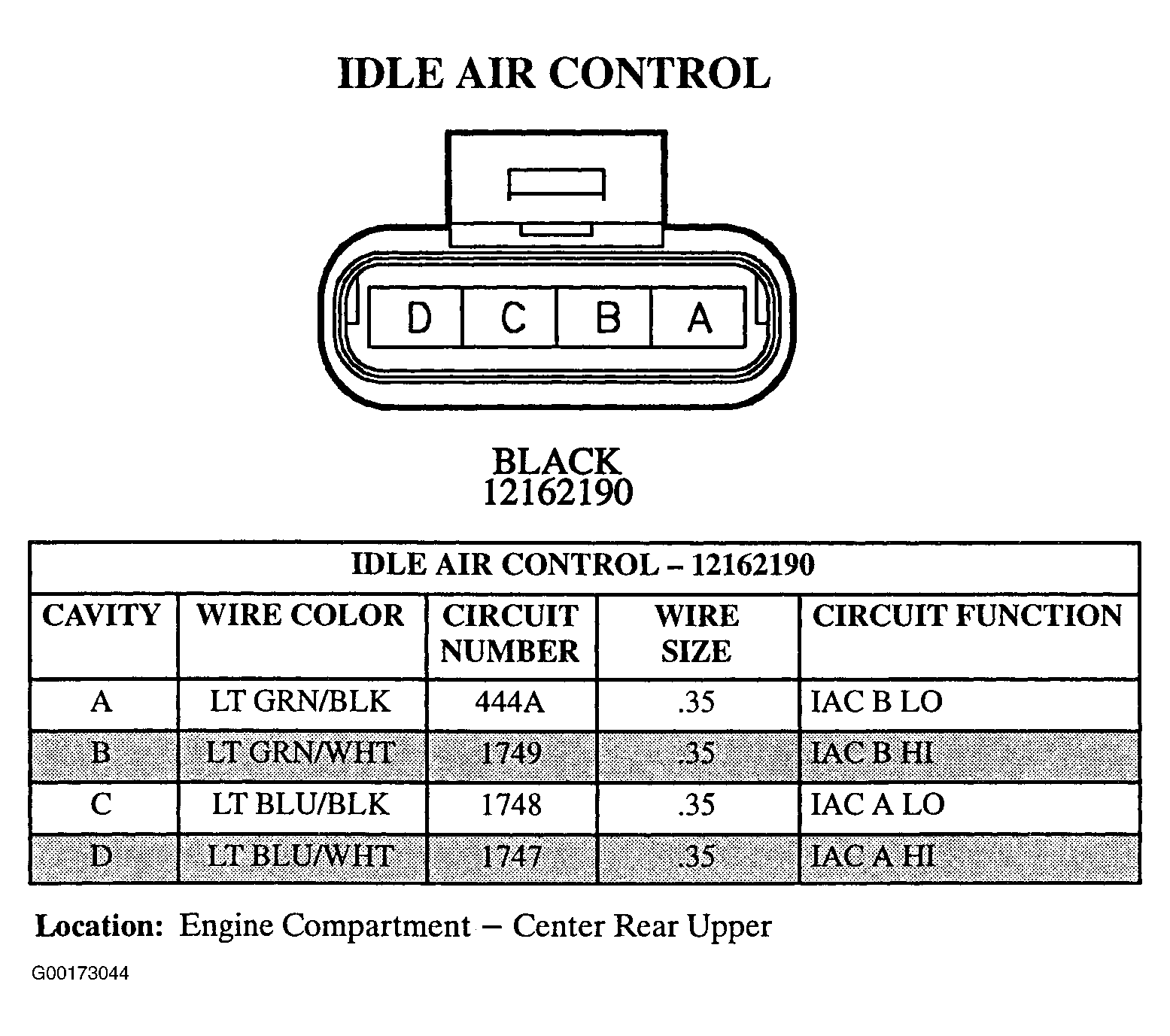

Fig 1: Idle Air Control - 4-Pin Connector (12162190) - Black
G00173044Courtesy of GENERAL MOTORS CORP.
