Saturn
›
1997
›
SL2 Automatic, MP6
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
Passenger Inflator
Passenger Inflator

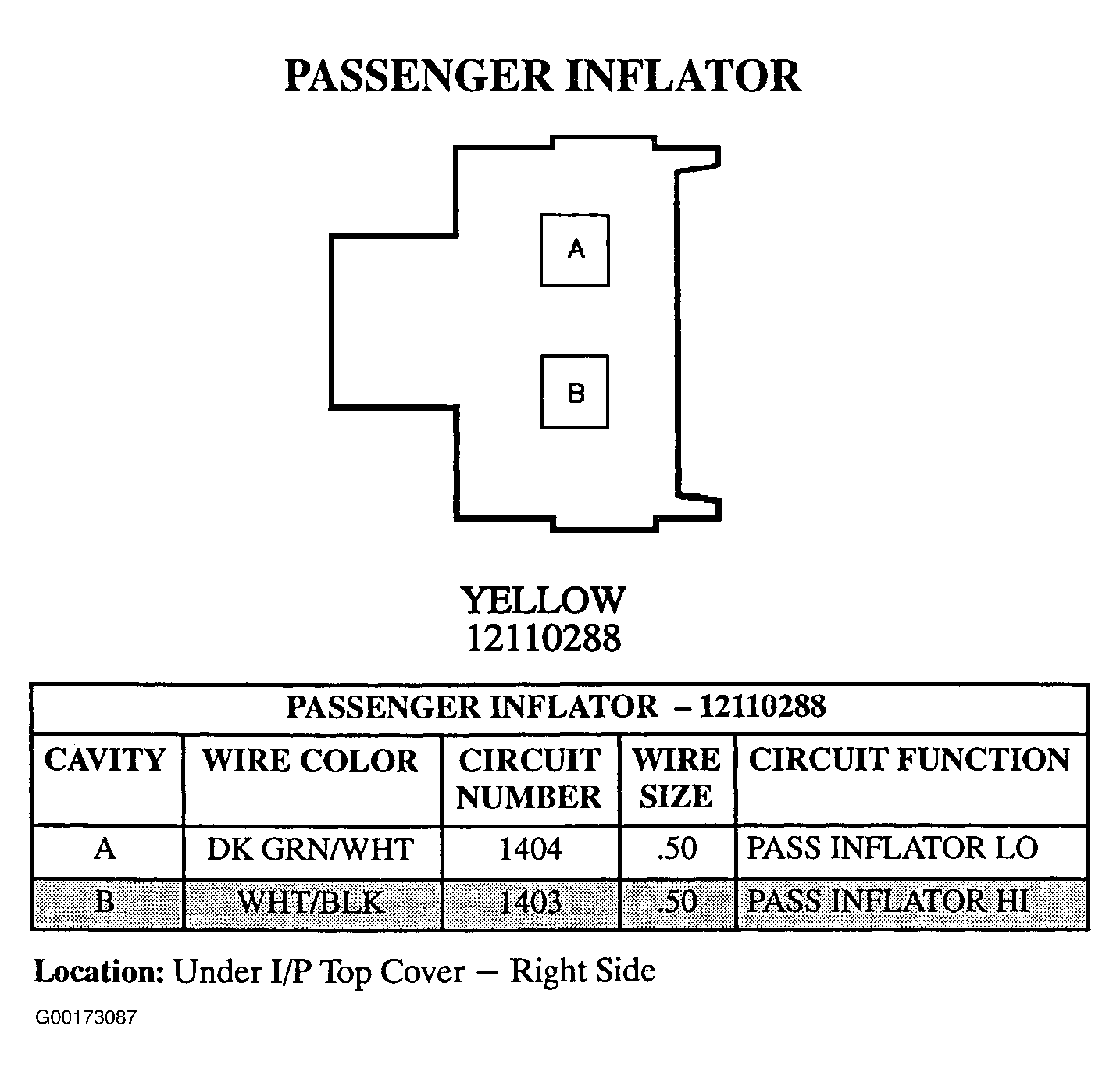

Fig 1: Passenger Inflator - 2-Pin Connector (12110288) - Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
