Saturn
›
1997
›
SW1 Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
DECKLID Connectors
›
DECKLID (SC/SL) Or Liftgate (SW) Release Switch
DECKLID (SC/SL) Or Liftgate (SW) Release Switch

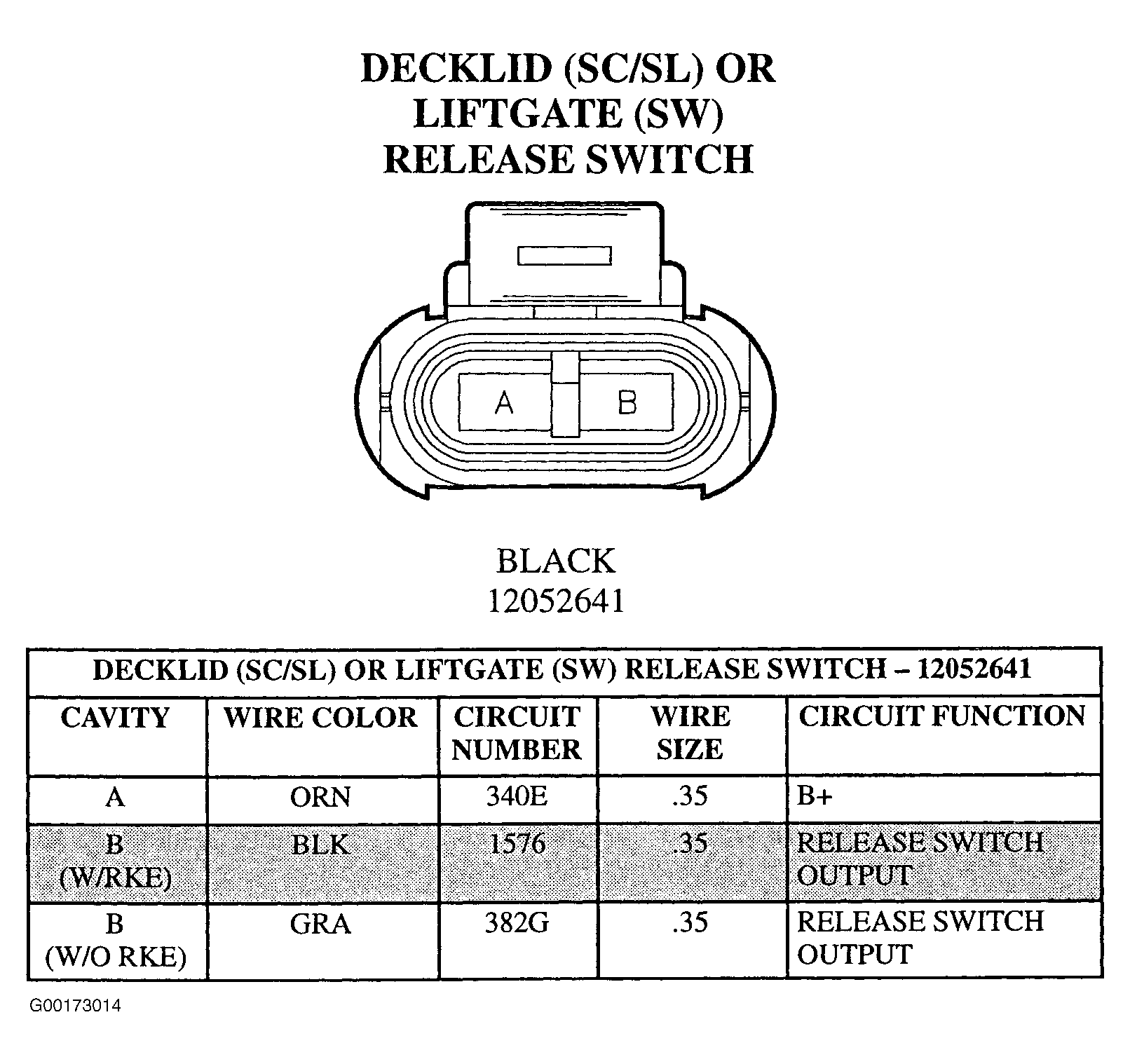

Fig 1: Decklid (SC/SL) Or Liftgate (SW) Release Switch - 2-Pin Connector (12052641) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
