Saturn
›
1997
›
SW1 Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
HVAC Control Head
›
HVAC Control Head (Fan Switch)
HVAC Control Head (Fan Switch)

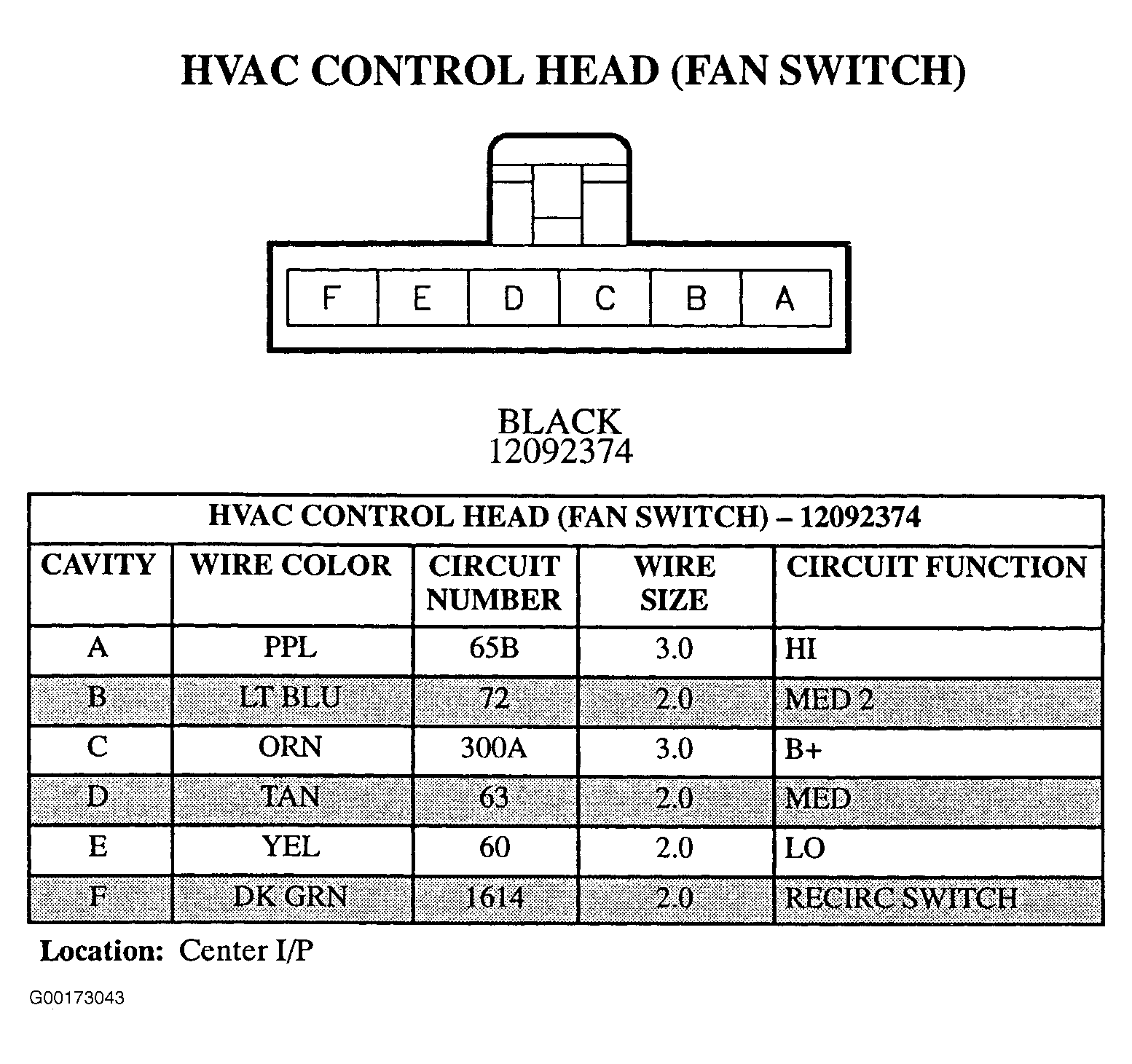

Fig 1: HVAC Control Head (Fan Switch) - 6-Pin Connector (12092374) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
