UNDERHOOD Junction Block - Forward Lamp

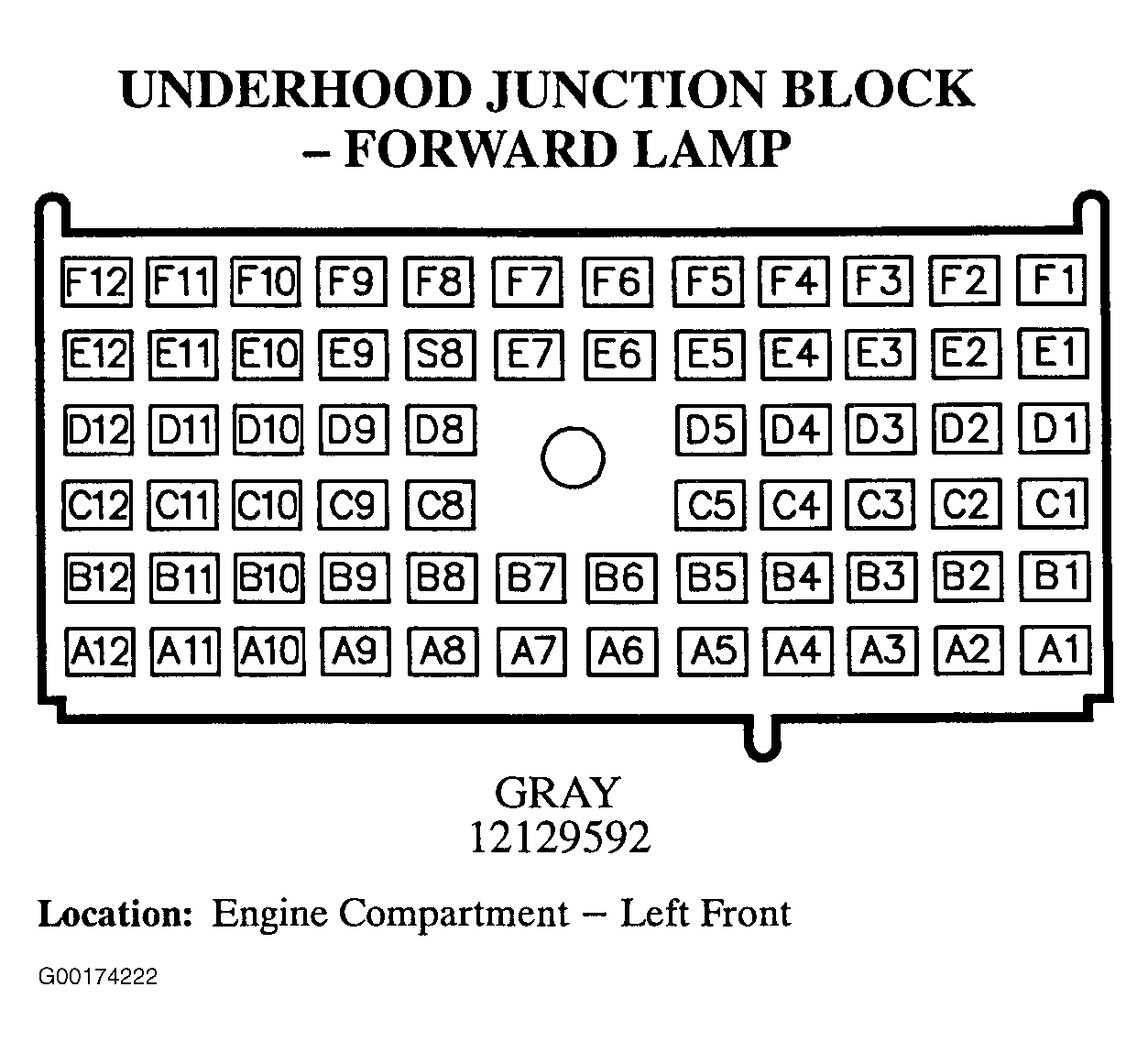

Fig 1: Underhood Junction Block - Forward Lamp (Connector) - 68-Pin Connector (12129592) - Gray (1 Of 3)
G00174222Courtesy of GENERAL MOTORS CORP.

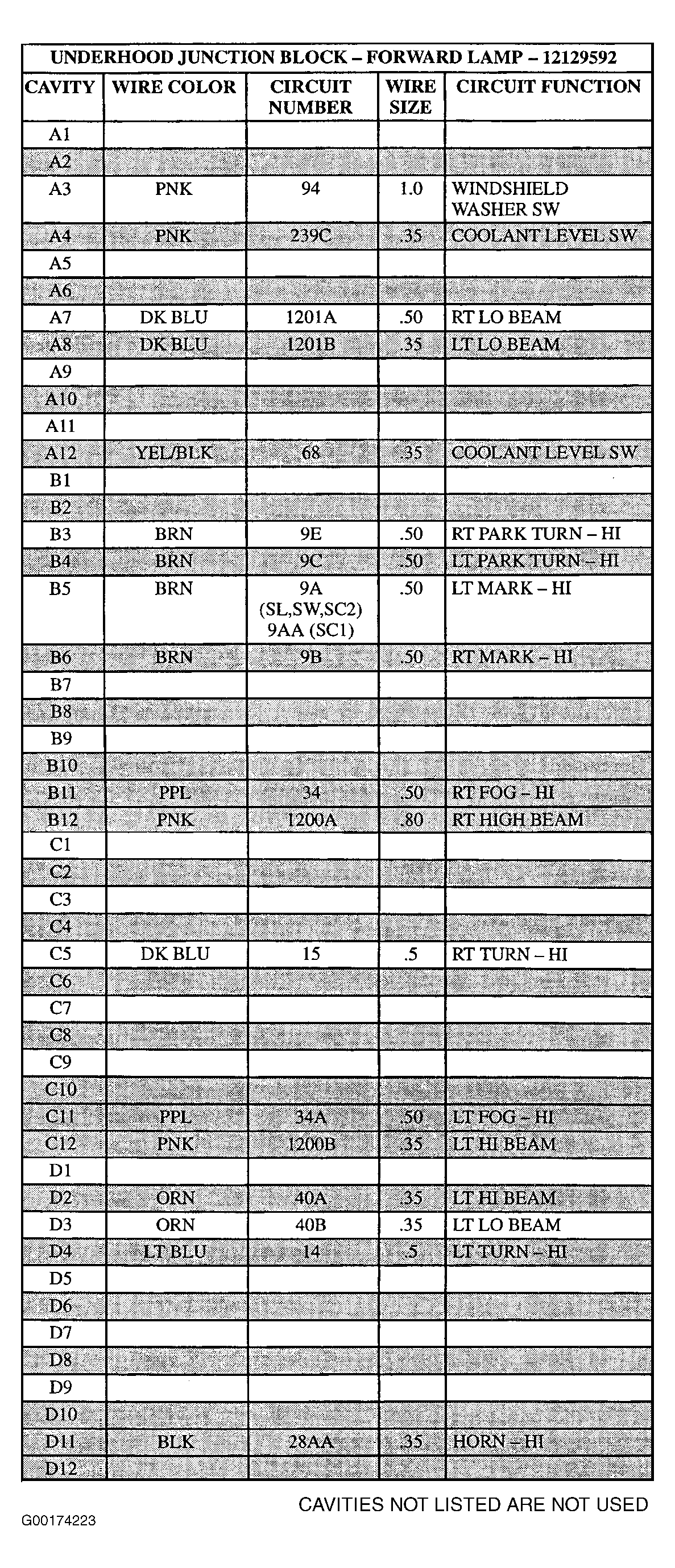

Fig 2: Underhood Junction Block - Forward Lamp (Chart) - 68-Pin Connector (12129592) - Gray (2 Of 3)
G00174223Courtesy of GENERAL MOTORS CORP.

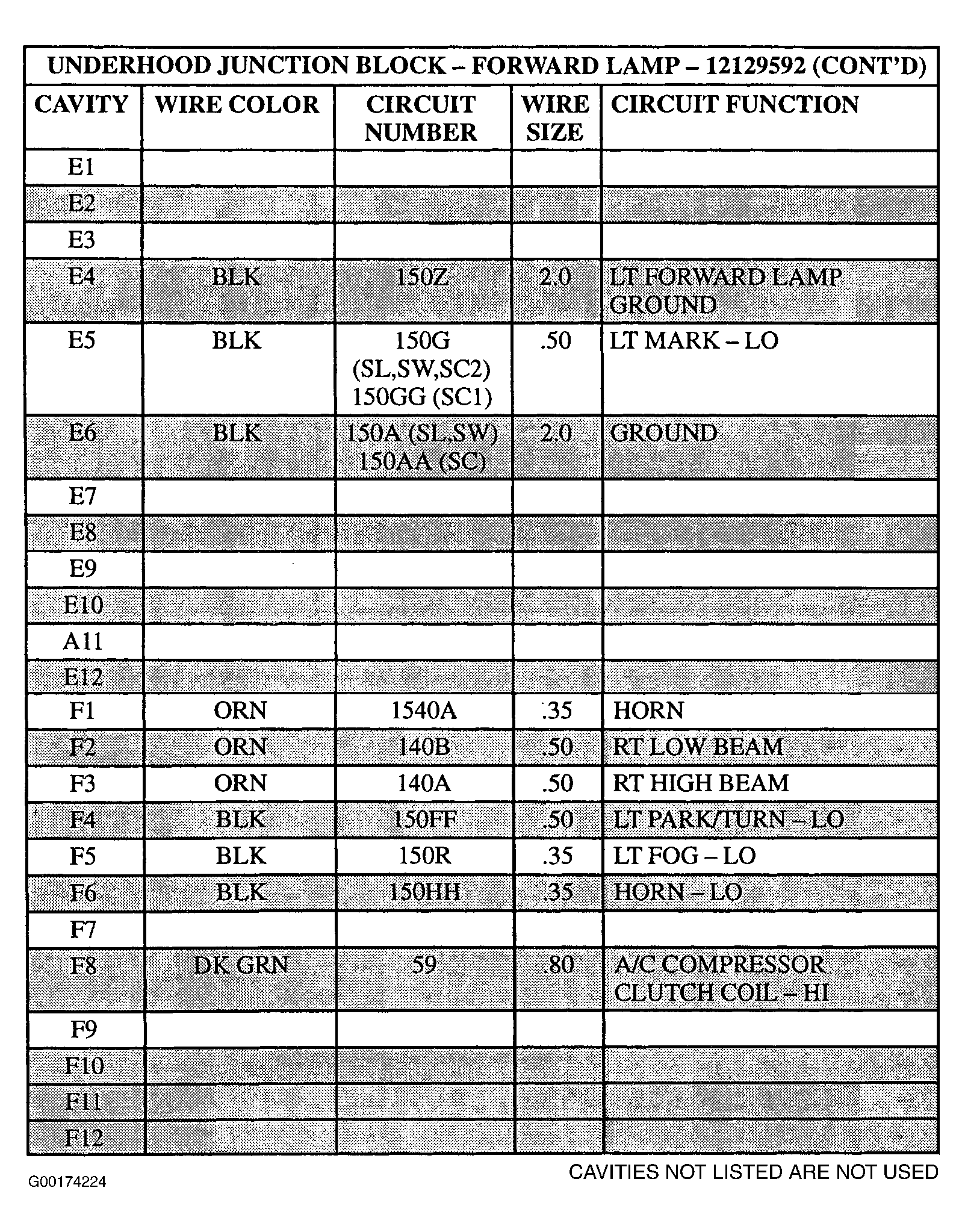

Fig 3: Underhood Junction Block - Forward Lamp (Chart) - 68-Pin Connector (12129592) - Gray (3 Of 3)
G00174224Courtesy of GENERAL MOTORS CORP.
