Outside Rearview Mirror Wiring Schematics
Outside Rearview Mirror Wiring Schematics

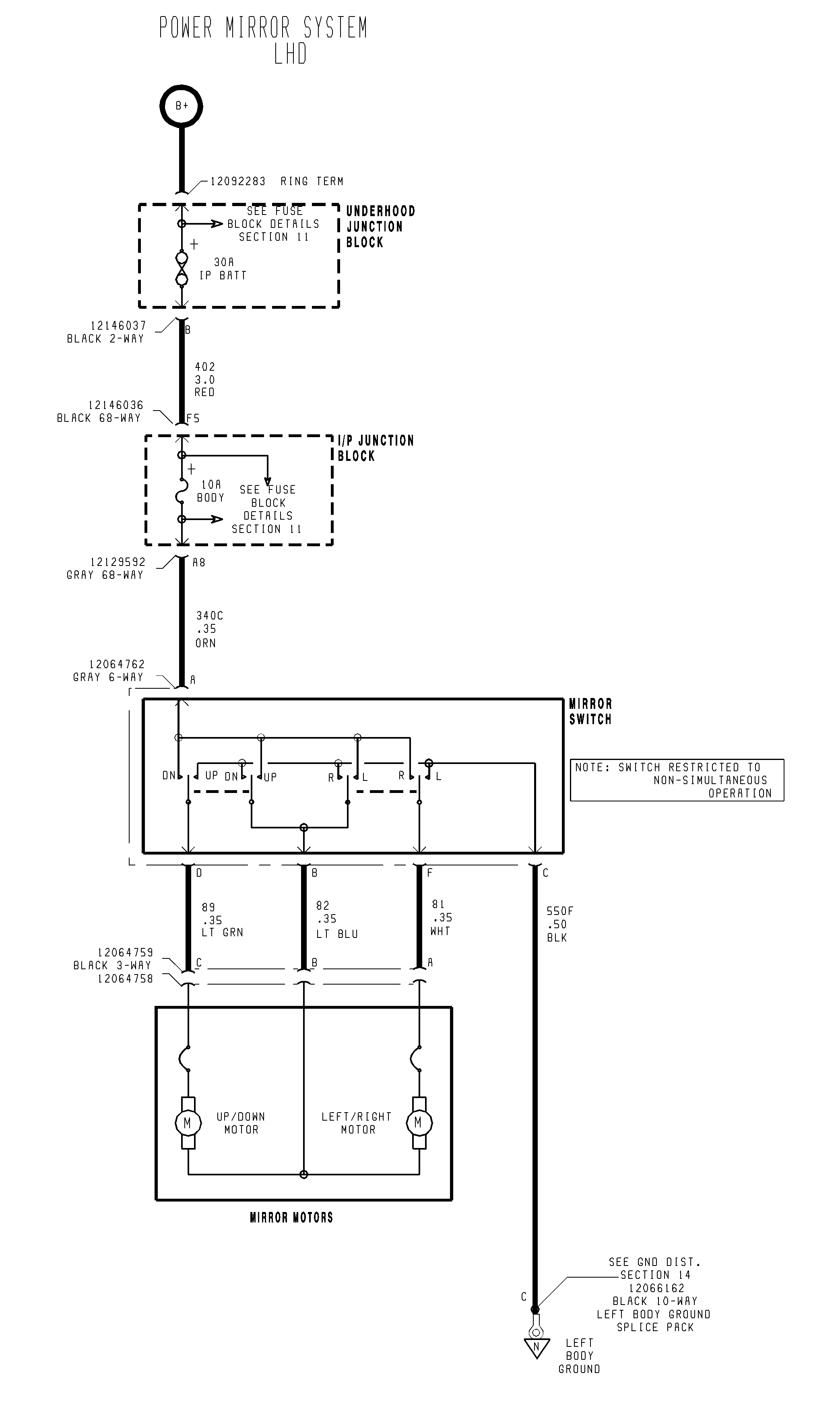

Fig 1: Outside Rearview Mirror Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
