Abs Connectors
›
Abs Wheel Speed Sensors
Abs Wheel Speed Sensors

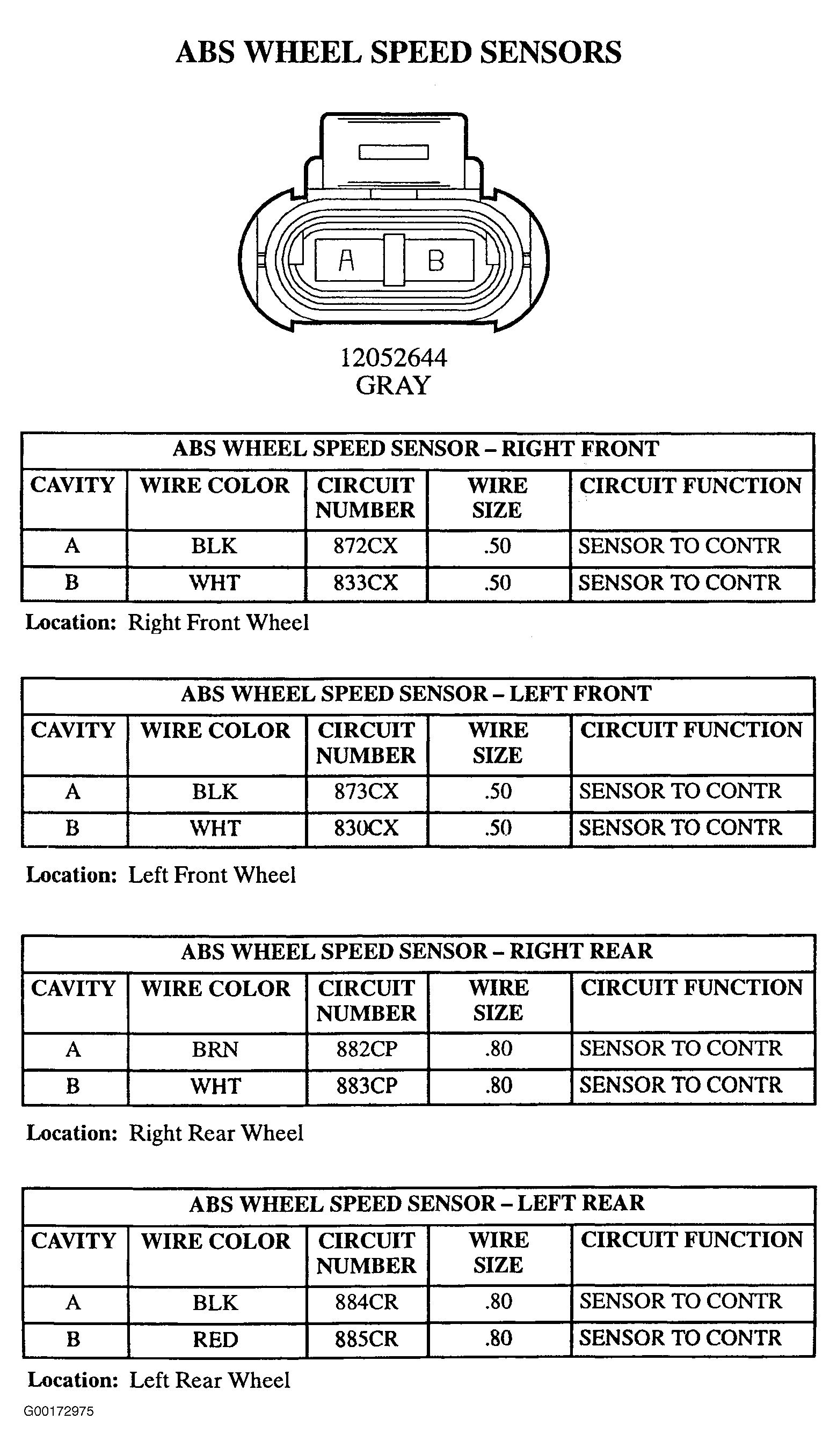

Fig 1: ABS Wheel Speed Sensors - 2-Pin Connector (12052644) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
