BTSI Solenoid

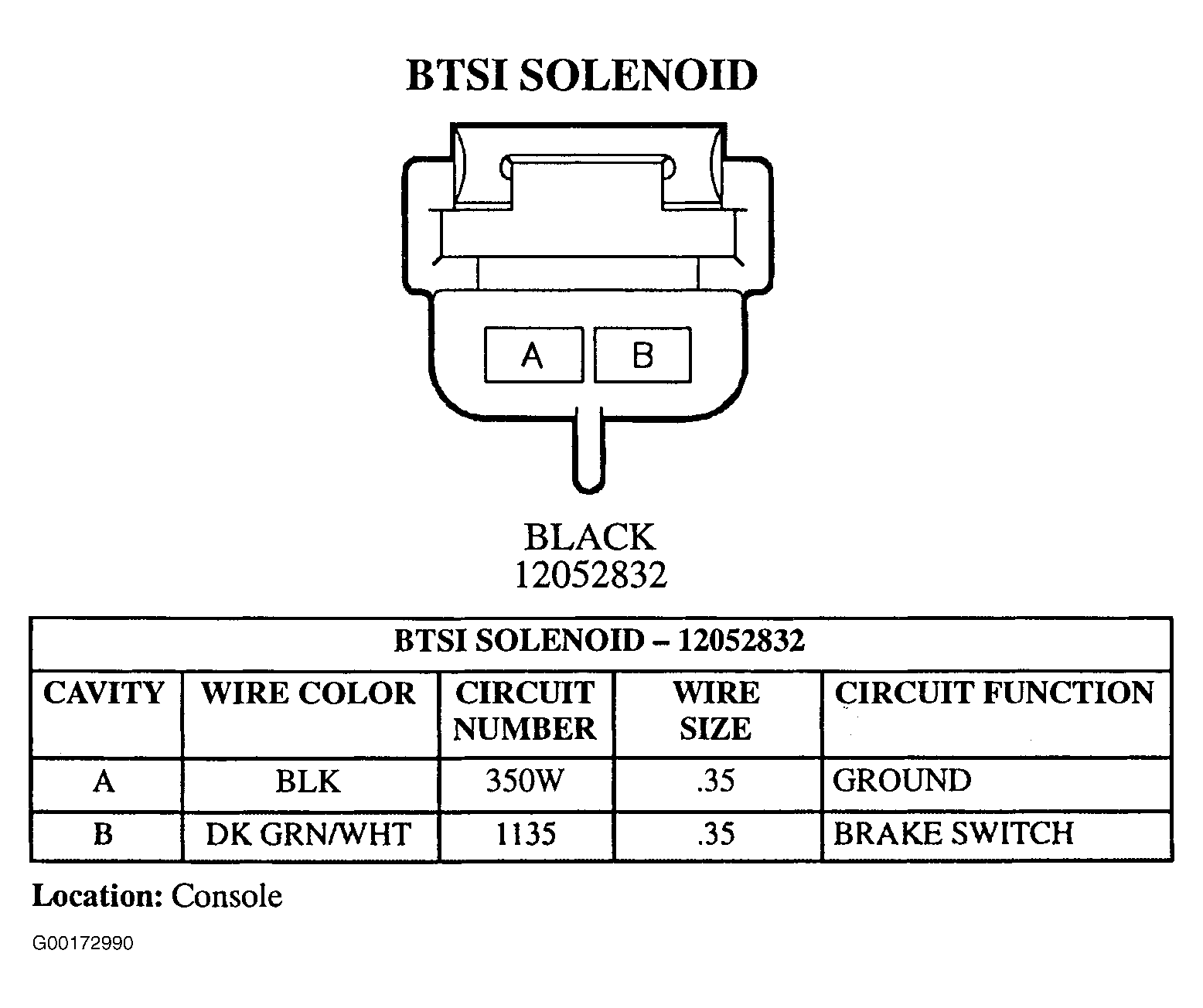

Fig 1: BTSI Solenoid - 2-Pin Connector (12052832) - Black
G00172990Courtesy of GENERAL MOTORS CORP.
