Backup Lamp - Coupe
Backup Lamp - Coupe

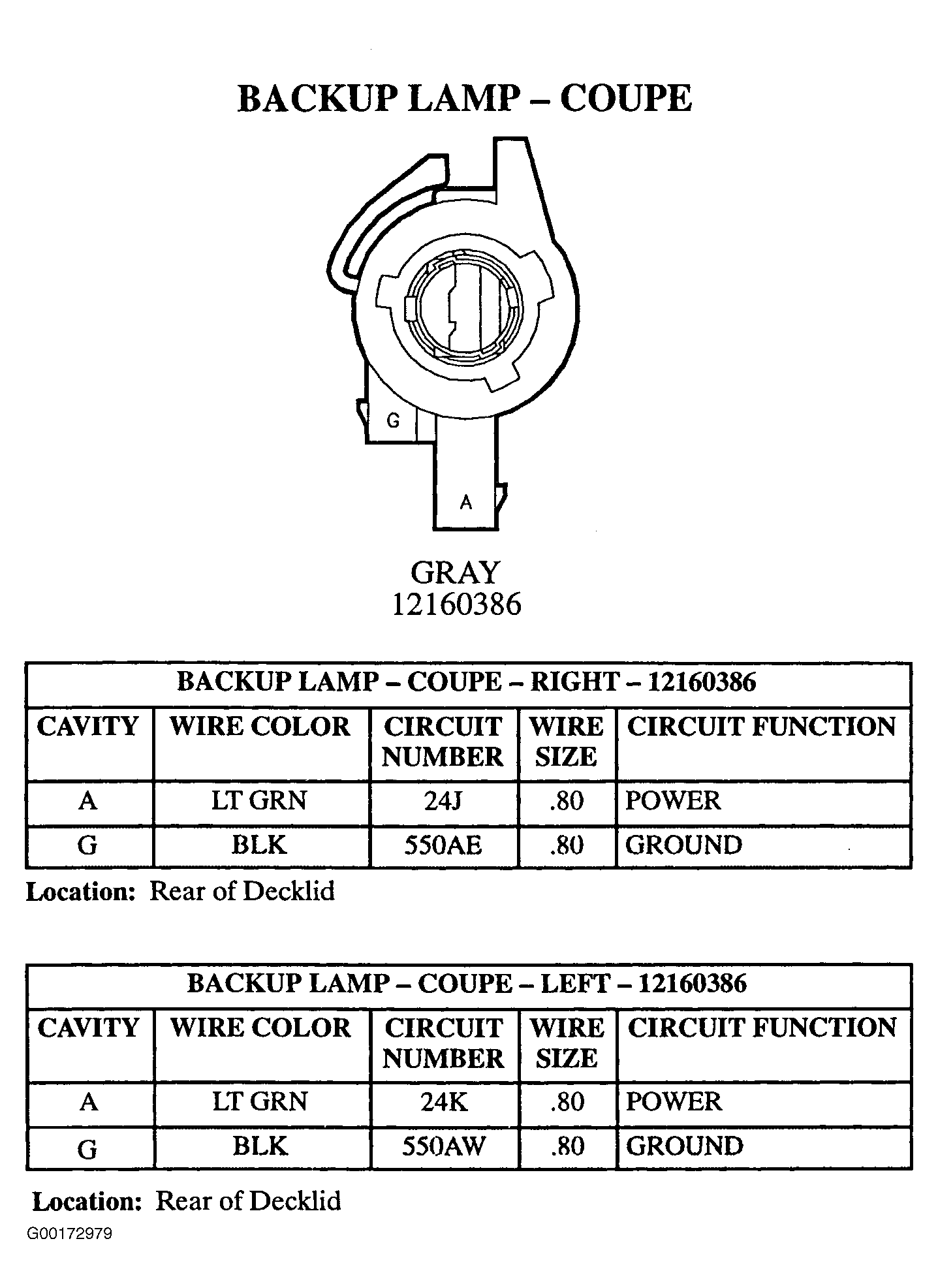

Fig 1: Backup Lamp (Coupe) - 2-Pin Connector (12160386) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
