Connector Identification
›
Door Connectors
›
Door Lock Switch
Door Lock Switch

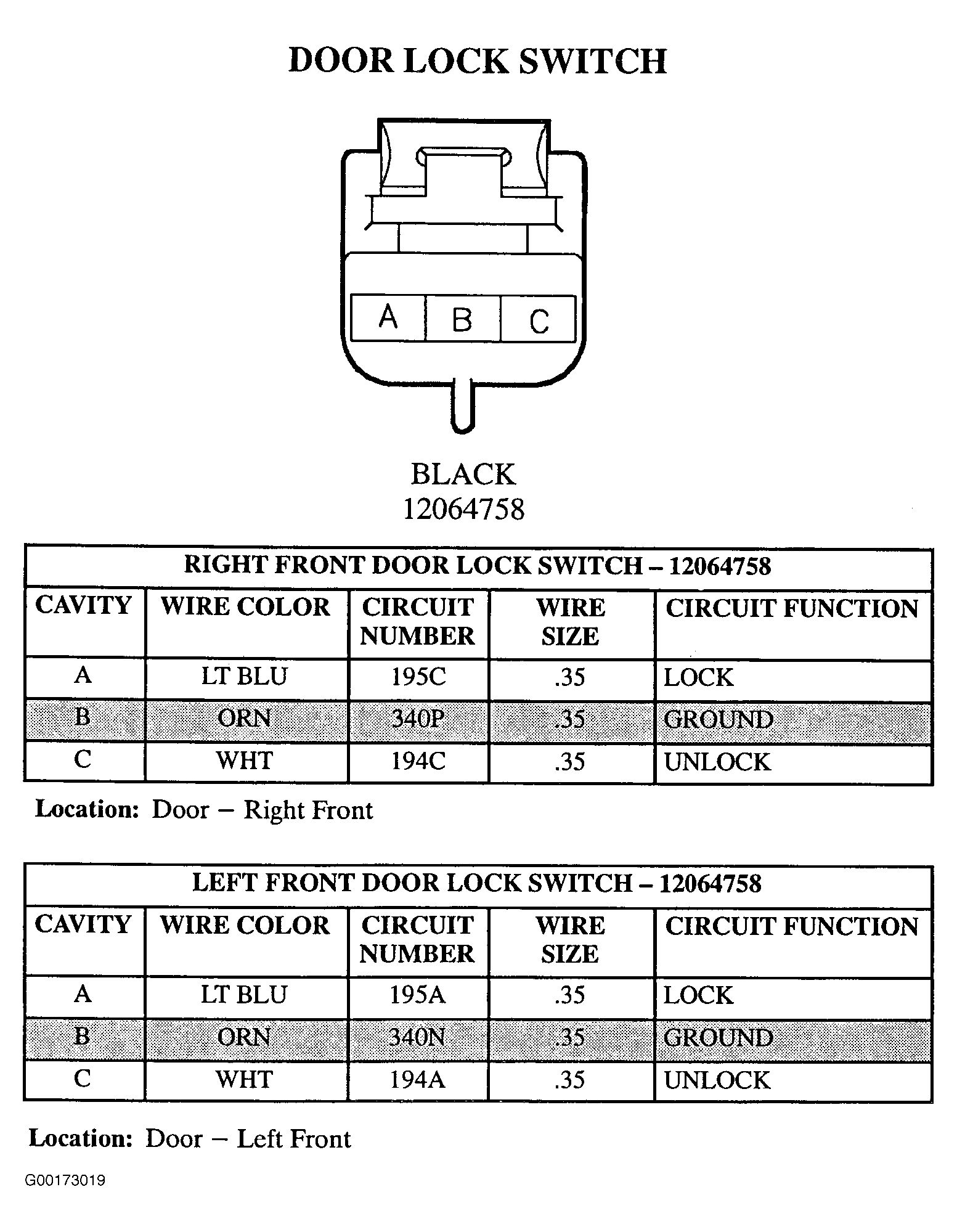

Fig 1: Door Lock Switch - 3-Pin Connector (12064758) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
