Saturn
›
1997
›
SW2 Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Identification
›
Driver Seat Belt Switch
Driver Seat Belt Switch

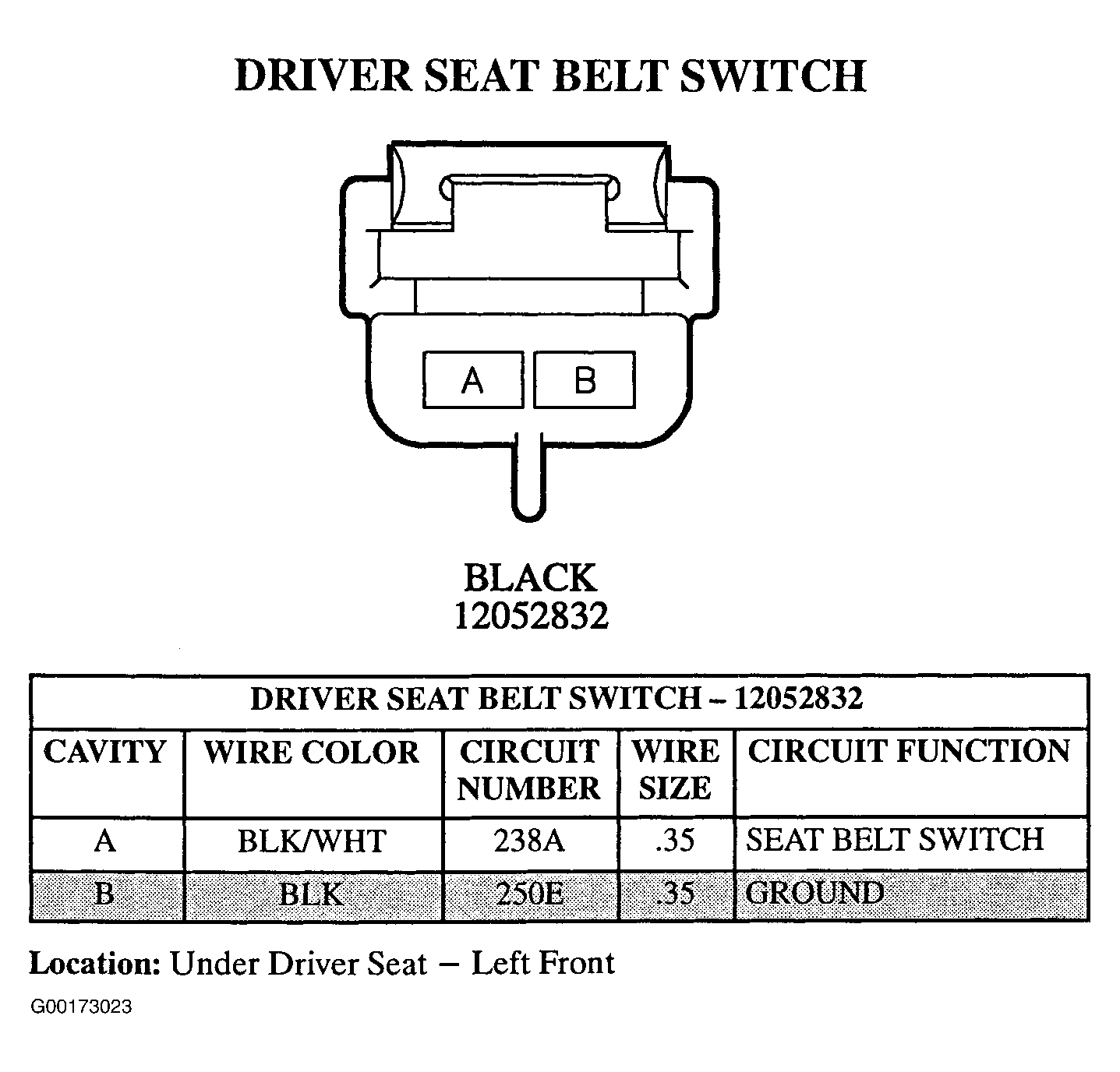

Fig 1: Driver Seat Belt Switch - 2-Pin Connector (12052832) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
