Powertrain Control Module (PCM) Connector J1

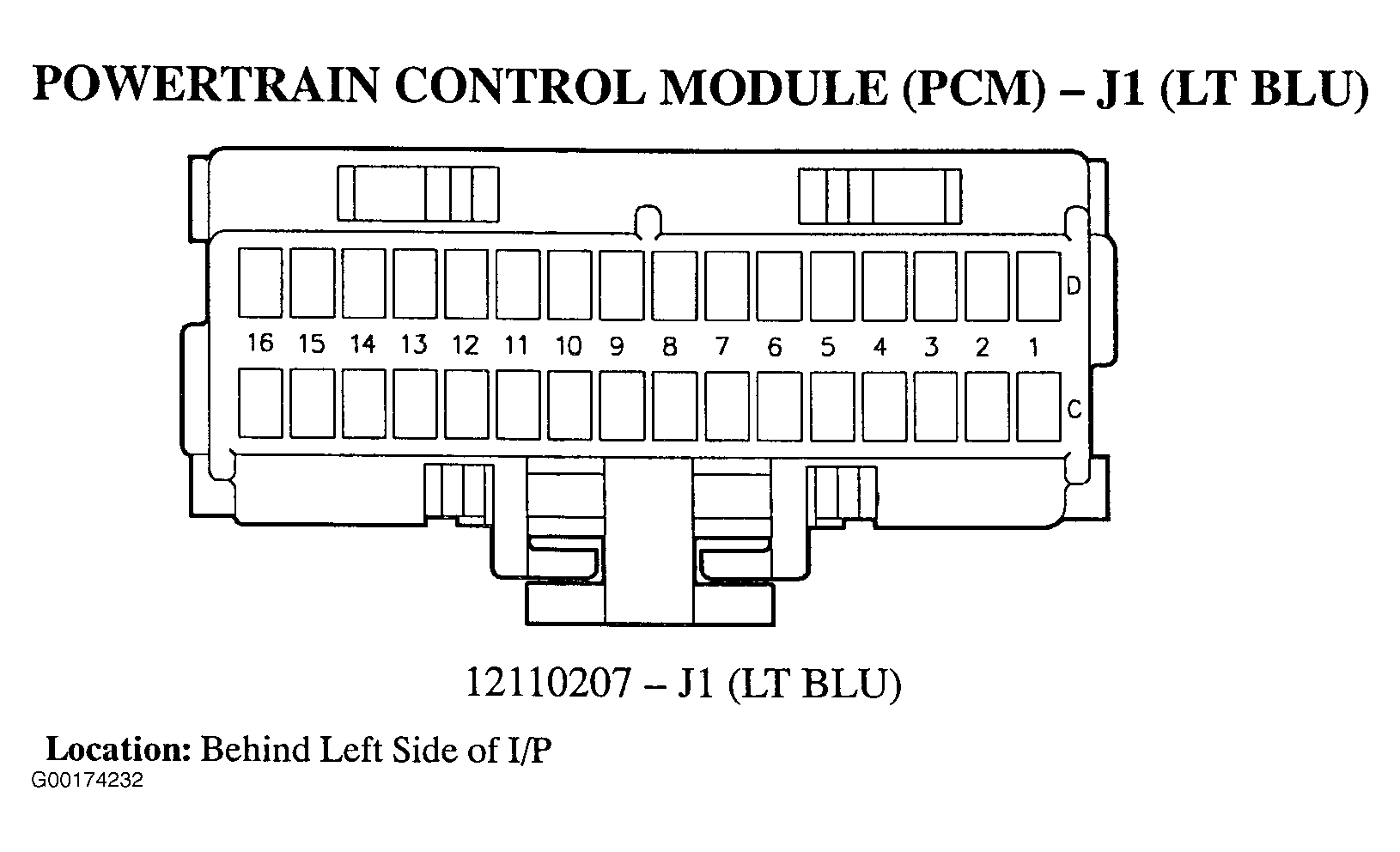

Fig 1: Powertrain Control Module (PCM) J1 Connector - 32-Pin Connector (12110207) - Light Blue (1 Of 3)
G00174232Courtesy of GENERAL MOTORS CORP.

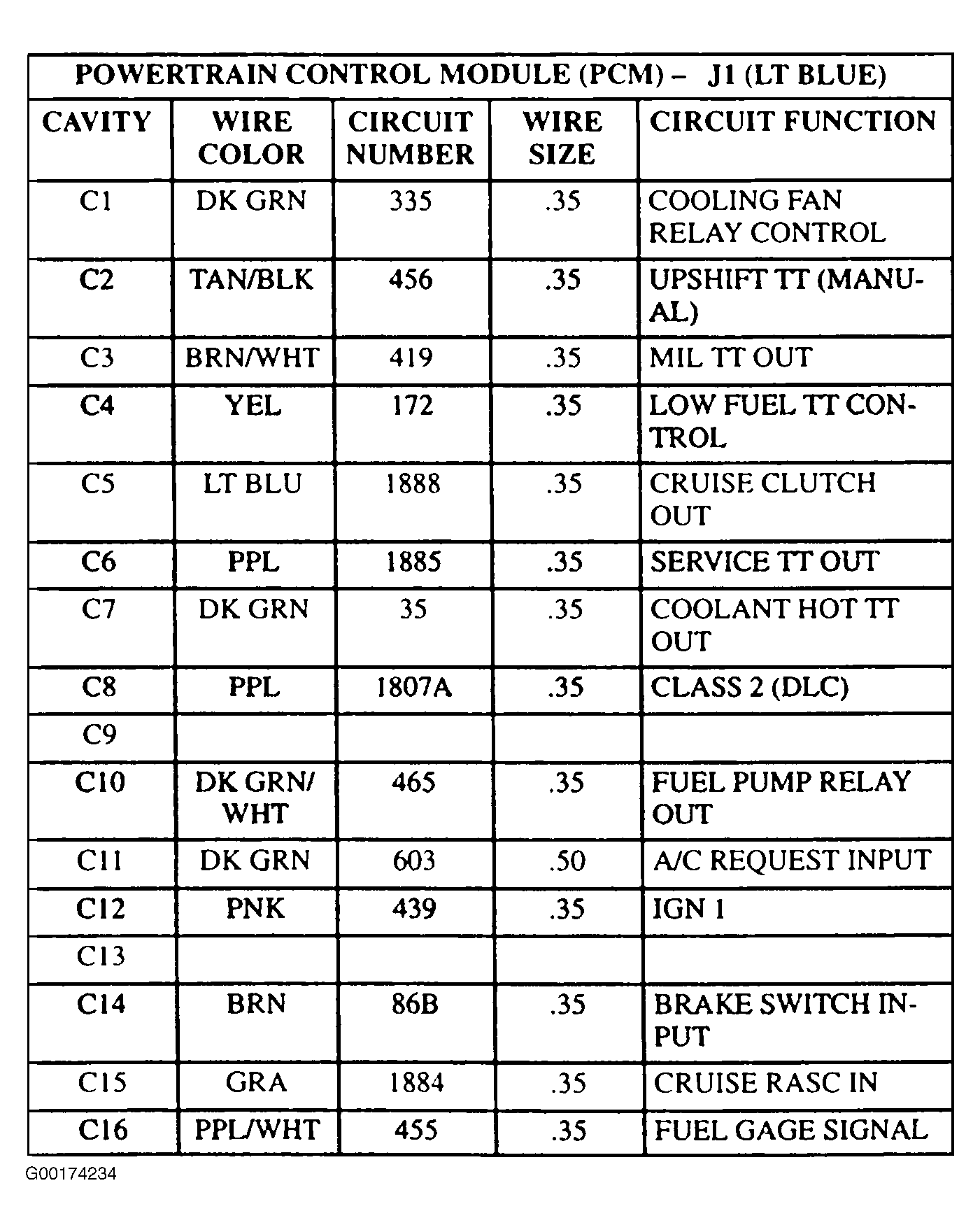

Fig 2: Powertrain Control Module (PCM) J1 Connector (Circuit Identification Chart) - 32-Pin Connector (12110207) - Light Blue (2 Of 3)
G00174234Courtesy of GENERAL MOTORS CORP.

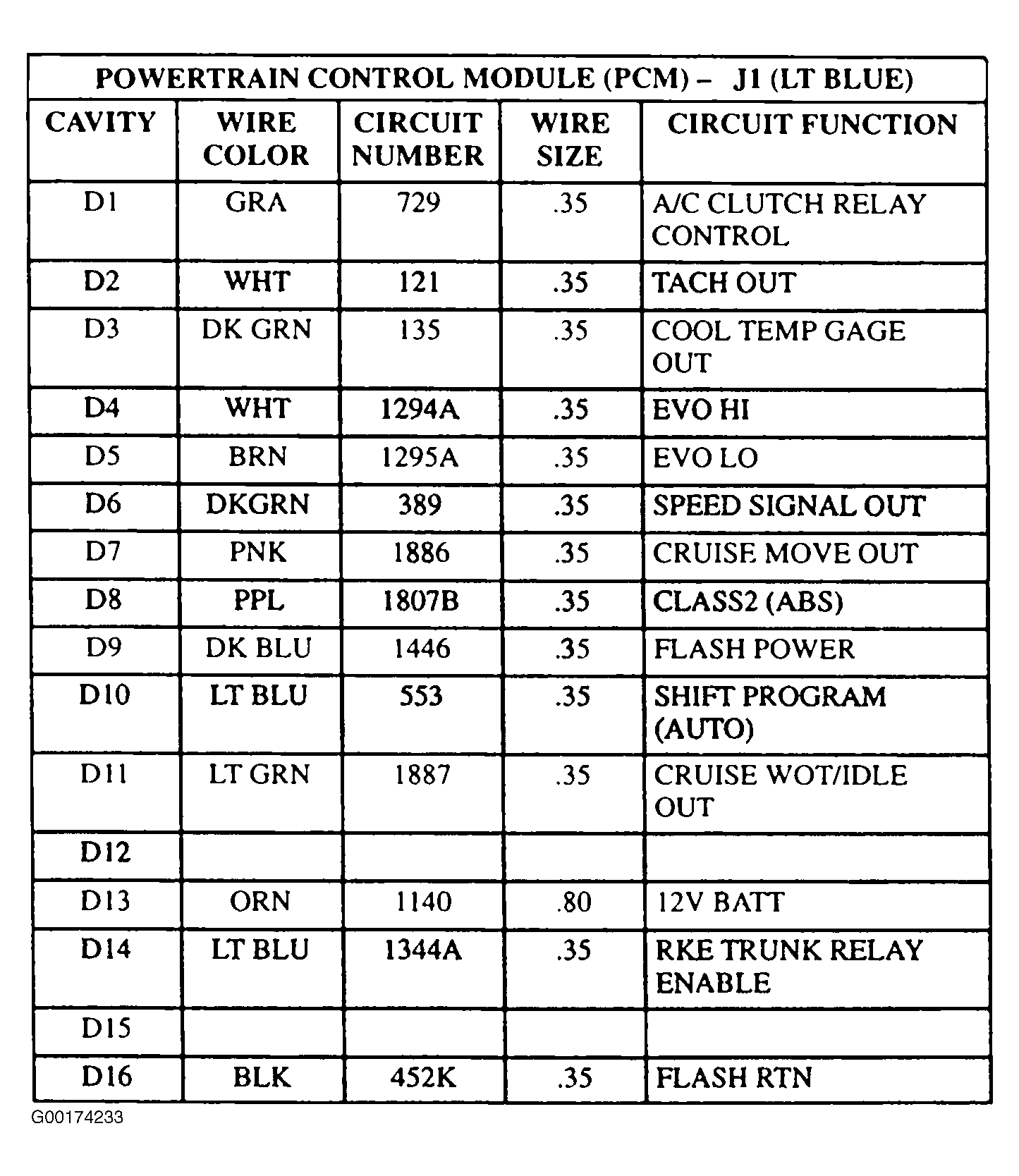

Fig 3: Powertrain Control Module (PCM) J1 Connector (Circuit Identification Chart - 32-Pin Connector (12110207) - Light Blue (3 Of 3)
G00174233Courtesy of GENERAL MOTORS CORP.
