"J" Body
- With ignition switch turned to ON position and gearshift lever in Neutral, ensure ignition switch cannot be turned to LOCK position.
- With gearshift lever in "P" position and ignition switch in LOCK position, gearshift lever should not be allowed movement to other gear positions and ignition key should be removable from lock cylinder.

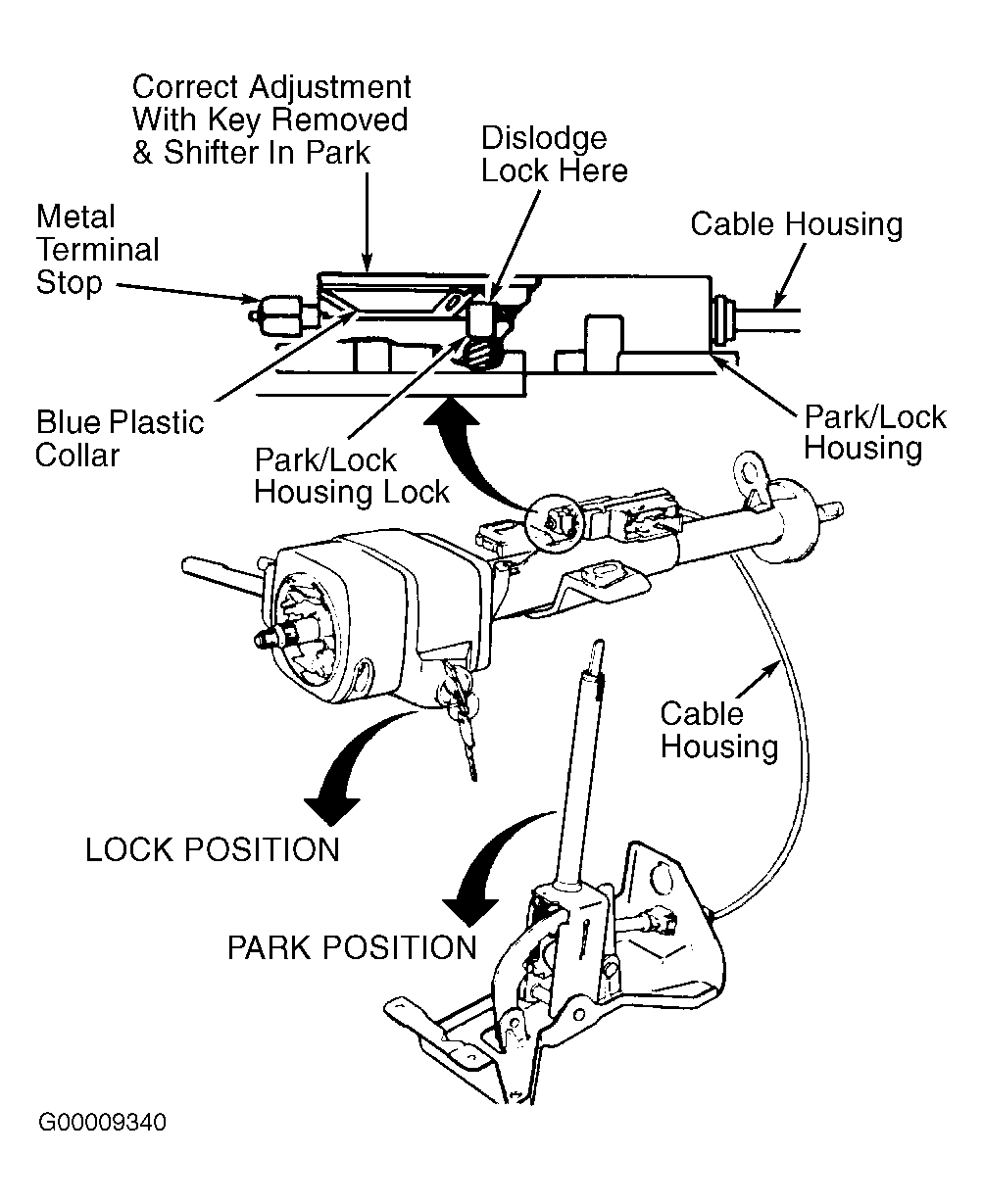

- If system does not perform as described, place gearshift lever in "P" position and dislodge park lock cable housing lock at ignition switch. Adjust outer cable housing to position Blue plastic collar in park lock housing. See Fig 1.
- Ensure no gap is present between metal terminal stop at end of cable and Blue plastic collar. Blue plastic collar should be flush or less than .04" (1.0 mm) recessed in park lock housing. Hold cable in position and seat park lock cable housing lock. Check park lock cable operation.
Courtesy of GENERAL MOTORS CORP.
