Right Instrument Panel Fuse Block

Right instrument panel fuse block is located under passenger's side of instrument panel, on kick panel. See Figure .

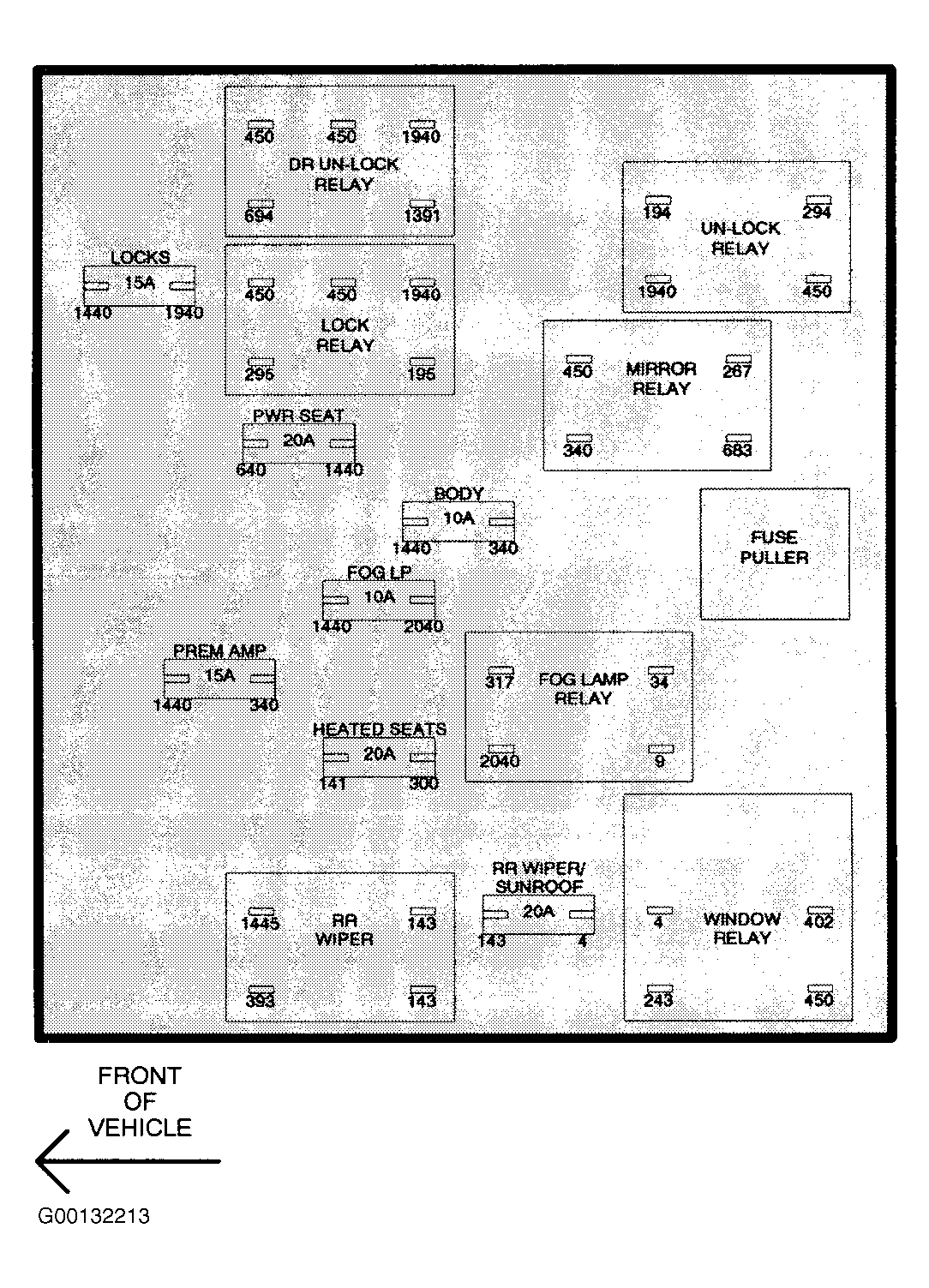

Fig 1: Identifying Right Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

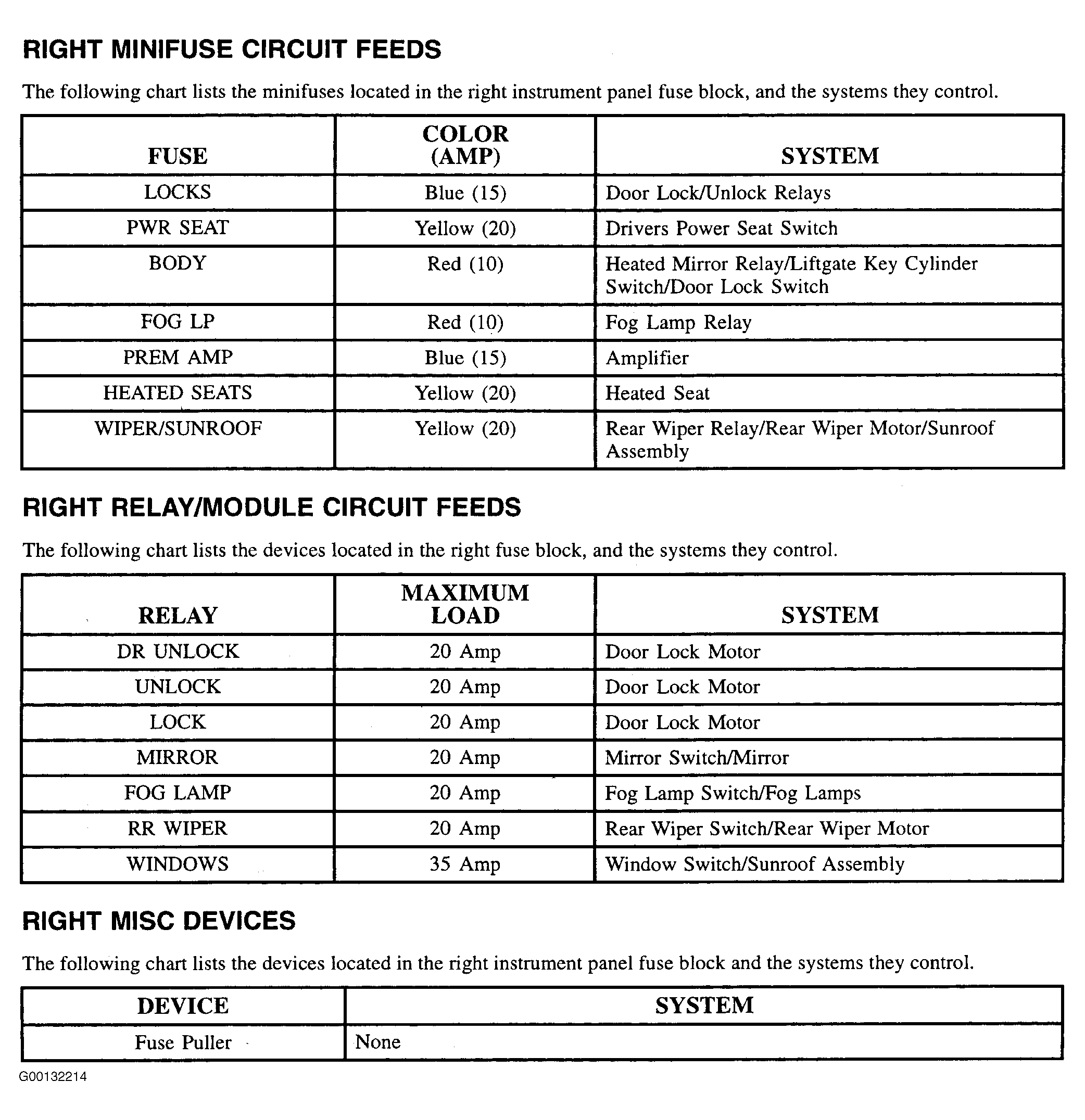

Fig 2: Right Instrument Panel Fuse Block Legend

Courtesy of GENERAL MOTORS CORP.
