Differential Assembly - Component Locations
Differential Assembly - Component Locations

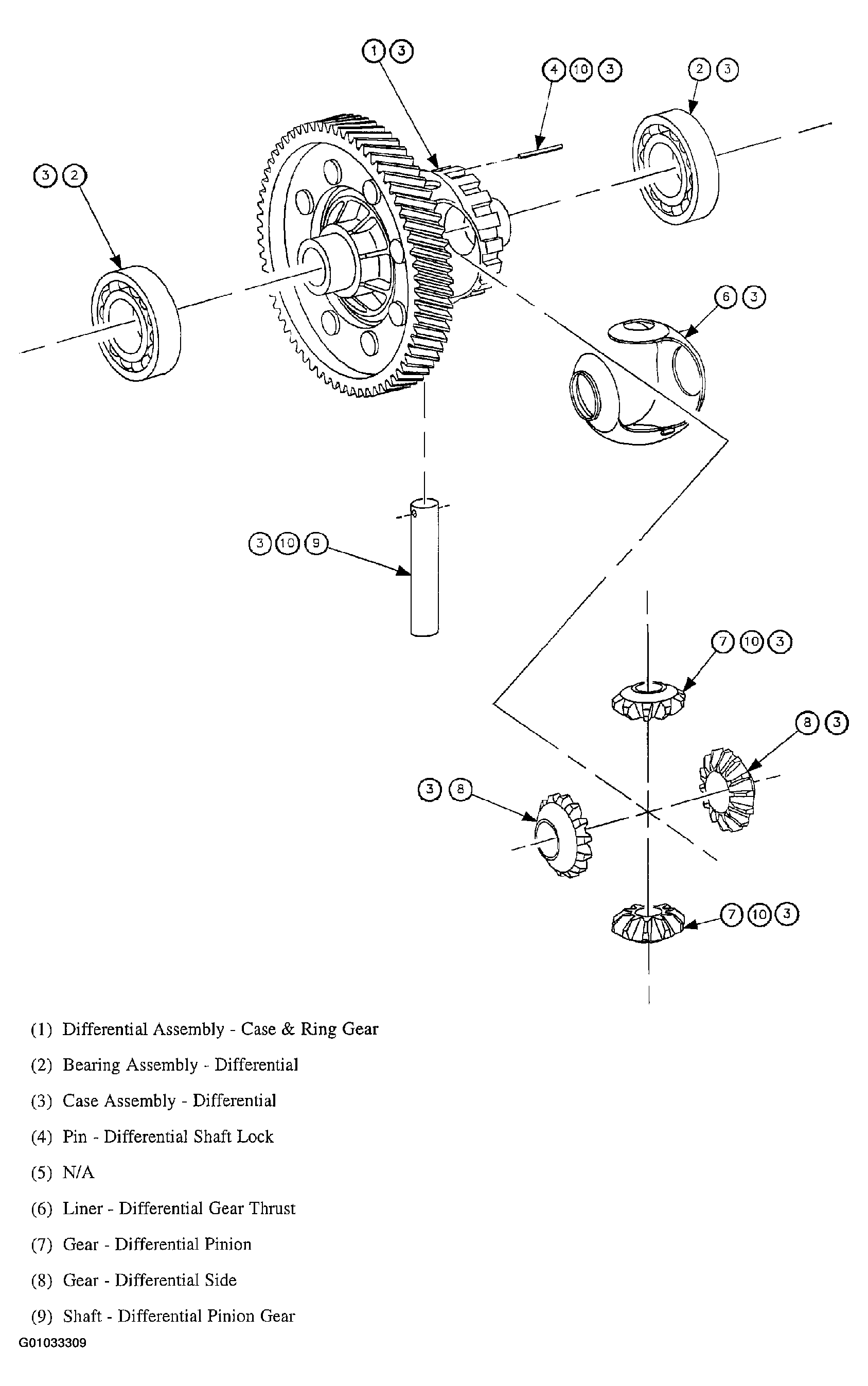

Fig 1: Exploded View Of Differential Shaft
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
