Muffler Hanger: Removal

  1. Raise vehicle squarely on a lift.

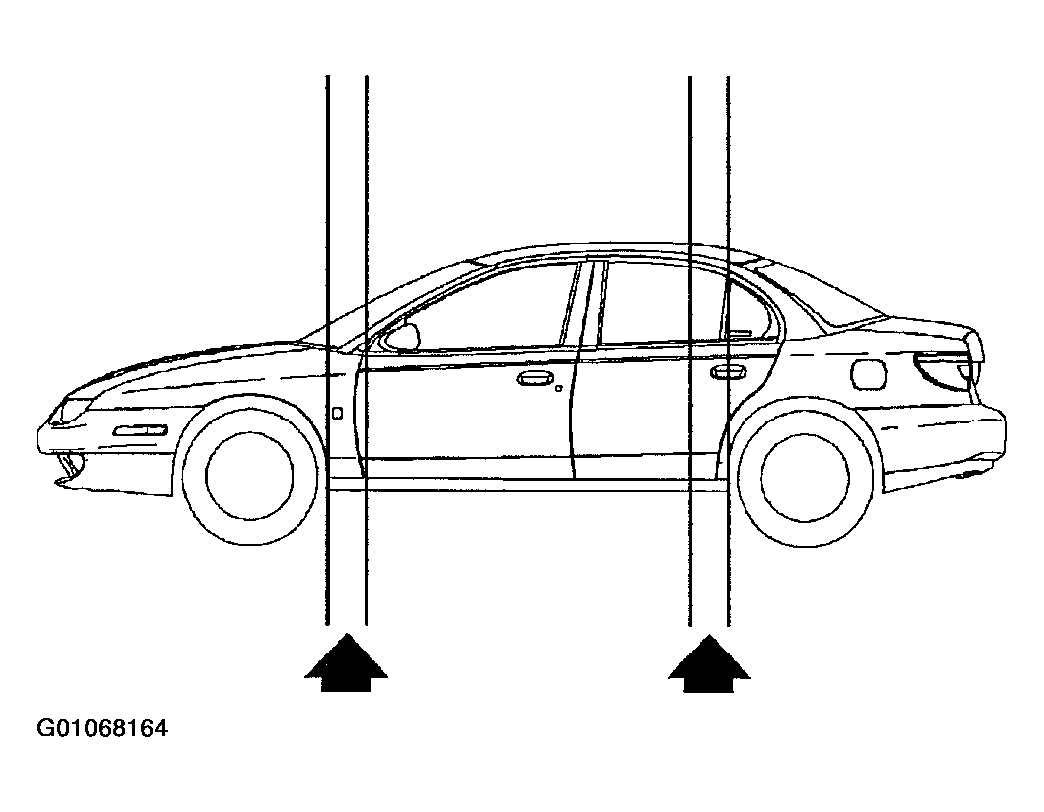

    Fig 1: Vehicle Support Points
    G01068164Courtesy of GENERAL MOTORS CORP.
  2. Remove muffler to muffler hanger bracket bolt.
  3. Remove muffler hanger.

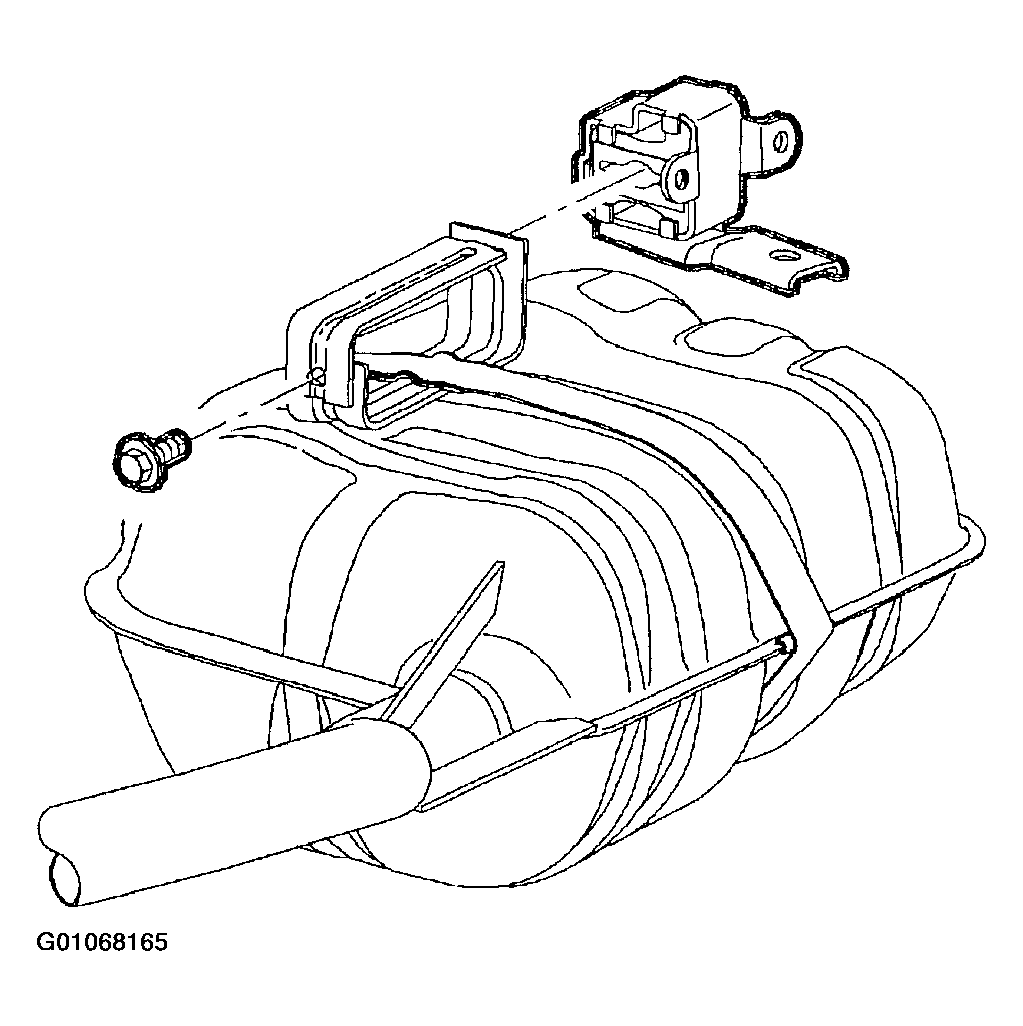

    Fig 2: Muffler Hanger
    G01068165Courtesy of GENERAL MOTORS CORP.
