Fuel System Diagnosis - Fuel Supply Chart
Fuel System Diagnosis - Fuel Supply Chart

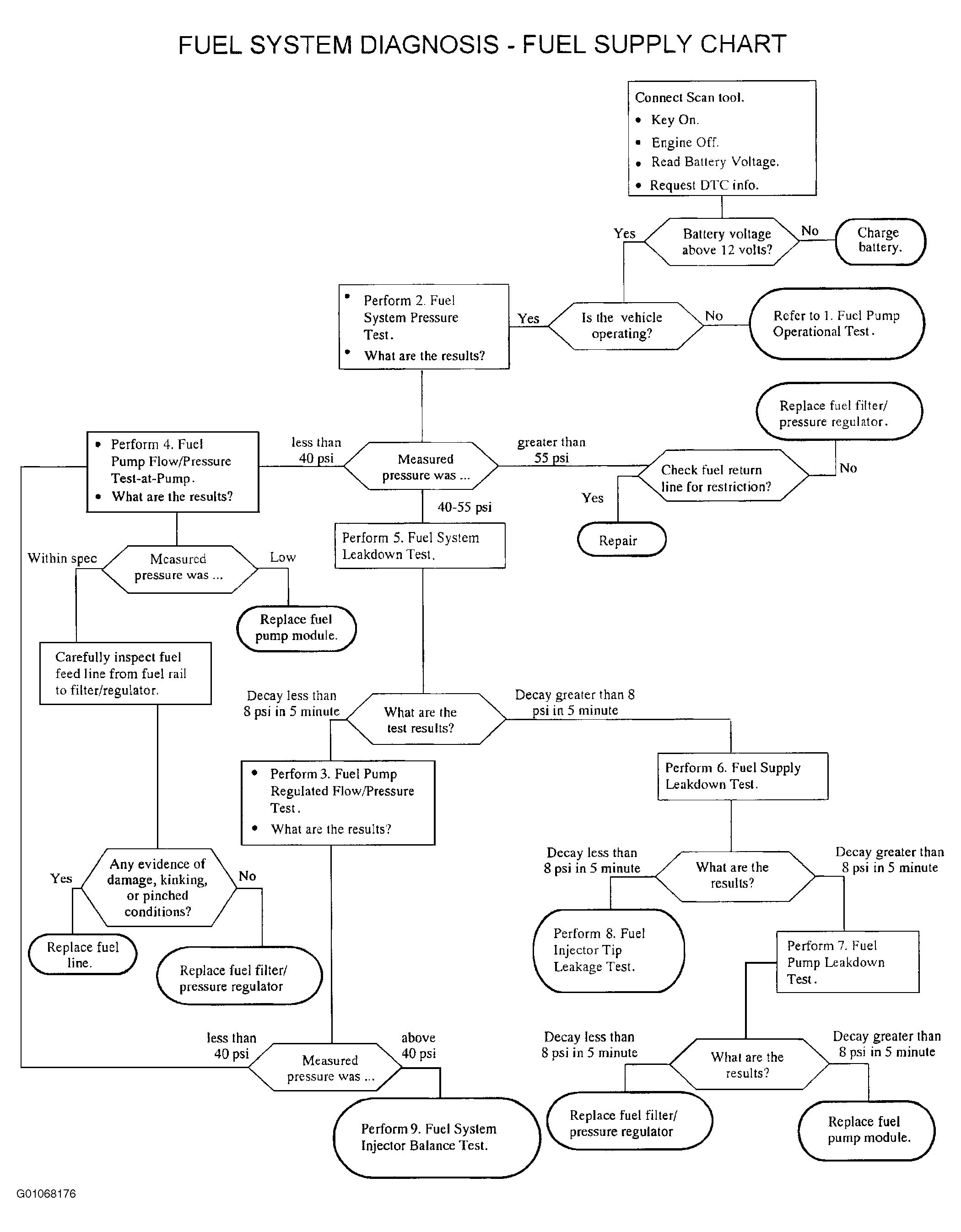

Fig 1: FUEL SYSTEM DIAGNOSIS - FUEL SUPPLY CHART
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
